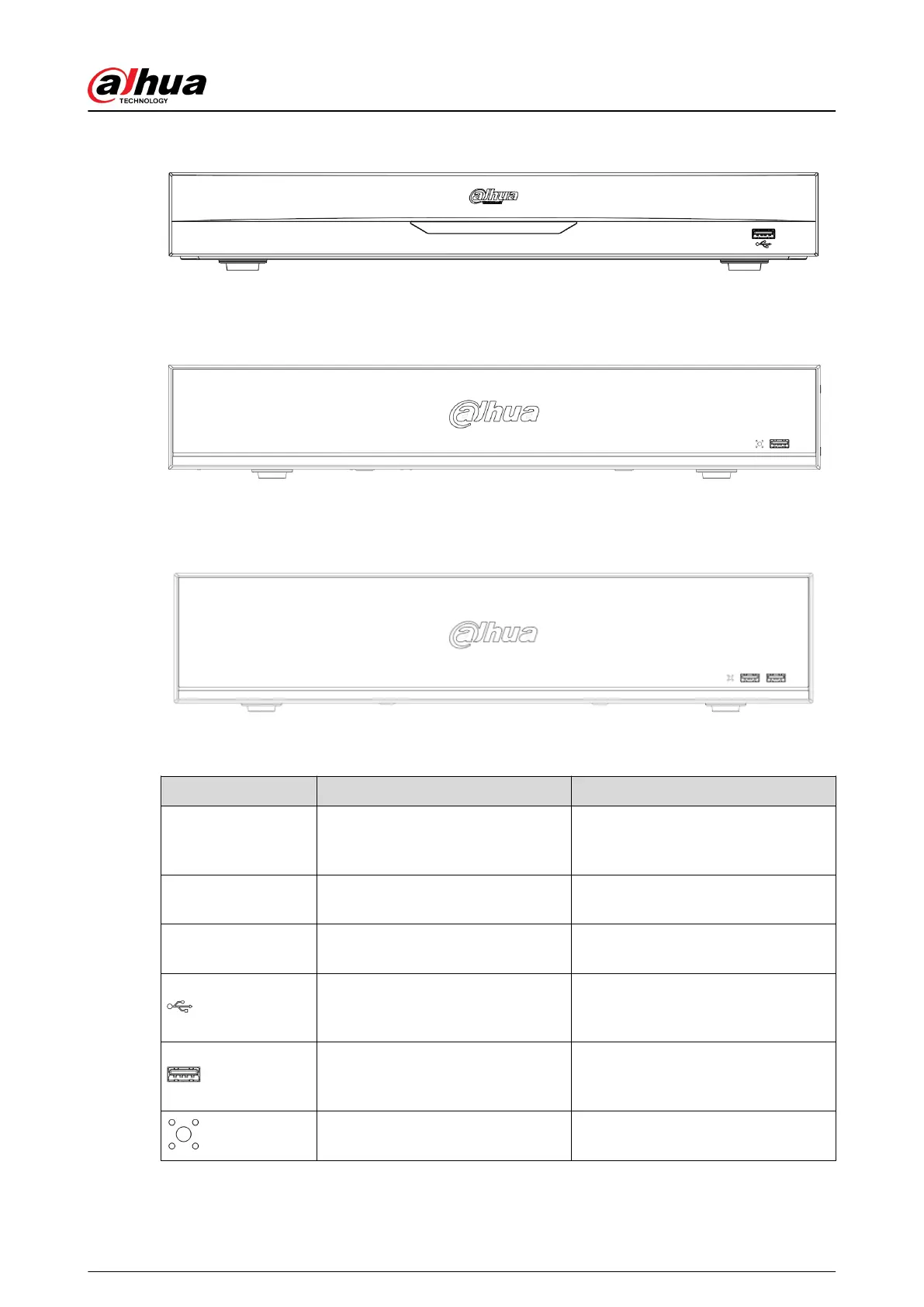

Figure 2-20 Front panel
The NVR54-XI/NVR54-16P-XI front panel is shown as below.
Figure 2-21 Front panel
The NVR58-XI front panel is shown as below.
Figure 2-22 Front panel
Table 2-8 Icons
Icon
Name Function
HDD
HDD status indicator
light
The blue light is on when the HDD
malfunctions.
NET Network status indicator light
The blue light is on when the
network connection is abnormal.
PWR Power status indicator light
The blue light is on when the power
connection is OK.
USB 2.0 port
Connect to peripheral USB 2.0
storage device, mouse, burner and
more.
USB port
Connects to the external devices
such as keyboard, mouse, and USB
storage device.
IR indicator
Receives signals from the remote
control.
User's Manual
14
