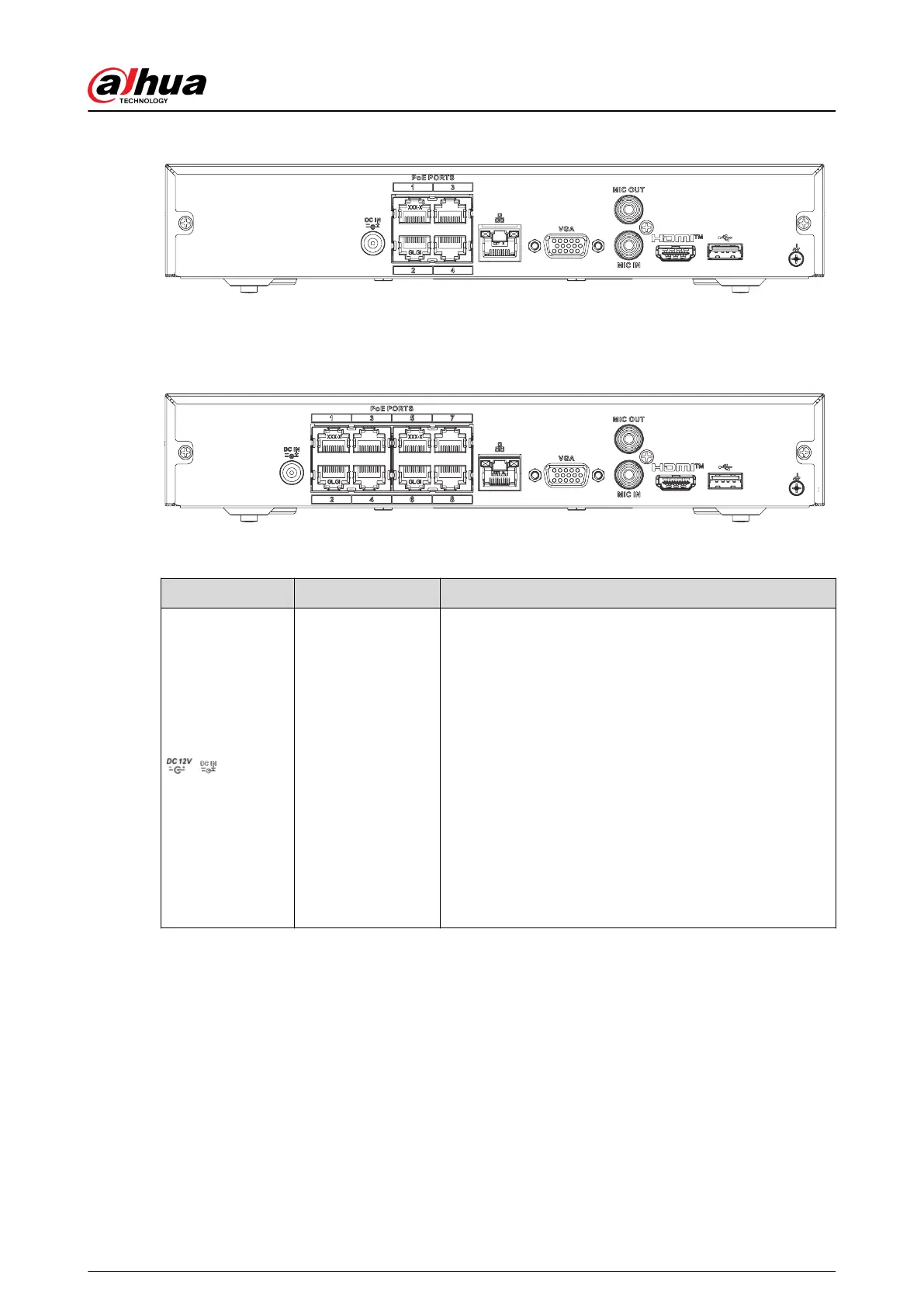

Figure 2-41 Rear panel
The NVR11HS-8P-S3H/NVR21HS-8P-4KS2/NVR41HS-8P-4KS2/NVR41HS-8P-4KS2/L/NVR21HS-8P-S3/
NVR21HS-8P-4KS3/NVR41HS-8P-EI/NVR41HS-8P-4KS3 series rear panel is shown as below.
Figure 2-42 Rear panel
Table 2-18 Ports
Port Name
Connection Function
/
Power input port
Power socket.
●
For NVR11HS-P-S3H/NVR21HS-4KS2/NVR41HS-4KS2/
NVR41HS-EI/NVR41HS-4KS3 series, input 12 VDC/2 A.
●
For NVR11HS-P-S3H/NVR21HS-P-4KS2/
NVR41HS-4KS2 series, input 48 VDC/1.25 A.
●
For NVR11HS-8P-4KS2/NVR21HS-8P-4KS2/
NVR41HS-4KS2 series, input 48 VDC/2 A.
●
For NVR21HS-4KS3, input 12 VDC/1.5 A.
●
For NVR21HS-P-4KS3, input 53 VDC/1.22 A.
●
For NVR21HS-8P-4KS3, input 53 VDC/1.81 A.
●
For NVR41HS-P-EI/NVR41HS-P-4KS3 series, input 53
VDC/1.22 A.
●
For NVR41HS-8P-EI/NVR41HS-8P-4KS3 series, input
53 VDC/1.81 A.
User's Manual
26
