Dahua NVR52-4KS2 SERIES User Manual

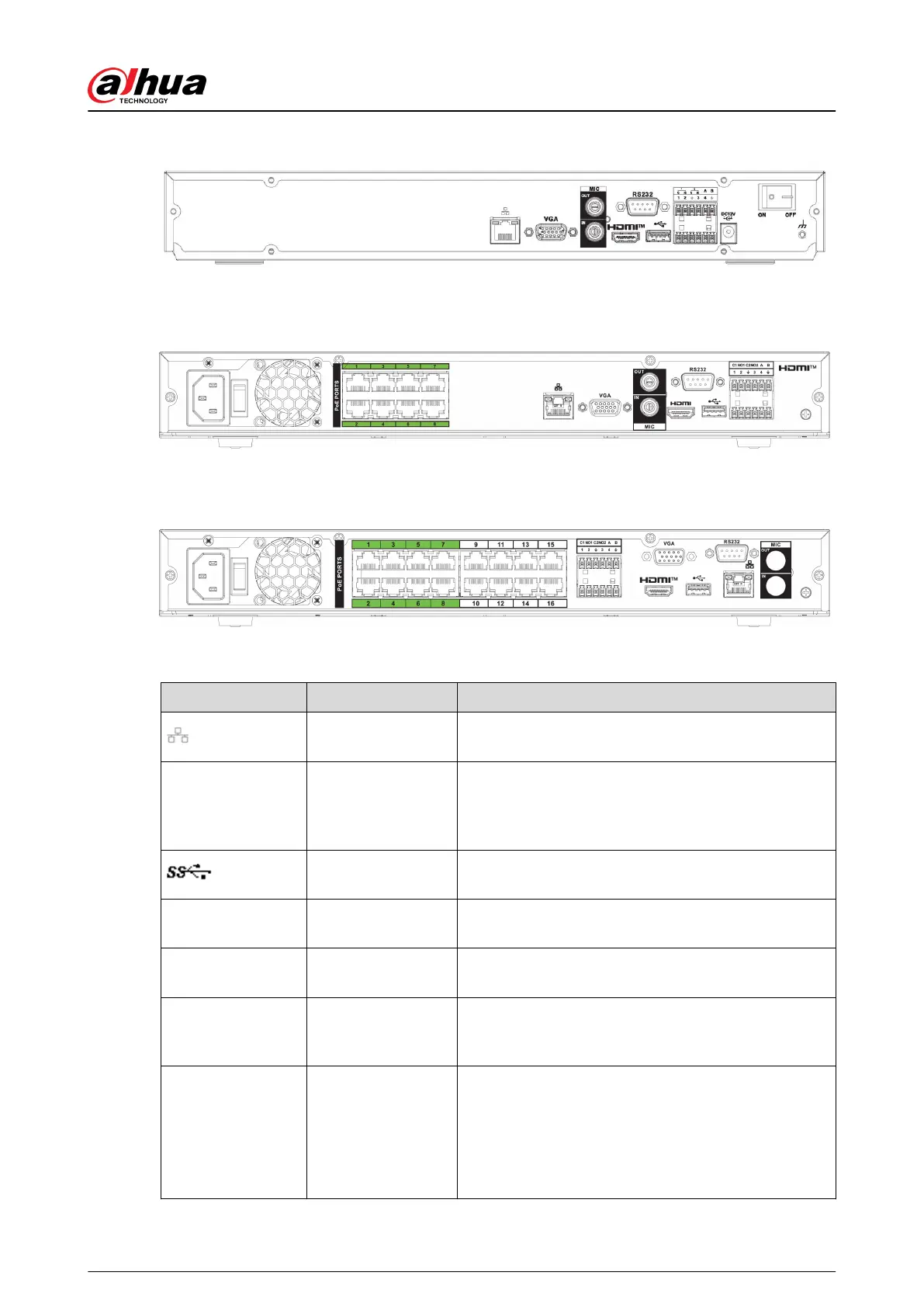

Figure 2-58 Rear panel
The NVR52-8P-XI series rear panel is shown as below.
Figure 2-59 Rear panel
The NVR52-16P-XI series rear panel is shown as below.
Figure 2-60 Rear panel
Table 2-21 Ports
Icon
Port Name Function
Network port
10/100/1000 Mbps self-adaptive Ethernet port.
Connect to the network cable.
HDMI
High Denition
Media Page
High denition audio and video signal output port. It
transmits uncompressed high denition video and
multiple-channel data to the HDMI port of the display
device. HDMI version is 1.4.
USB port
Connect to mouse, USB storage device, USB burner
and more.
RS-232 RS-232 debug COM
It is for general COM debug to congure IP address or
transfer transparent COM data.
VGA
VGA video output
port
VGA video output port. Output analog video signal. It
can connect to the monitor to view analog video.
MIC IN Audio input port
Bidirectional talk input port. It is to receive the analog
audio signal output from the devices such as
microphone, pickup.
MIC OUT Audio output port
Audio output port. It is to output the analog audio
signal to the devices such as the sound box.
●
Bidirectional talk output.
●
Audio output on 1-window video monitor.
●
Audio output on 1-window video playback.
User's Manual
33
