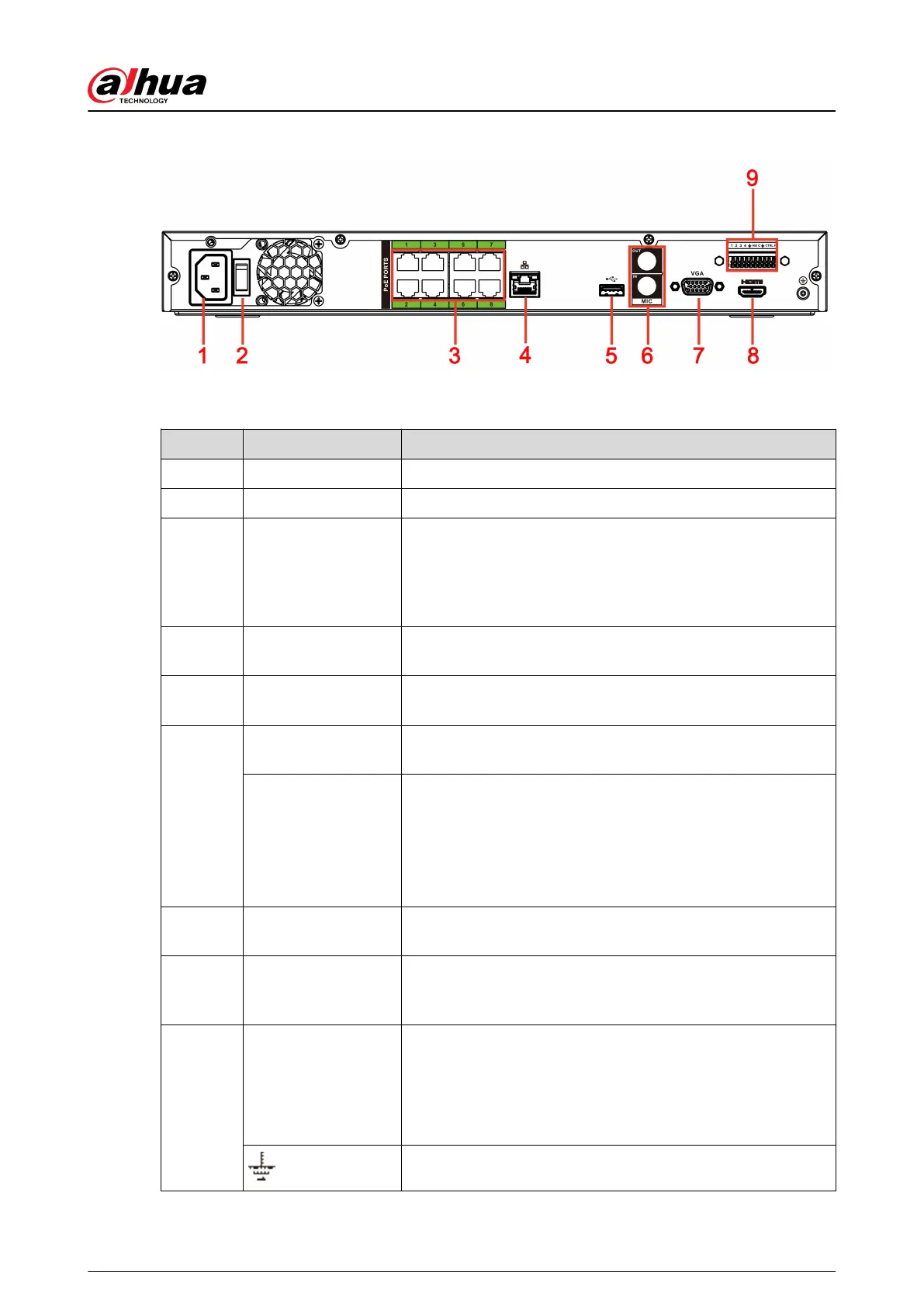

Figure 2-95 Rear panel
Table 2-39 Ports
No. Port Name Function
1 Power input port Input power of 100-240 V and 50-60 Hz.
2 Power button Turns on/o the NVR.
3 PoE port
Built-in switch. It can provide power for IPC.
8 PoE ports: 1-8 are ePoE ports (support 300m @ 100M. 800m
@ 10M). The device supports 48 V, 100 W total power output
under 55 °C, and 48 V, 130 W total power output under 45 °C.
4 Network port
10/100/1000 Mbps self-adaptive Ethernet port. Connect to the
network cable.
5 USB port
USB 3.0 port. Connect to devices such as mouse, USB storage
device and USB burner.
6
MIC IN
Bidirectional talk input port. It is to receive analog audio signal
from devices such as microphone, sound pickup.
MIC OUT
Audio output port. It is to output analog audio signal to
devices such as sound box.
●
Bidirectional talk output.
●
Audio output on 1-window video monitor.
●
Audio output on 1-window video playback.
7 VGA port
VGA video output port. Output analog video signal. It can
connect to the monitor to view analog video.
8 HDMI port
High denition audio and video signal output port. It
transmits uncompressed high denition video and multiple-
channel audio data to displays with HDMI port.
9
Alarm input port (1-4)
●
They receive signals from external alarm source. Alarm
input includes two types; NO (normal open) and NC
(normal close).
●
When your alarm input device is using external power,
make sure the device and the NVR have the same GND.
GND. Alarm input ground port.
User's Manual
61
