Figure 2-60

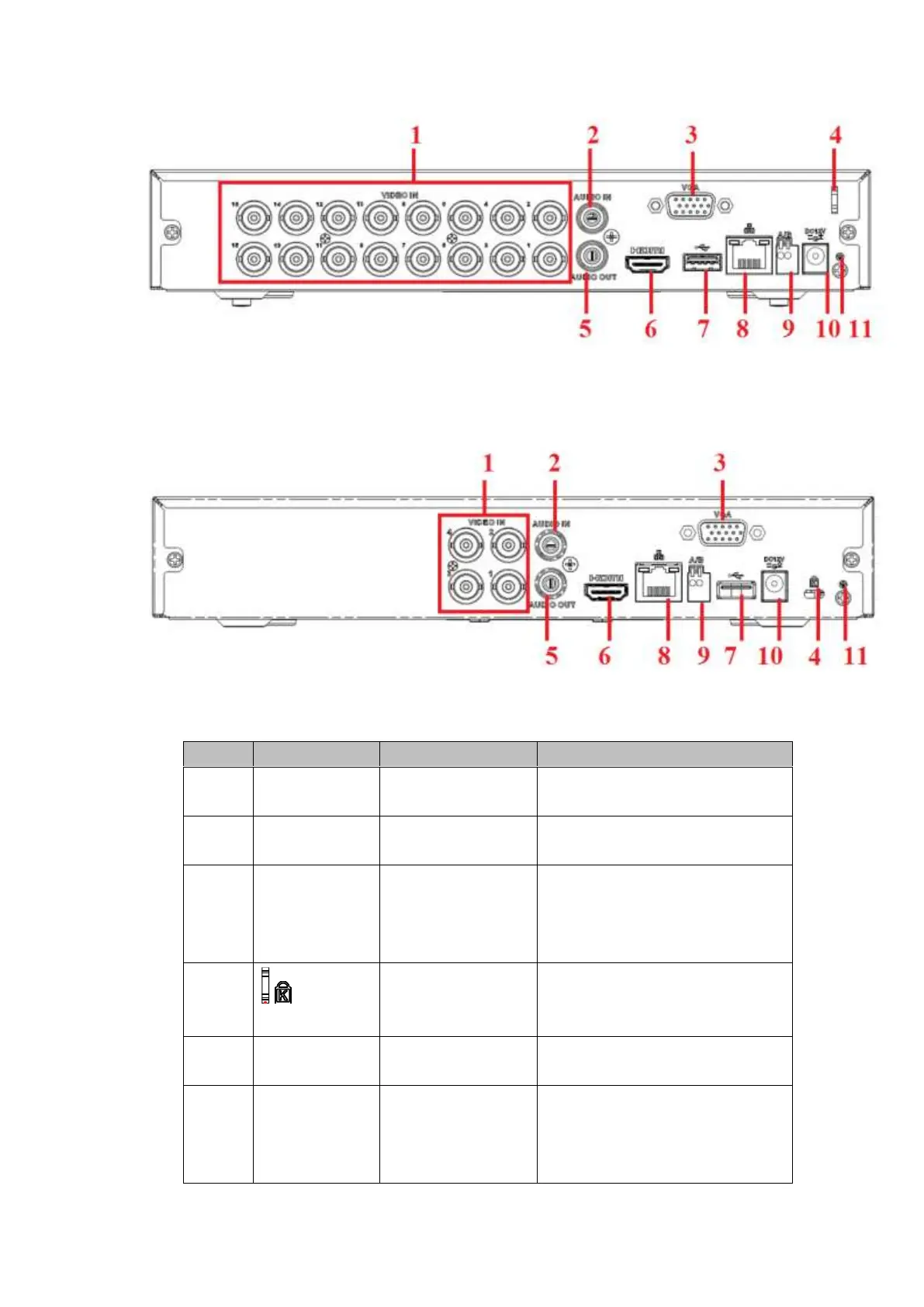

The HCVR7104HS-S3/XVR7104HS series rear panel is shown as below. See Figure
2-61.
Figure 2-61
Please refer to the following sheet for detailed information.
Connect to analog camera, video
input signal.
Connect to audio input device
such as speaker.
VGA video output port. Output
analog video signal. Can connect
to the monitor to view analog
video output.
Use clamp to secure the power
cable on the device in case there
is any loss.
Connect to video output device
such as sound box.
High definition
media interface
High definition audio and video
signal output port. It transmits
uncompressed high definition
video and multiple-channel data
To Next Page
