4.11.4.1.2 Snapshot
4.11.4.1.2.1 Schedule Snapshot
On the preview interface, right click mouse and then select Manual->Record, or in the
main menu, from Setting->Storage->Record, check the box to enable snapshot
function of corresponding channels. See Figure 4-152.
In main menu, from Setting->Camera->Encode->Snapshot interface, here you can
input snapshot mode as regular, size, quality and frequency. See Figure 4-153.
In main menu, from Setting->Camera->Encode->Schedule interface, please enable
snapshot function. See interface on the right of Figure 4-154.
Please refer to the following figure for detailed information.

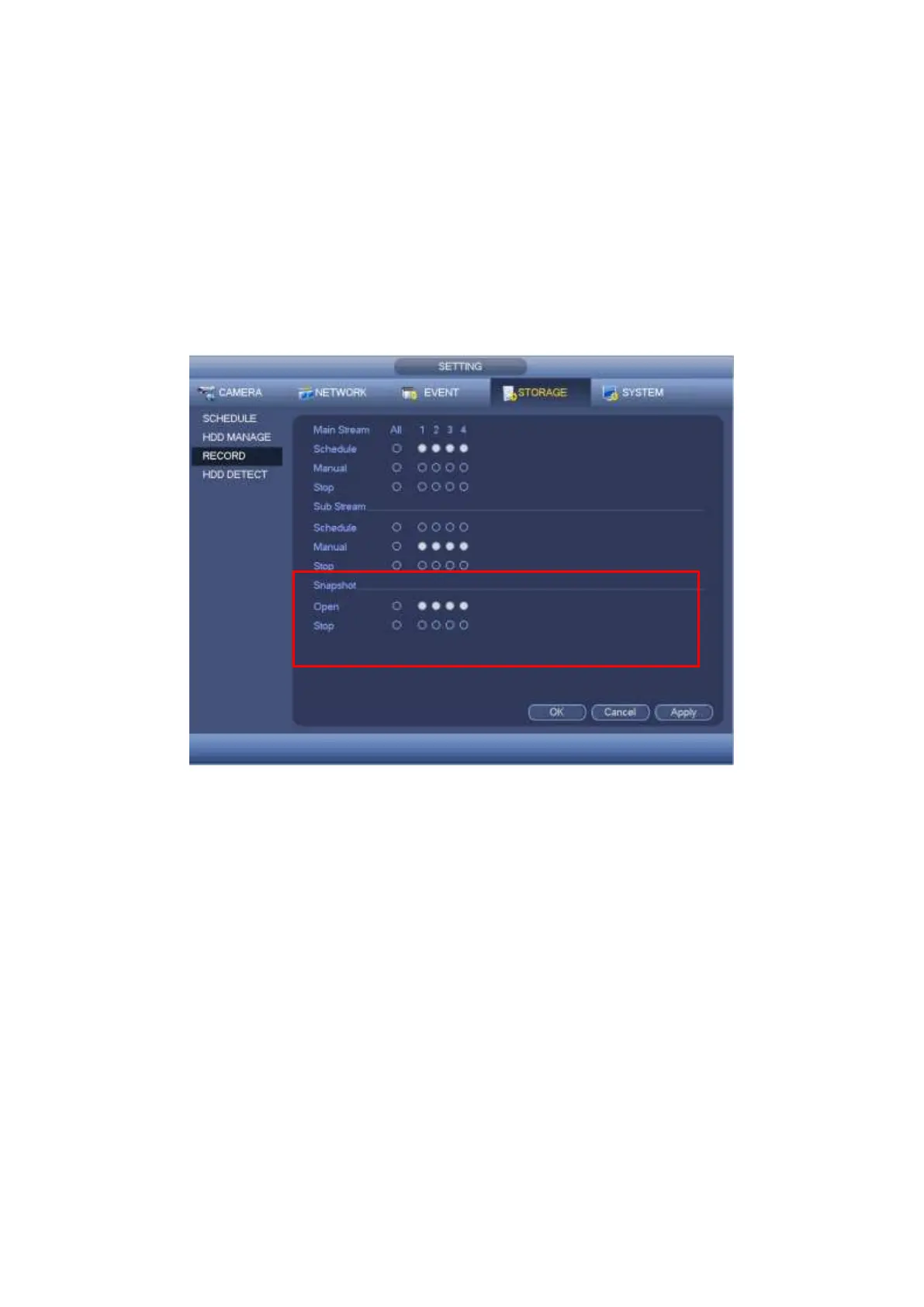

Figure 4-152
