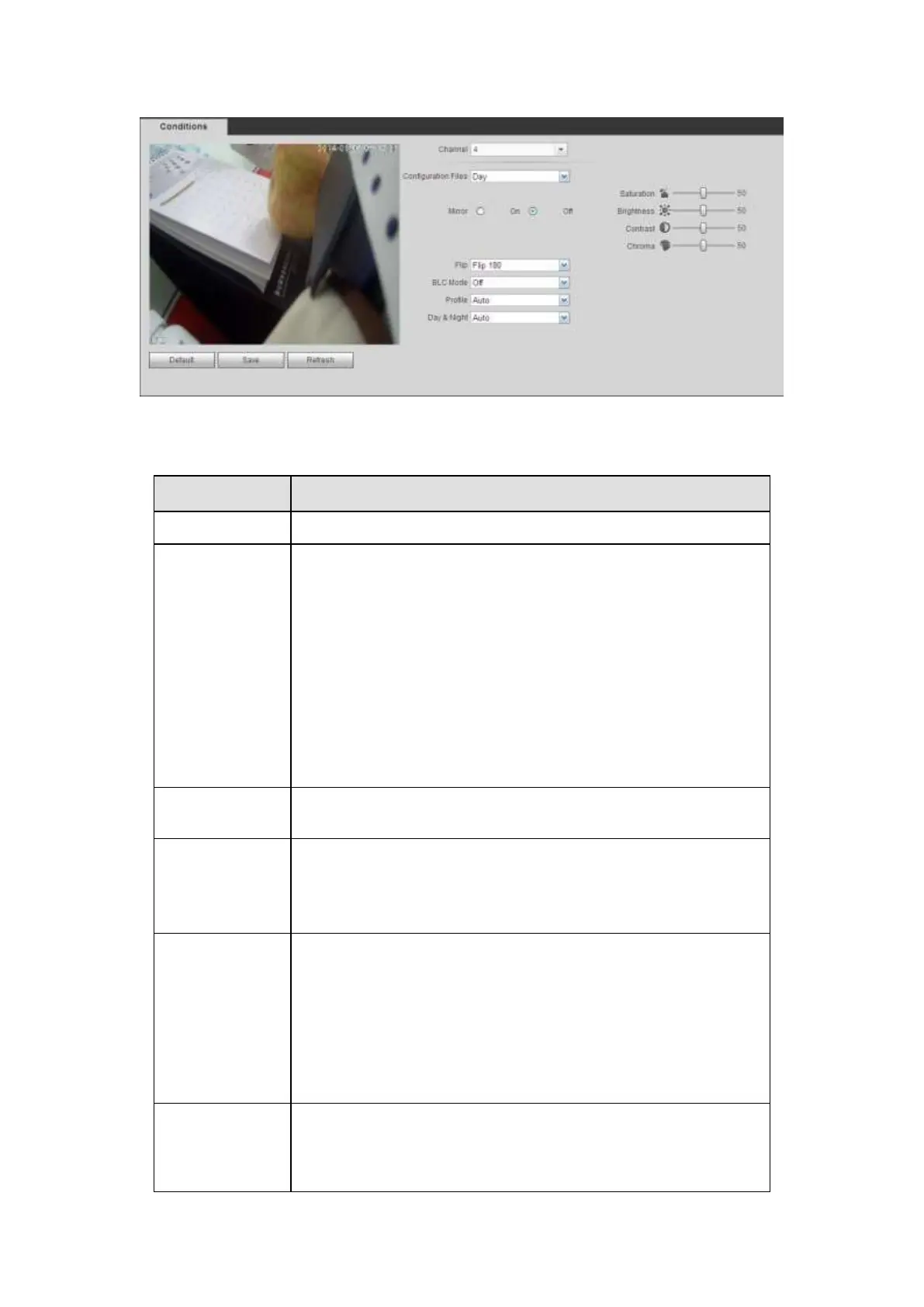

Figure 5-20
Please refer to the following sheet for detailed information.
Please select a channel from the dropdown list.
It is to set the cable type of the corresponding analog channel.
When the setup here matches the actual cable you are using,
you can get the best image effect. The default setup is
COAXIAL. Please note this function is for some series product
only.
COAXIAL: When the corresponding channel is using
coaxial cable, please select COAXIAL.
UTP: When the corresponding channel is using UTP cable,
please select UTP. Usually we recommend 10Ohm UTP
cable.
It divides one day (24 hours) to two periods. You can set
different hue, brightness, and contrast for different periods.
It is to adjust monitor video brightness and darkness level. The
default value is 50.
The bigger the value is, the large the contrast between the bright
and dark section is and vice versa.
It is to adjust monitor window brightness. The default value is 50.
The larger the number is , the bright the video is. When you
input the value here, the bright section and the dark section of
the video will be adjusted accordingly. You can use this
function when the whole video is too dark or too bright. Please
note the video may become hazy if the value is too high. The
value ranges from 0 to 100.The recommended value ranges
from 40 to 60.
It is to adjust monitor window contrast. The value ranges from 0
to 100. The default value is 50.
The larger the number is, the higher the contrast is. You can use
this function when the whole video bright is OK but the contrast
