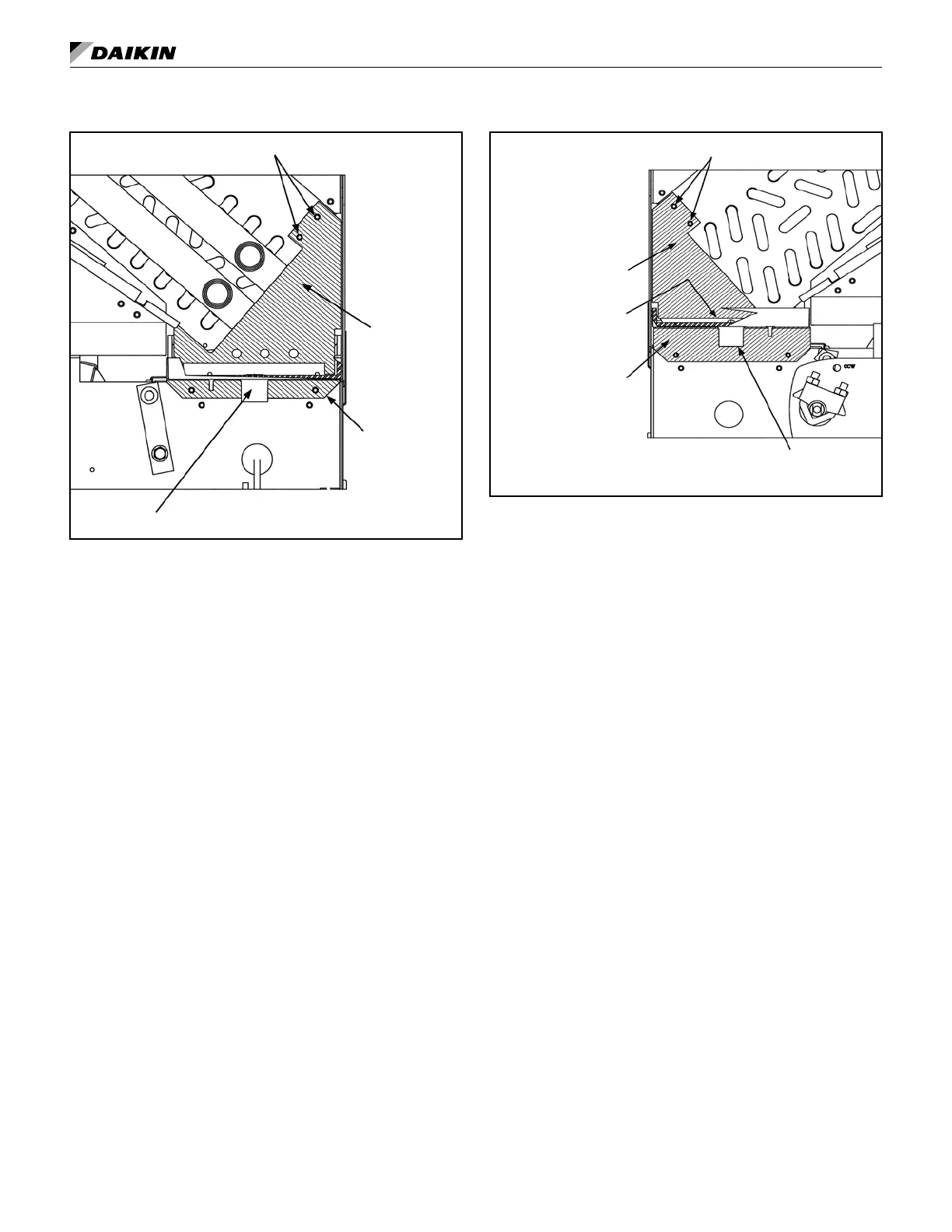

Figure 30: Low End of Drain Pan (Drain End)
Standard Drain Connection
1/4" hex head screws
Deep Upper
Plate
Shallow Lower
Bracket
Figure 31: High End of Drain Pan
Shallow Upper Plate
Deep Lower Bracket
Drain Pan
Standard Drain
Connection
1/4" hex head screws
To Clean the Drain Pan
1. Remove the shallow and deep upper plates from the
unit.
2. Spray water into the drain pan on the high end to
wash debris to the low end (drain end).
3. Remove any debris, making sure that the drain holes
are not obstructed.
4. Wipe the drain pan with a cloth.
5. Reinstall the upper plates.
