1.4 Determining installation place

Be sure to install the intelligent Touch Manager in a place that meets the conditions

described in 1.4.1 through 1.4.3 below.

1.4.1 Installation place and mounting direction

Below are the description of the installation place and mounting direction. Be sure to

conrm.

• Installation place: Indoor, free from dust and water splashes

• Mounting direction: Vertical

1.4.2 Environmental conditions

Make sure that the installation environment meets the following conditions.

• The ambient temperature must be 0 to 40 °C.

• The ambient humidity must be 85% RH or less (without condensation).

• There must be no electromagnetic disturbance.

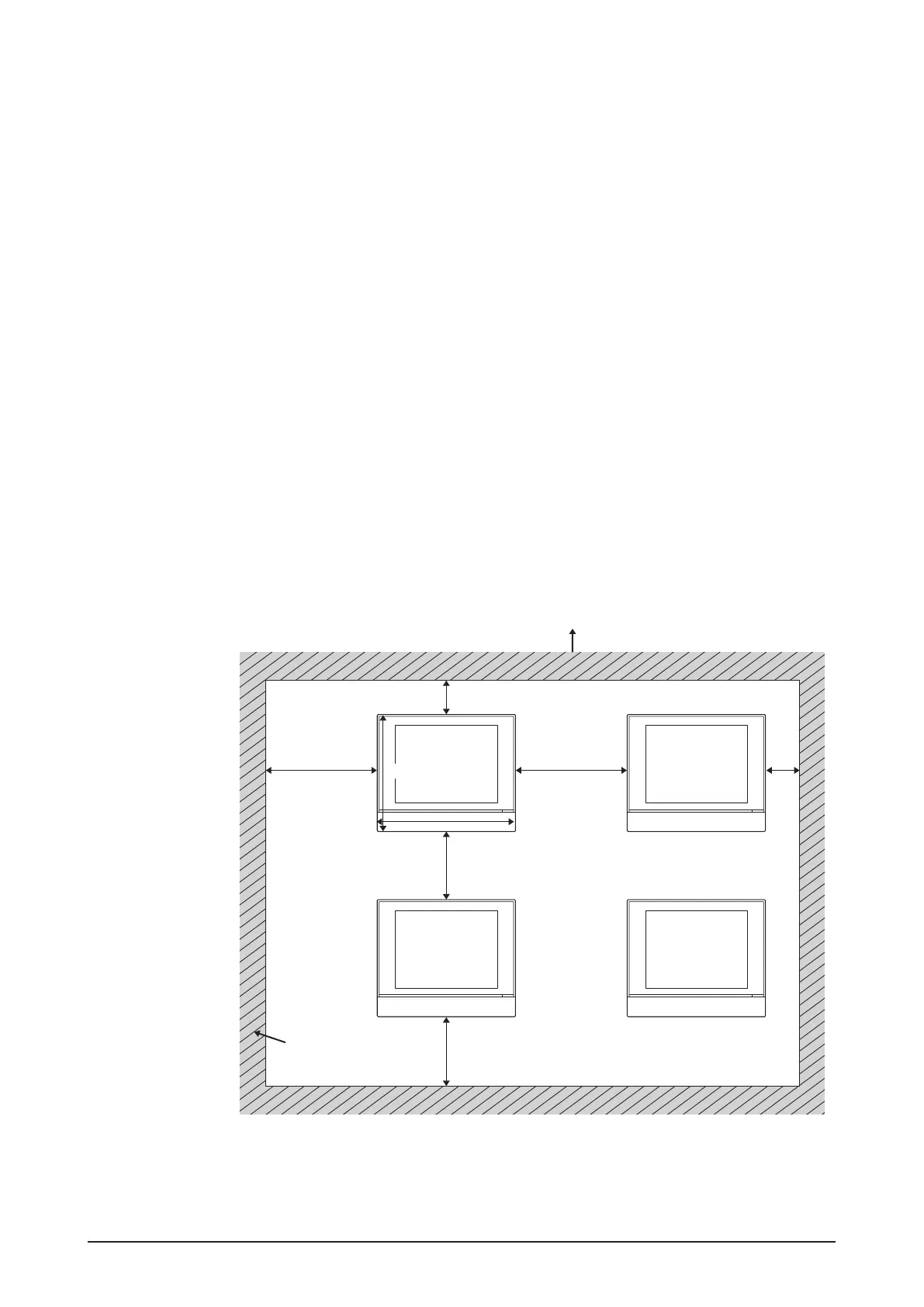

1.4.3 Required space

To install the intelligent Touch Manager, the following space is required. Make sure that

there is a minimum clearance of 30 mm from the top edge, 100 mm from the left side

edge, 30 mm from the right side edge, and 60 mm from the bottom edge of the unit.

Required installa-

tion space

MONITOR MONITOR

30mm100mm

290mm

100mm

60mm

30mm

243mm

A To p

B Wall
