24 Installation Manual 3P291714-7H
DCM601B51 intelligent Touch Manager
English
2.6.2 Requirements that must be met
• Cable type: CPEV or FCPEV cable
• Core thickness: φ0.65 - 0.9 mm
• Cable length: 50 meters or less
NOTE
Each air conditioner controlled via an DGE601A52 is also assigned a DIII address
between “1-00” to “4-15”. From the intelligent Touch Manager, it is recognized as “2:1-
00”, “3:1-02”, or the like, with the DIII-NET port number prexed.
2.7 Connecting power supply
Connect the intelligent Touch Manager to an AC power supply.
WARNING
The following procedures must be carried out with the power supply shut off. Do
not turn the power supply on until all connections are made. Not doing so may
cause an electric shock.

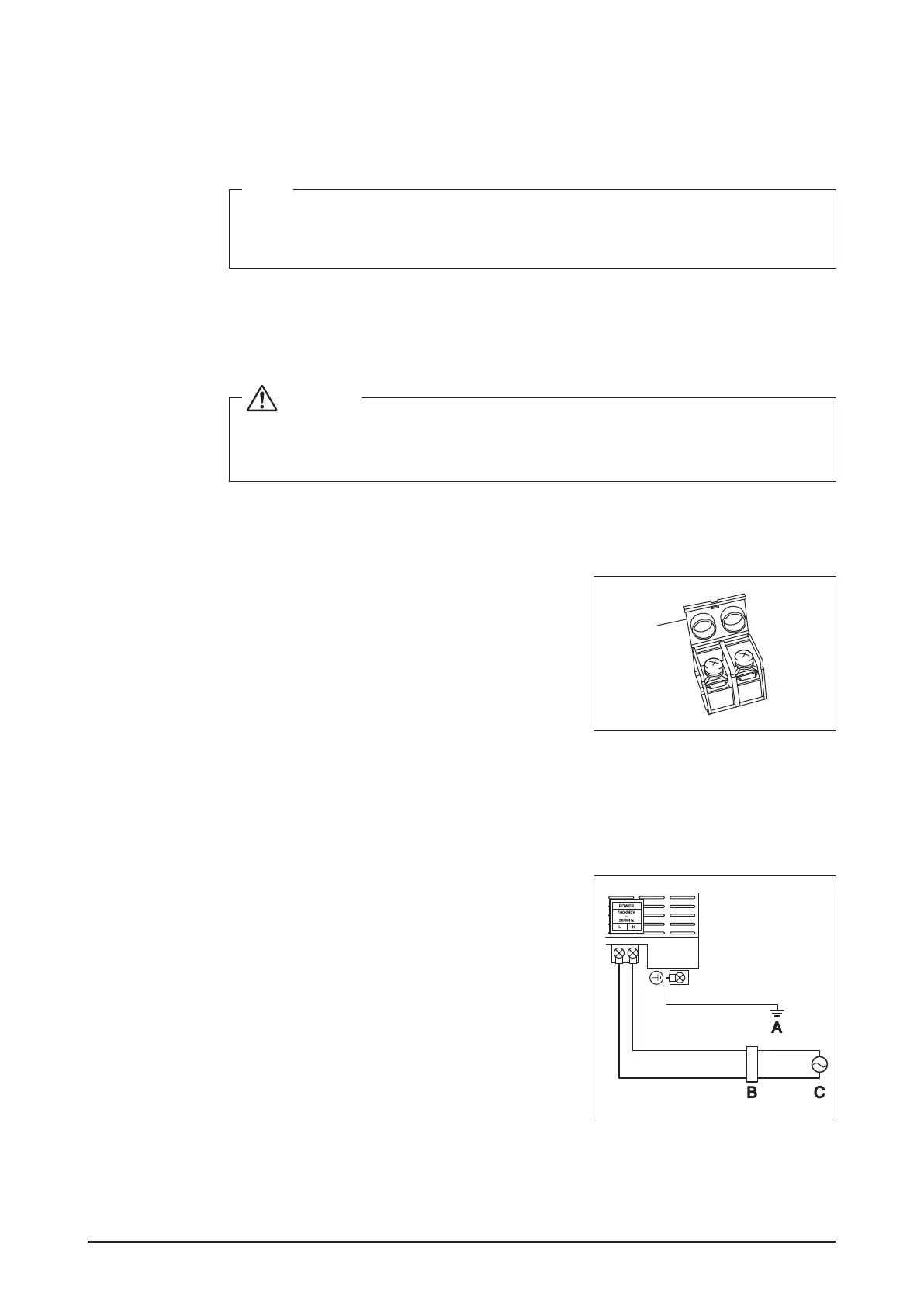

2.7.1 Opening the power supply terminal cover
<Power supply terminal diagram>
Open the power supply terminal cover by lifting
upward.
A
A Power supply terminal cover
2.7.2 Terminals location and conceptual connection diagram
<Conceptual drawing of power sup-
ply connection>
Connect the power supply to the three terminals, L
(Live), N (Neutral), and ground in the POWER sec-
tion.
A Earth
B Earth leakage breaker
C Power supply 100-240VAC
50/60 Hz
To Next Page
