36 Installation Manual 3P291714-7H
DCM601B51 intelligent Touch Manager
English
4.7 Conrming air conditioner auto registration results
On the A/C Auto Register screen, the message “The following A/C has been connected.
Do you want to register for Mng.Point? The system will restart after the registration”.
appears.
1. Make sure that all air conditioners for which you assigned a DIII-NET address in “4.8
Assigning a DIII-NET address for each air conditioner” are displayed.
If you see any problem, touch Show Updates to reload the up-to-date information, or
review the DIII address settings.
2. When the conrmation dialog appears, touch Yes.
The intelligent Touch Manager restarts and Main screen appears. The intelligent Touch
Manager setup has now been completed.
NOTE
When DGE601A52 is connected, power on the DGE601A52 in advance.
4.8 Assigning a DIII-NET address for each air conditioner
In a DIII-NET system, there is a management number for identifying each air conditioner.
This can be referred to as DIII-NET address. A DIII-NET address needs to be assigned
manually using the remote controller for each air conditioner.
There are remote controllers of several types, each requiring a different way of assigning
a DIII-NET address. This section describes commonly used two types of remote control-
lers, wired and navigation remote controllers, as examples.
NOTE
For how to assign addresses for Ventilator (Heat Reclaim Ventilator) equipment and
various adaptors (such as a universal adaptor), refer to the manual for each product.
4.8.1 Remote controller buttons and areas
The names of buttons and areas of a wired remote controller used in this section are
shown below.

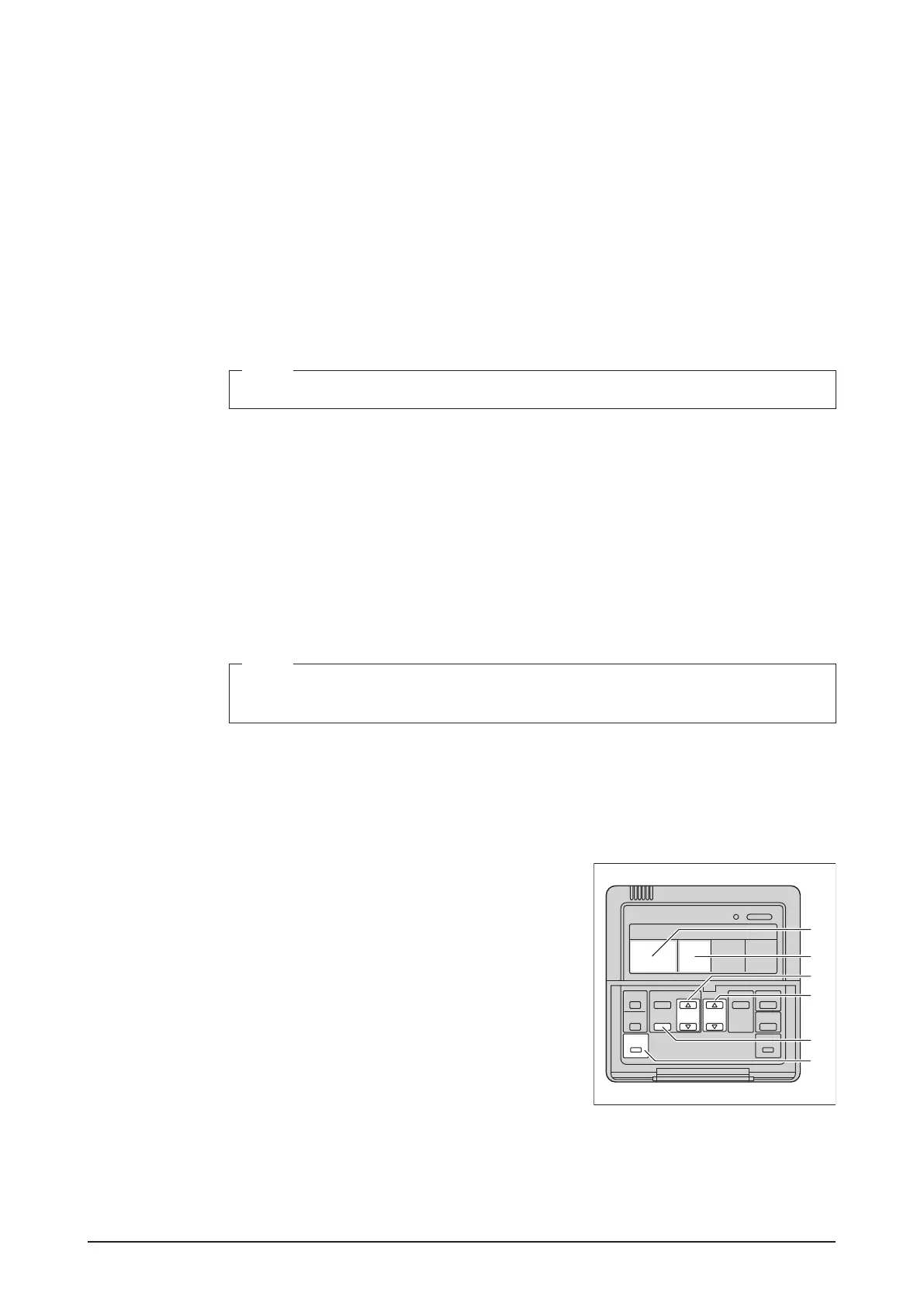

<Wired Remote Controller>
A Address display area
B Parameter number display area
C Programming time buttons
D Temperature setting buttons
E Timer ON/OFF button
F Inspection / Test operation button
B
A
C
E
F
D
To Next Page
