Installation Manual 3P291714-7H
DCM601B51 intelligent Touch Manager
7English
1 Before Installation
Before you start installing the intelligent Touch Manager, complete the following prepara-
tions.
• Check that the intelligent Touch Manager comes with all accessories.
• Conrm where the terminals and switches of the intelligent Touch Manager are located.
• Check that an appropriate space for installing the intelligent Touch Manager is available.
1.1 Checking that all accessories are included
Based on the following accessory list, check that all accessories for the intelligent Touch
Manager are included. Should there be any missing or defective parts, contact your dealer.

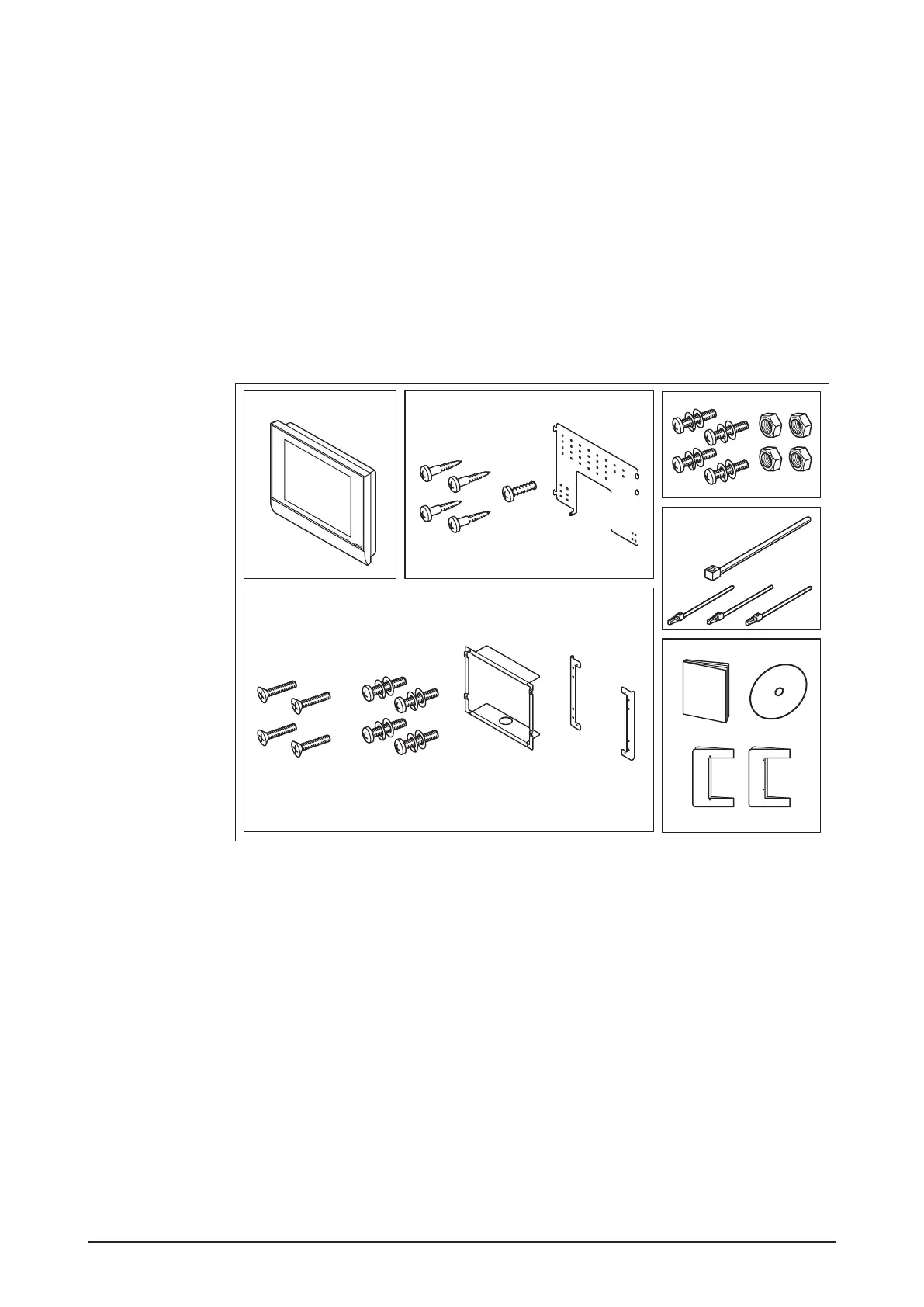

<Accessories included with intelligent Touch Manager>
A B
E
D
F
C
b-1a-1 b-2 b-3
e-2
e-1
d-1 d-2
c-4c-3
f-2
f-3
f-1
c-2c-1
A (a-1) intelligent Touch Manager body (1 pc.)
B Wall mounting parts
(b-1) Round-head wood screw (φ4.1×25), 4 pcs. (b-2) P-tight screw (φ3×8), 1 pc.
(b-3) Wall mounting metal plate, 1 pc.
C Flush wall mounting parts
(c-1) Flat-head screw (M4×40), 4 pcs. (c-2) Pan-head screw (M4×14, with spring
washer and plain washer), 4 pcs.
(c-3) Frame bracket, 1 pc. (c-4) Angle bracket, 2 pcs.
D Control enclosure parts
(d-1) Pan-head screw (M4×40, with spring washer and plain washer), 4 pcs.
(d-2) Nut (φ4), 4 pcs.
E (e-1) Cable tie, 1 pc. (e-2) Push mount tie, 3 pcs.
F (f-1) Installation manual (This manual), 1 pc. (f-2) Manual CD, 1 pc.
(f-3) Paper template, 2 pcs.
To Next Page
