5 Outdoor unit settings
Setup on the outdoor unit
To use the demand function or low noise function, demand address setting and demand
enabled setting is required.
To use the Energy Navigator function, you need to set an Airnet address for the outdoor
unit. To set the address of an outdoor unit, use push buttons provided on the unit’s printed
circuit board. The current setting or operating status of an outdoor unit is indicated by its
LEDs (segment).
Refer to the air conditioner service manual for details.

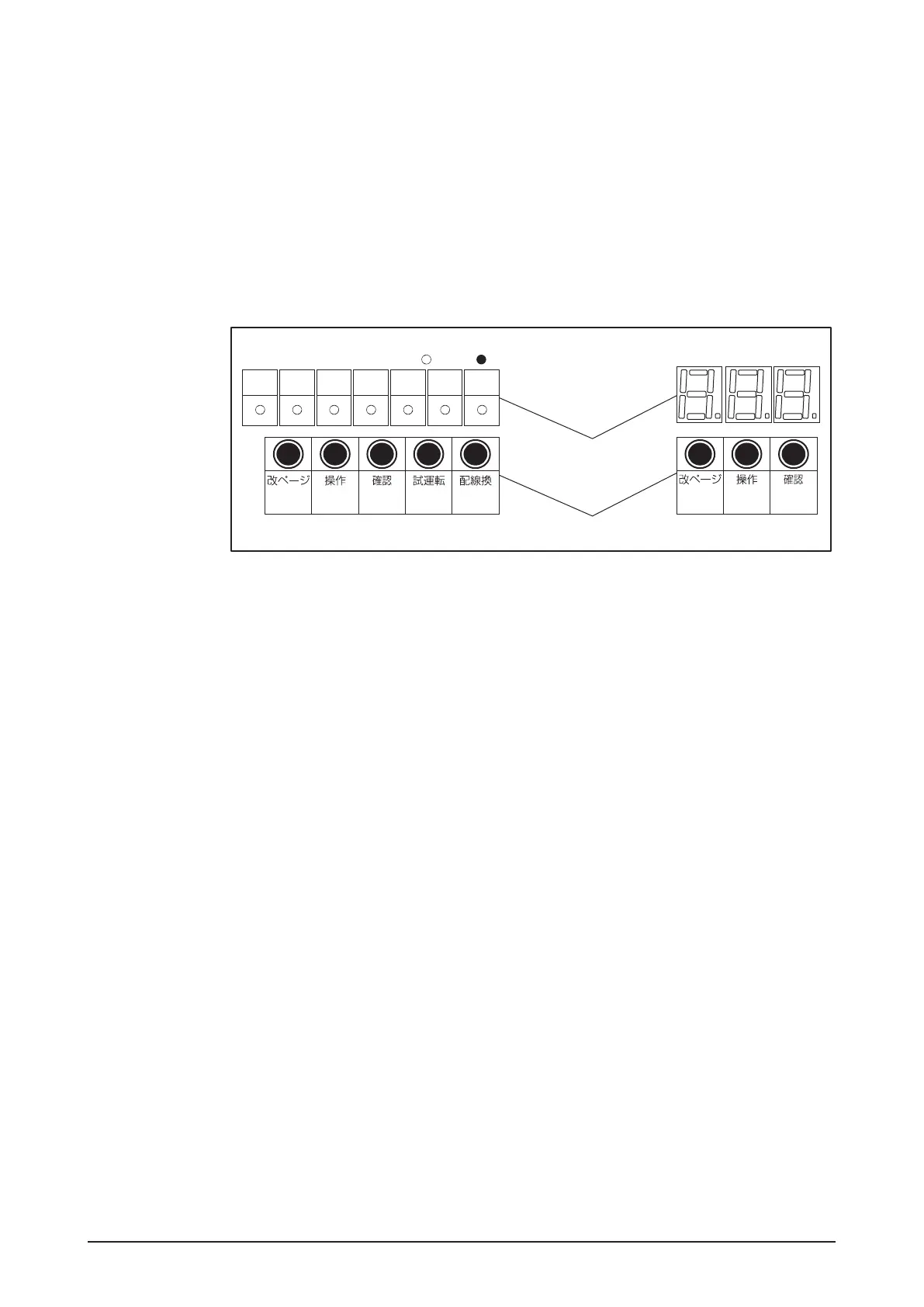

LEDs (segment) and setting switches for each mode
Display of each mode
(LED/segment)
Segment display’s outdoor unit
Setting switches for each mode
On Off
MODE
BS1
SET
BS2
RETURN
BS3
LED display’s outdoor unit
MODE
BS1
SET
BS2
RETURN
BS3
TEST
BS4
RESET
BS5
SEG1
SEG2
SEG3
H1P
H2P H3P H4P H5P H6P H7P
