Installation Manual 3P291714-7H
DCM601B51 intelligent
T
ouch Manager
English

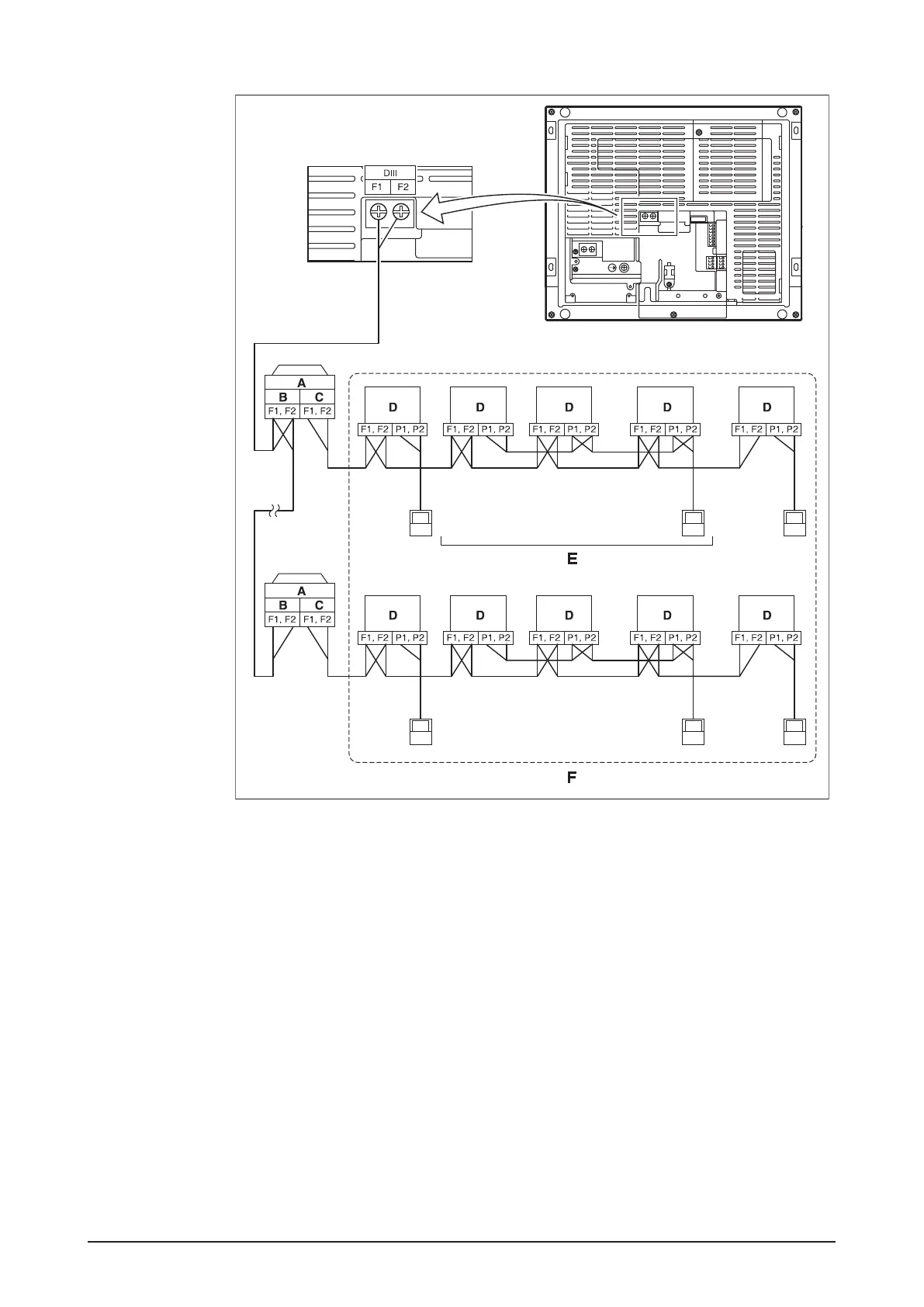

<Conceptual connection diagram with air conditioning equipment>
A
Outdoor unit
B
OUT - OUT
C
IN - OUT
D
Indoor unit
E
A maximum of 16 indoor units can be connected per remote controller group
.
F
A maximum of 64 remote controller groups (128 indoor units) can be connected.
A maximum of 64 indoor units can be connected when pow
er distribution is enab
led.
15
17
Table of Contents
Table of Contents
5
Before Installation
7
Checking that All Accessories Are Included
7
Understanding External Dimensions
8
Understanding Where Terminals and Switches Are Located
10
Rear Face
10
Front Panel
11
Side Face
12
Routing of Cables
12
Determining Installation Place
13
Installation Place and Mounting Direction
13
Environmental Conditions
13
Required Space
13
Connection
14
Removing the Rear Cover
14
Removing Terminal Cover from Rear Face
14
Removing the Power Supply Terminal Cover
15
Connecting DIII-NET-Compatible Air Conditioning Equipment
15
Terminals Location and Conceptual Connection Diagram
15
Requirements that Must be Met
17
Precautions for Using Multiple Centralized Controllers
17
Connecting a LAN Cable
18
Terminals Location and Conceptual Connection Diagram
19
Requirements that Must be Met
19
Connecting I/O Module
20
Terminals Location and Conceptual Connection Diagram
20
Requirements that Must be Met
20
Address Setup
21
Connecting an Emergency Stop Input Device or Electric Energy Meters
21
Terminals Location and Conceptual Connection Diagram
22
Requirements that Must be Met
22
Connecting DGE601A52
23
Terminals Location and Conceptual Connection Diagram
23
Requirements that Must be Met
24
Connecting Power Supply
24
Opening the Power Supply Terminal Cover
24
Terminals Location and Conceptual Connection Diagram
24
Attaching the Rear Cover
25
Requirements that Must be Met
25
Installation
26
Wall Mounting
26
Parts to be Used
26
Installation Procedure
26
Flush Wall Mounting
27
Parts to be Used
27
Wall Opening Dimensions
28
Installation Procedure
28
Direct Mounting to Control Enclosure
31
Parts to be Used
31
Wall Opening Dimensions
31
Installation Procedure
31
Basic Setup
33
Powering on Data Backup Battery
33
Powering on Intelligent Touch Manager and Air Conditioners
33
Setting up Display Language
34
Setting up Locale
34
Setting Time Zone
35
Setting Current Time and Daylight Saving Time
35
Confirming Air Conditioner Auto Registration Results
36
Assigning a DIII-NET Address for each Air Conditioner
36
Remote Controller Buttons and Areas
36
Procedure for a Wired Remote Controller
37
Procedure for a Navigation Remote Controller
39
Setting an Unique Address to each Unit (When Power Distribution Is Enabled)
41
Outdoor Unit Settings
42
Steps for Enabling Demand Address Setting and Demand Setting
43
Steps for Setting the Outdoor Unit Airnet Address
44
Setting Items LED (Segment) Display
44
Quick Operation Guide
45
Viewing Target Area and Management Point Information in List Format
45
Viewing Target Areas and Management Points
45
Starting/Stopping an Area or Management Point
46
