Dallmeier electronic
4 Display indications and ports on the front side
1 Filter pad (behnd the panel)
2 Display
3 Serial number
4 Version number
5 Product name
Number of activated cameras
6 Date
7 Time
8 Status LEDs
9 Power (blue)
Always lights up while the unit is switched on.
10 Record (green)
Indicates the recording activity (hard disk activity) of the recor-
der.
11 Alarm (orange)
Indicates the alarm status of the recorder.
12 Error (red)
Indicated failures, e. g. camera failures or hard disk faults.
13 USB port
14 DVD drives (behind the panel)

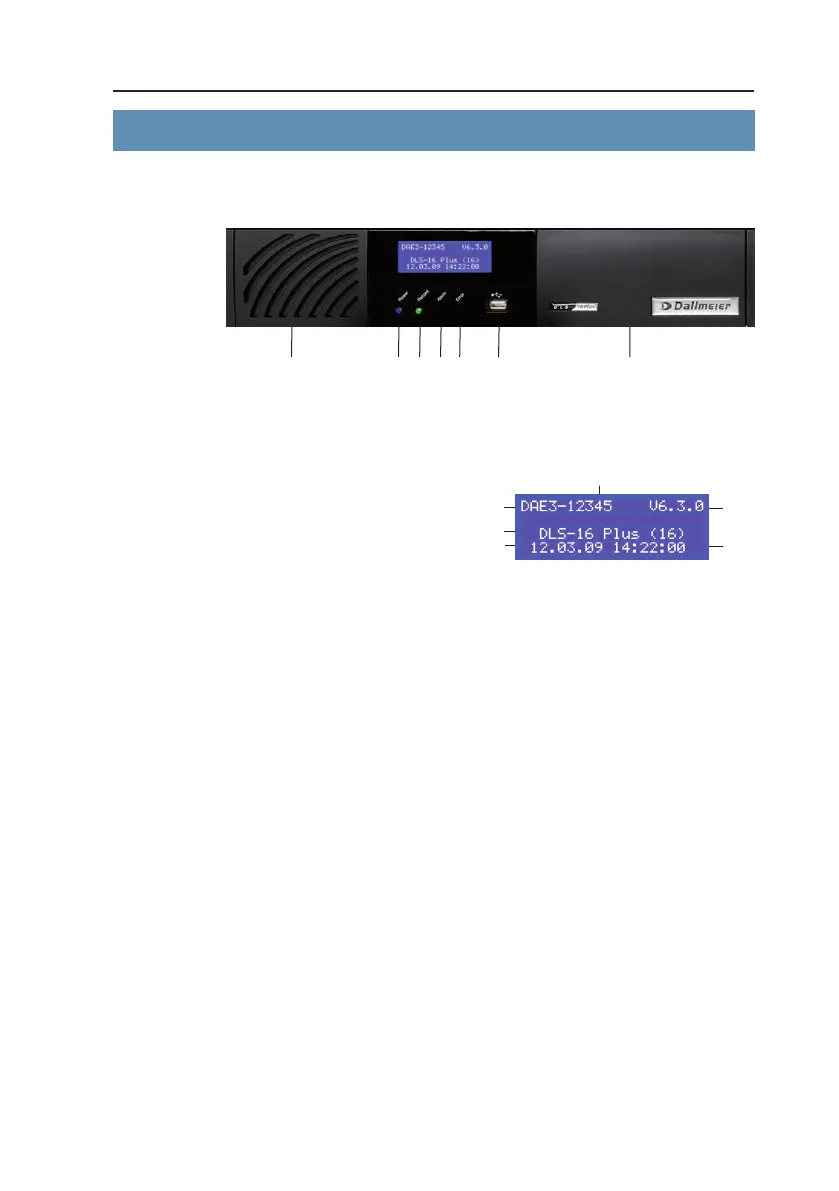

Fig. 4-1: Front view DLS
1 9 10 11 12 1413
3
5
6
4
7
2
