6 Playback/Live Mode
After you have logged in successfully, the recorder is in the Play-
back/Live mode. The graphical user interface will be displayed. De-
pending on the splitter conguration (see Installation and Con-
guration), live images of the connected cameras will be displayed
in a certain split type.
NOTE
If there is no entry or mouse movement for 10 mi-
nutes, the recorder will automatically go back to
the Sequencer/Live mode.
6.1 Graphical User Interface

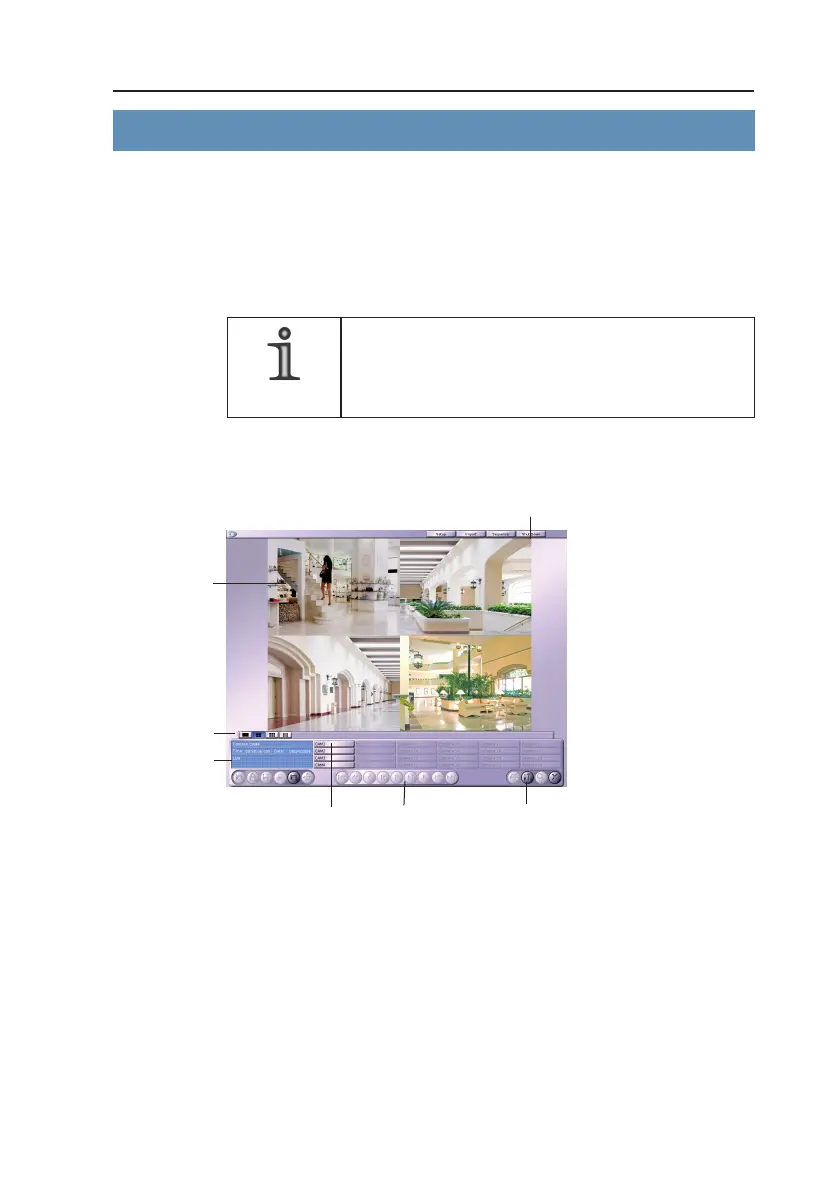

Fig. 6-1: GUI elements
1 Buttons for selecting the split type
2 Buttons for selecting the dialog
3 Live or playback splits
4 Information window
5 Camera buttons
6 Buttons for playback control
7 VGA/Audio Settings
The Sequencer/Live mode can be reactivated at any time by clicking
on the Sequencer button.
2
3
1
4
5
6
7
