DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS
32
Dallmeier electronic
NOTE
There must be no video distributor or signal ampli-
er between the UTC camera and the recorder.
Ø Click on the corresponding camera button in the Playback/Live
mode.
The live image of the camera will be displayed.
The camera control button will be activated.

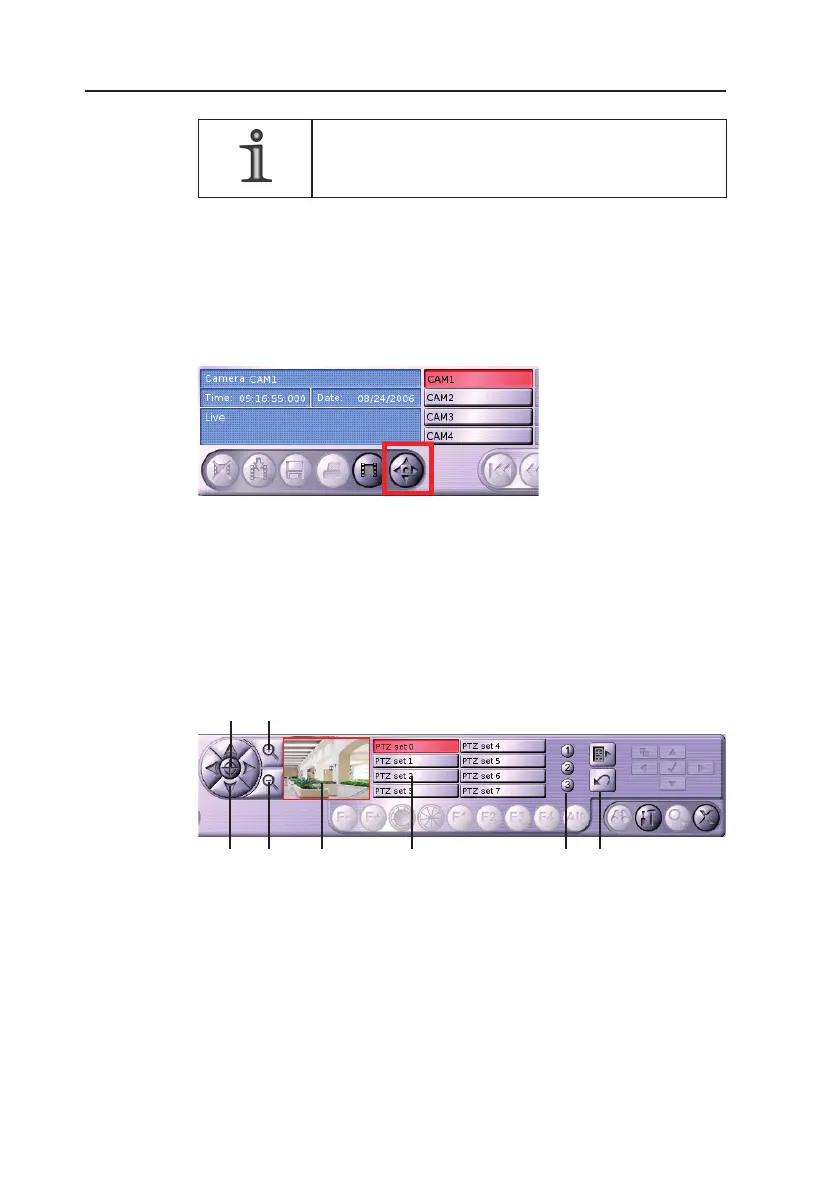

Fig. 6-12: Camera control button
Ø Click on the camera control button.
The UTC zoom control panel will be displayed.
6.5.1 Functions
1 Control buttons (left, right, up, off)
2 Reset zoom
3 Zoom +
4 Zoom -
5 Preview window
6 PTZ preset Buttons
7 Preset 1 – 3
8 Menu on/off
Fig. 6-13: UTC zoom control panel
1
4 5 6 7 8
2 3
