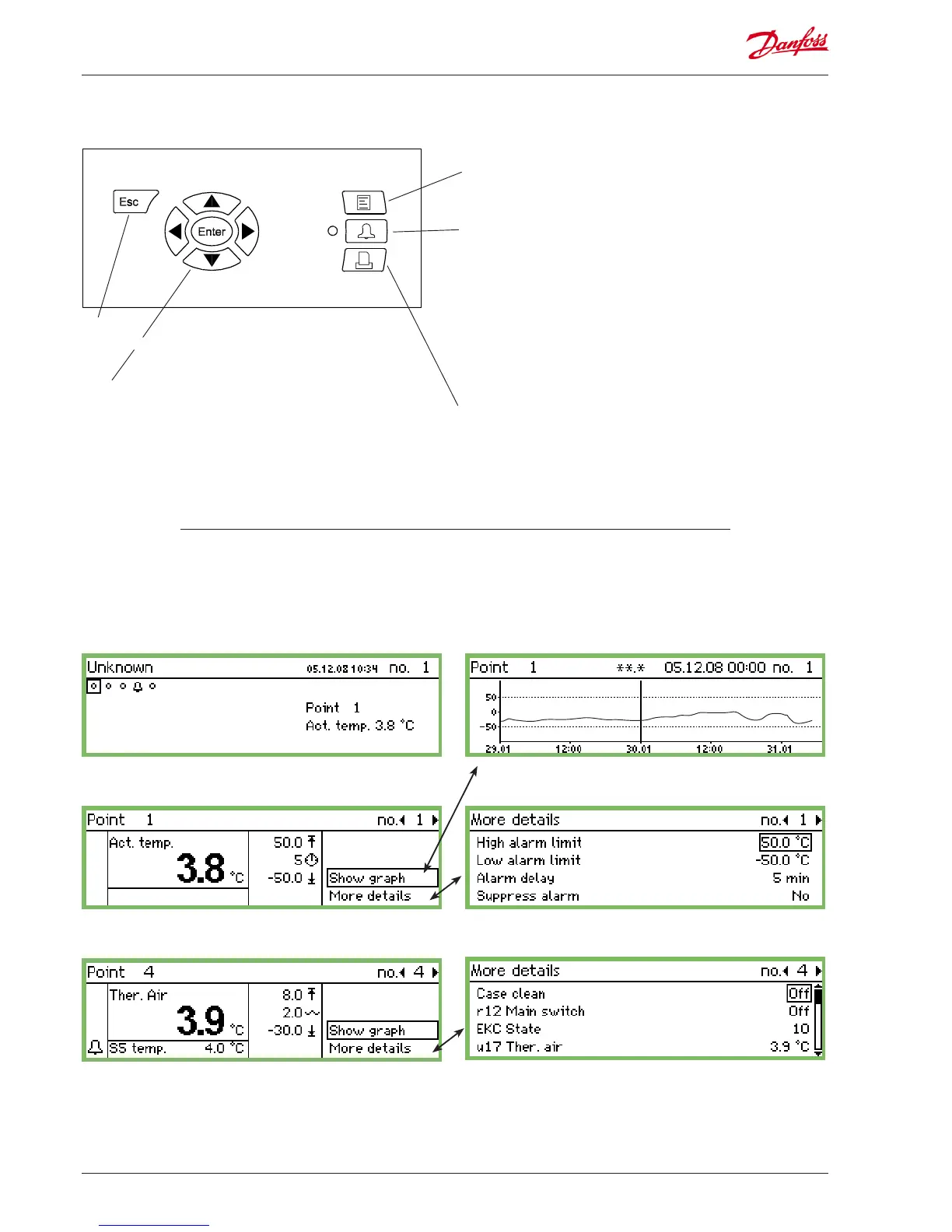

Menu
Provides access to the menu system and consequently the setups.
See page 16 for more information.
Alarm signal and operating the alarms
• The LED ashes when there is a new alarm
• The LED lights up when the alarm is acknowledged and the
"error" has not been dealt with.
• The LED does not go out until the error has both been rectied
and acknowledged.
• The button shows the alarm text and stops the alarm signal
when it is pressed twice.
See overleaf for more information.
Print
• Starts the print-out function. Only used if a printer is connected
to the unit.
See page 39 for more information.
Escape
• Goes back to the display readout
Navigation
• The arrow keys change what is highlighted in the display. Values
can be changed.
• "Enter" executes a selection.
When an "arrow" is shown on the top right-hand side of the
display, this means there are several menus for this level. Press an
arrow key to move to the menu.
The display
There are several display screens used in daily operation. Here is a
short presentation:
• Overview display, with all measuring point
• Point detail display, showing the point’s actual values
• Point detail display from a controller
Operation
The following operation options are found on the front of the
monitoring unit:
Descriptions of the display screens can be found on page 15
onwards.
• Graph display, showing the point’s previous readings
• "More details" from a point
• "More details" from a controller
