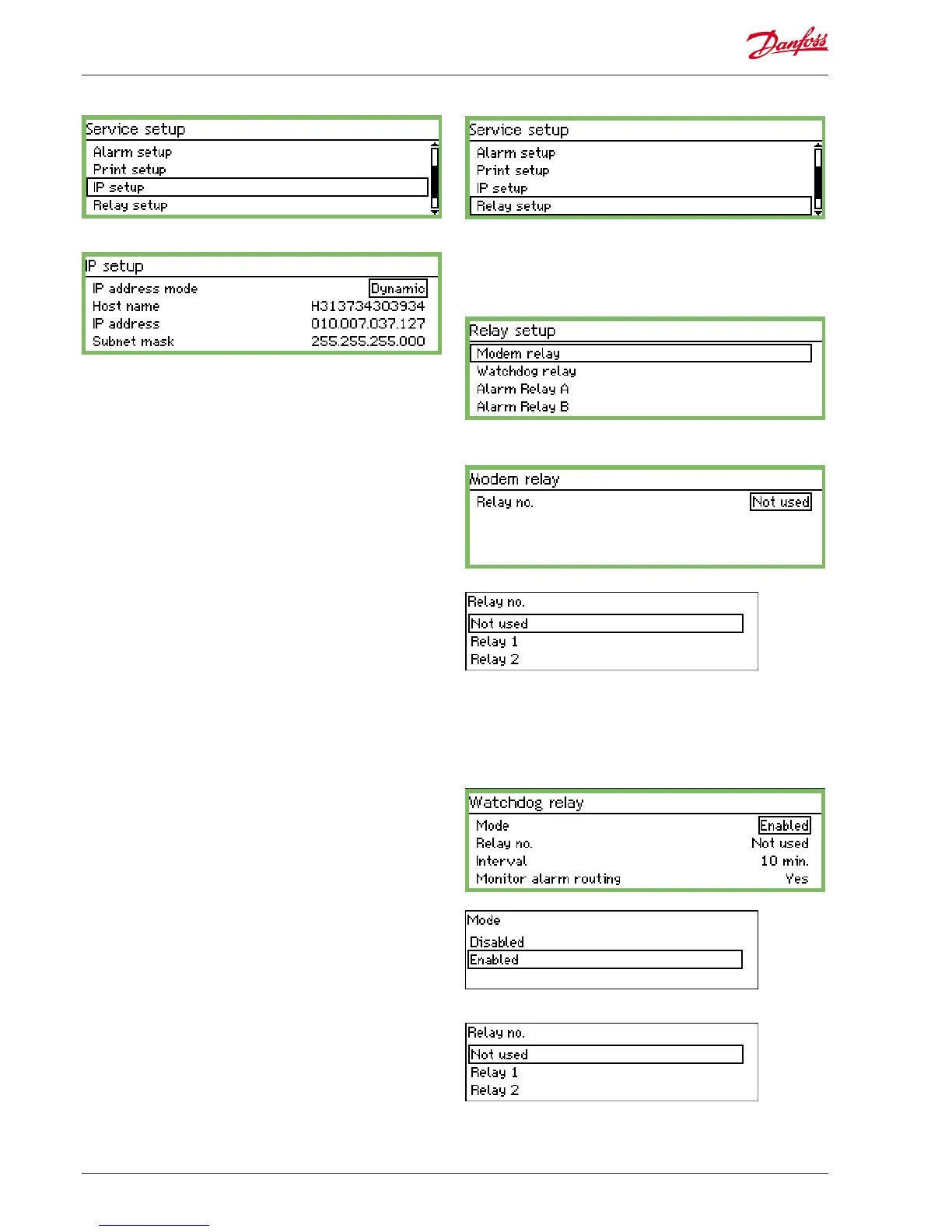

IP setup
If AK-SM 350 is using IP, the settings should be done as follows.
Select whether the address should be Dynamic or Static.
If the system is to be called up from the AKM or from the Service
tool, “Static address” should be used.
When using Static, the address should be obtained from the local
IT department.
Relay setup
There are 2 relays in the unit. They can be used for 2 of the follow-
ing:
• Modem relay
• Watchdog relay
• Alarm relay
Modem
This function turns the modem off and on every six hours.
If the function is used, one of the relays must be selected. Set
which one.
Watchdog function
This function will enable one of the two relays at fixed intervals.
An external unit will monitor whether the relay is activated. If it is
not enabled, the external unit will generate an alarm.
If the function is used, it must be enabled.
Relay for watchdog function
If the function is used, one of the relays must be selected. Set
which one.
