Application
This function is used to define the way controller measurements
are displayed on the front of the AK-SM 350 when a customer-spe-
cific display is required or if there is no factory-defined template
for display, for example if a completely new kind of controller is
added for which the AK-SM 350 does not have a template.
1. Connection
Connect service tool AK-ST 500 to the AK-SM 350.

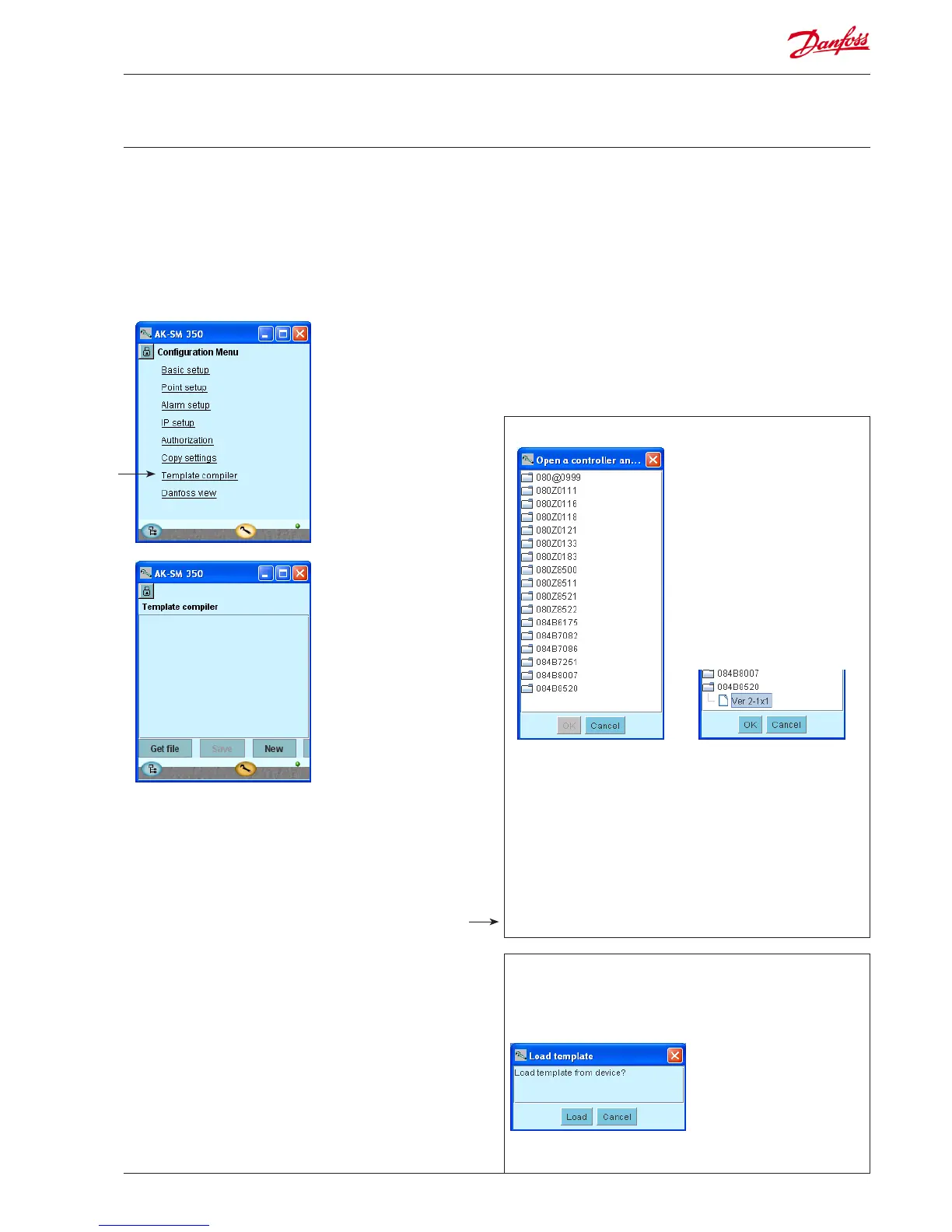

Start the function in the service tool program
2. New template
To create a new template, you need to tell the program which
controller and which parameters are available.
Click on “NEW” and the service tool program will display all the
controllers recognised by the program (to which the service
tool program has previous connected).
Find the relevant code number and software version and con-
tinue by clicking “OK”. (An example is shown on the right.)
3. Settings
Enter the settings as shown on the following pages
4. Save
Once you have finished entering the settings on the following
pages, save the template on the relevant AK-SM 350.
The template you save on the AK-SM 350 will overwrite any
existing template. Any previous template (factory-defined or
user-defined) for the controller in question will be deleted.
If you cannot find the code number or software version in the list,
you can retrieve it as follows:
1. Connect the controller to the AK-SM 350
2. Enter an address in the controller
3. Start the “Scan” function
4. Read the code number and software version from the network
overview
5. Connect to the controller via the network overview.
6. Restart the template function.
Revision
Use this function if you want to upload to the PC and work on a
user-defined template already in the AK-SM 350.
Click on “Get le” and retrieve the le for editing
Example
Appendix - Template compiler
