Danfoss FC 300

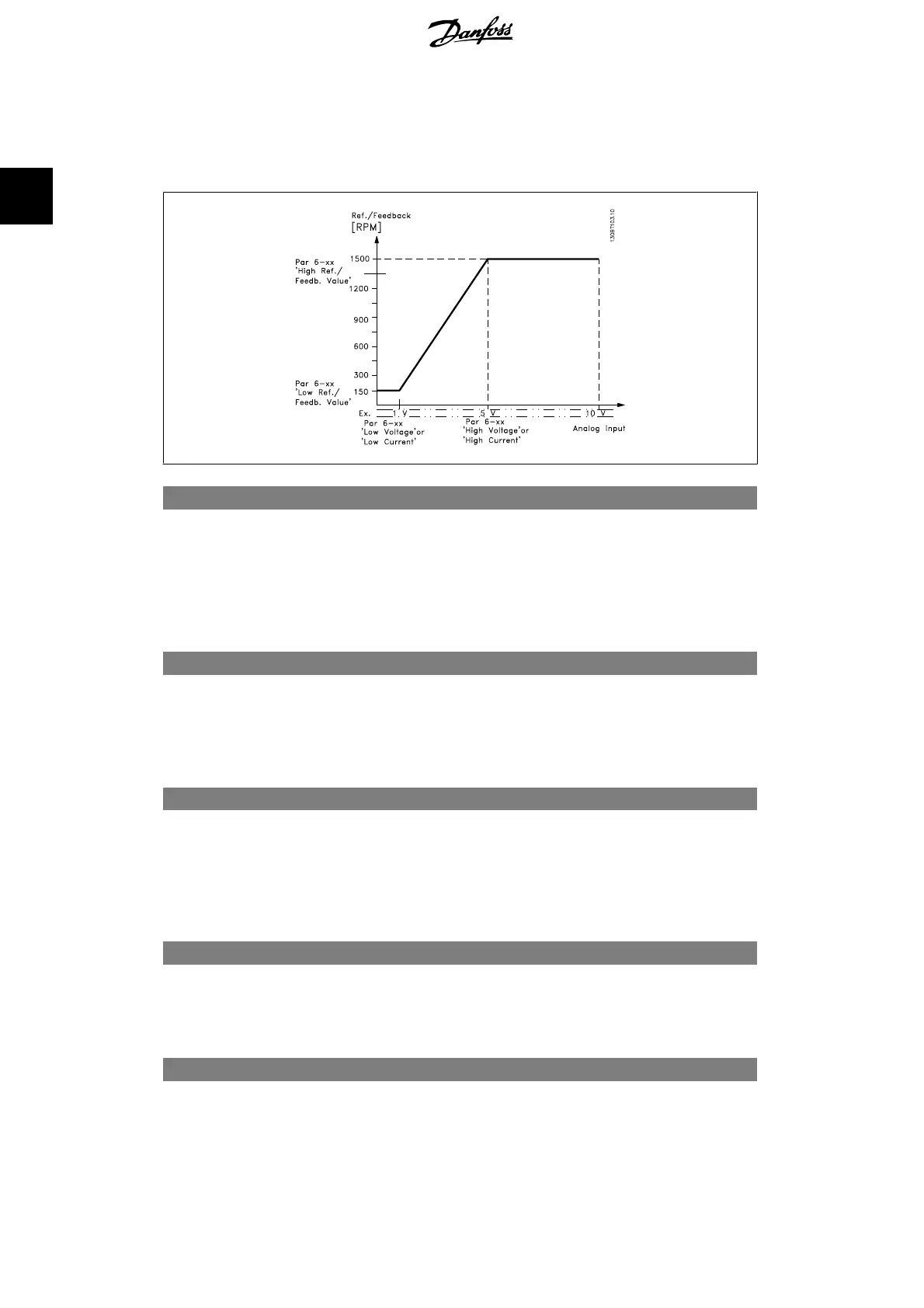

2.9.3. 6-1* Analog Input 1
Parameters for configuring the scaling and limits for analog input 1 (terminal 53).
6-10 Terminal 53 Low Voltage
Range: Function:
0.07 V
*
[FC 301: 0V - par.
6-11]
[FC 302: -10V - par.
6-11]
Enter the low voltage value. This analog input scaling value
should correspond to the minimum reference value, set in par.
6-14. See also the section
Reference Handling .
6-11 Terminal 53 High Voltage
Range: Function:
10.0V
*
[Par. 6-10 to 10.0 V] Enter the high voltage value. This analog input scaling value
should correspond to the high reference/feedback value set in
par. 6-15.
6-12 Terminal 53 Low Current
Range: Function:
0.14
mA
*
[0.0 to par. 6-13 mA] Enter the low current value. This reference signal should corre-
spond to the minimum reference value, set in par. 3-02. The
value must be set at >2 mA in order to activate the Live Zero
Time-out Function in par. 6-01.
6-13 Terminal 53 High Current
Range: Function:
20.0
mA
*
[ Par. 6-12 to - 20.0
mA]
Enter the high current value corresponding to the high refer-
ence/feedback set in par. 6-15.
6-14 Terminal 53 Low Ref./Feedb. Value
Range: Function:
0.000
Unit
*
[-1000000.000 to par.
6-15]
Enter the analog input scaling value that corresponds to the low
voltage/low current set in par. 6-10 and 6-12.
