[Status] indicates the status of the frequency converter and/or the motor. You can choose be-
tween 3 different readouts by pressing the [Status] key:
5 line readouts, 4 line readouts or Smart Logic Control.
Use [Status] for selecting the mode of display or for changing back to Display mode from either
the Quick Menu mode, the Main Menu mode or Alarm mode. Also use the [Status] key to toggle
single or double read-out mode.
[Quick Menu] allows quick access to different Quick Menus such as:
- My Personal Menu
- Quick Set-up
- Changes Made
- Loggings
Use [Quick Menu] for programming the parameters belonging to the Quick Menu. It is possible
to switch directly between Quick Menu mode and Main Menu mode.
[Main Menu] is used for programming all parameters.
It is possible to switch directly between Main Menu mode and Quick Menu mode.
Parameter shortcut can be carried out by pressing down the [Main Menu] key for 3 seconds.
The parameter shortcut allows direct access to any parameter.
[Alarm Log] displays an Alarm list of the five latest alarms (numbered A1-A5). To obtain addi-
tional details about an alarm, use the arrow keys to manoeuvre to the alarm number and press
[OK]. You will now receive information about the condition of your frequency converter right be-
fore entering the alarm mode.

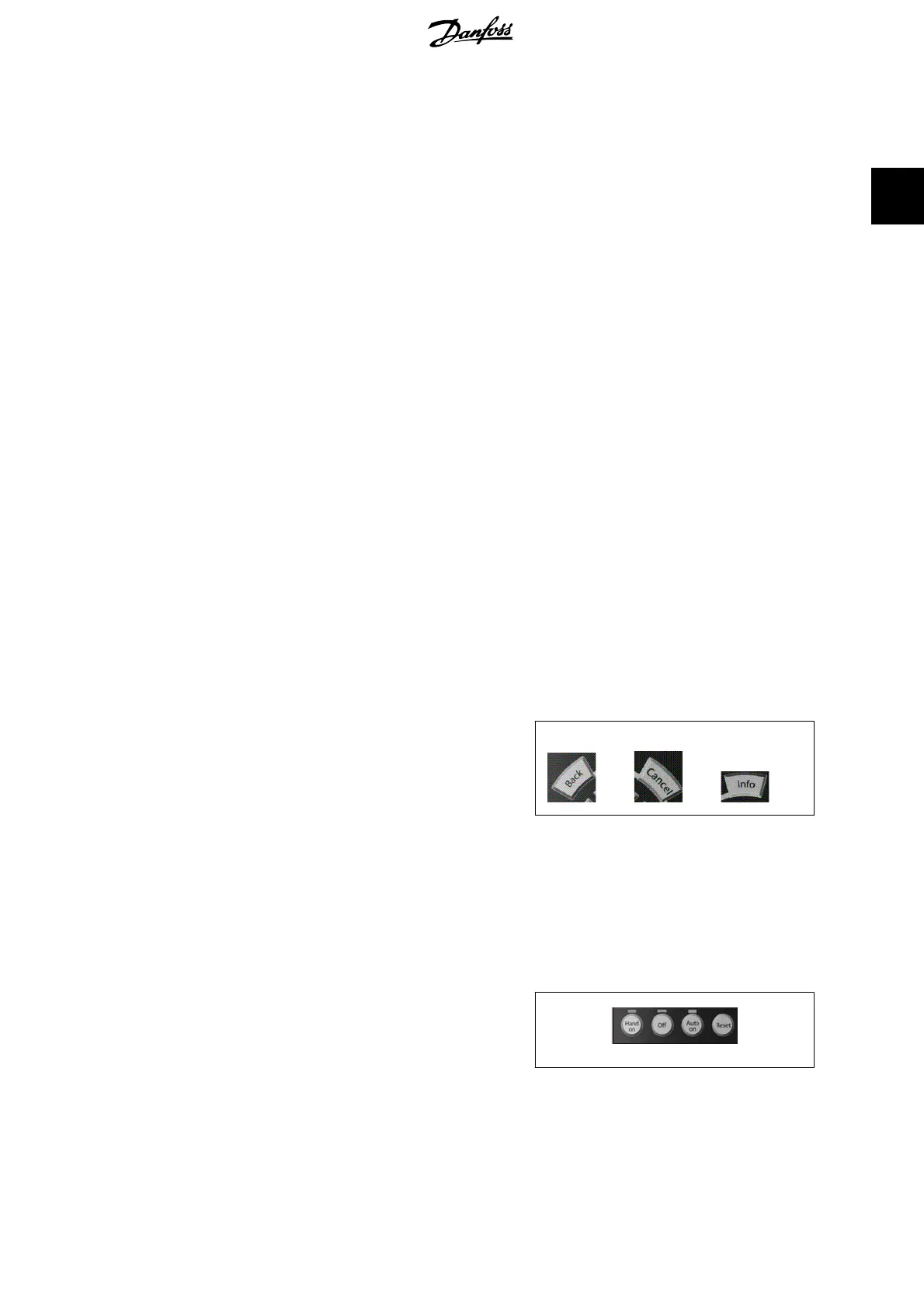

[Back] takes you to the previous step or layer in the navigation structure.
[Cancel] annuls your last change or command as long as the display has not been changed.
[Info] supplies information about a com-
mand, parameter, or function in any display
window. [Info] provides detailed information
whenever help is needed.
Exit info mode by pressing either [Info],
[Back], or [Cancel].
Navigation Keys
The four navigation arrows are used to navigate between the different choices available in [Quick
Menu], [Main Menu] and [Alarm Log]. Use the keys to move the cursor.
[OK] is used for choosing a parameter marked by the cursor and for enabling the change of a
parameter.
Local Control Key for local control are found
at the bottom of the control panel.
130BP046.1
[Hand On] enables control of the frequency converter via the LCP. [Hand on] also starts the
motor, and it is now possible to enter the motor speed data by means of the arrow keys. The key
can be selected as Enable [1] or Disable [0] via par.
0-40 [Hand on] key on LCP.
FC 300 Programming Guide 2. How to Programme
MG.33.M2.02 - VLT
®
is a registered Danfoss trademark
13
2
