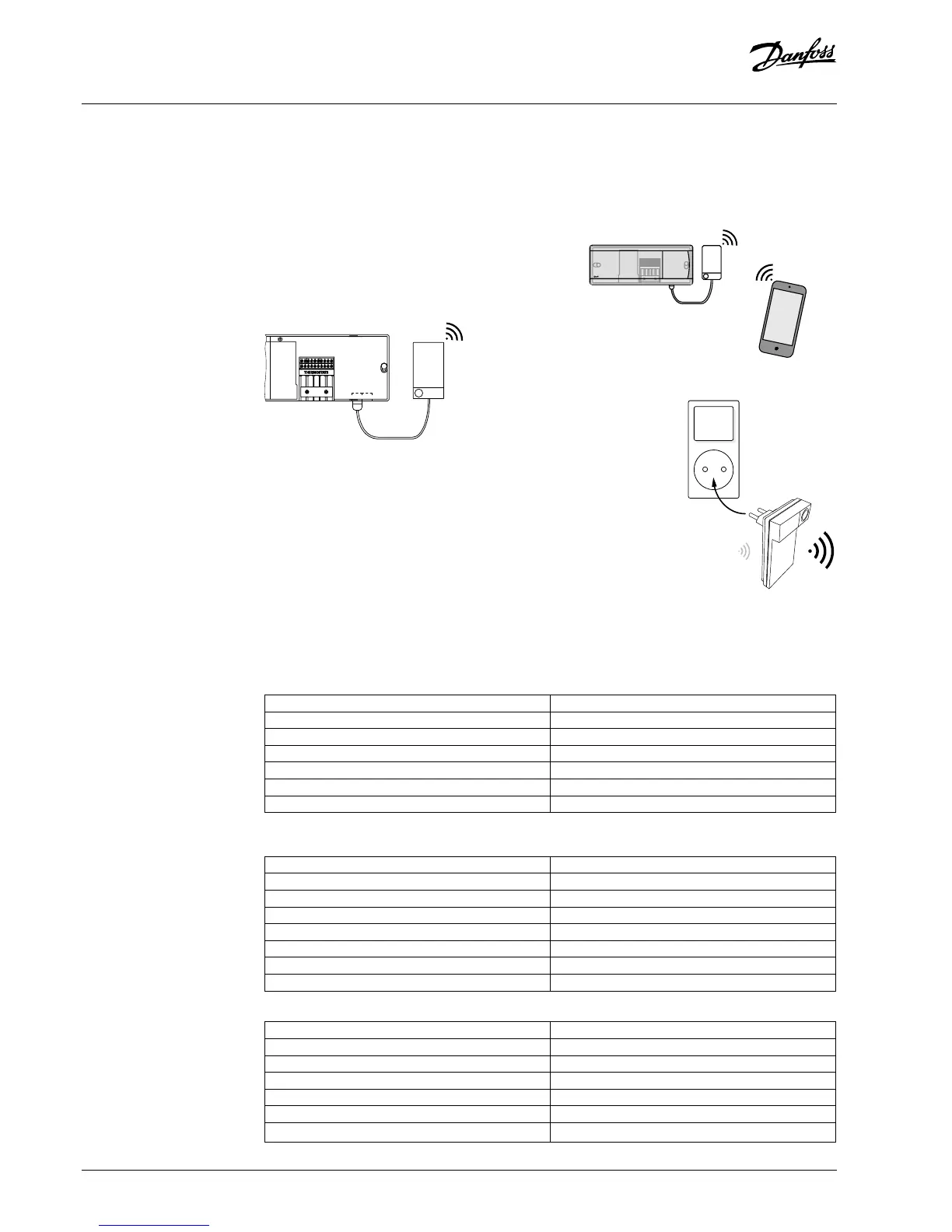

Installation Guide Danfoss Icon™ Master Controller 24 V
Add-on Modules
You can extend the functionalities of Danfoss
Icon™ Master Controller 24V with Add-on Modules.
Radio Module
By adding a Radio Module the Danfoss Icon™
Master Controller 24V is converted from a wired
to a wireless solution. The wireless solution
provides a higher degree of exibility in placing
the thermostats. In a wireless system, each Master
Controller must have it’s own Radio Module.
For more information, see the installation guide
supplied with the Radio Module.
Expansion Module
By installing an Expansion Module the Danfoss
Icon™ Master Controller 24V can be used with more
applications such as electronic mixing shunt control
or in cooling applications. Just install the Expansion
Module, choose the appropriate application
from a list and make the wiring according to the
description – then the conguration is made
automatically.
For more information, see the installation guide
supplied with the Expansion Module.
App Module
By adding an App Module to Danfoss Icon™ Master
Controller 24V the system enables app support
for control via smart phones (supports IOS and
Android). For more information, see the installation
guide supplied with the App Module.
Repeater
Add a repeater in
large buildings where
added wireless range
is needed. Set Master
Controller to INSTALL
mode to add a
repeater.
For more information,
see the installation
guide supplied with
the Repeater.
Technical data
Common characteristics, all Danfoss Icon™-products
Temperature for the ball pressure test 75 °C
Control polution degree Degree 2, normal household environment
Software class Class A
Rated impulse voltage 4 kV
Operating time Permanently connected
Temperature range, storage and transportation -20 °C to + 65 °C
Dispossal instructions The product must be disposed as electronic waste.
Full data sheet available at www.danfoss.com
Radio Module & Repeater
Purpose of control Transmitting and receiving device
Ambient temperature range, continious use 0 °C to + 40 °C
Frequency 869 MHz
Transmission power <2,5 mW
Encapsulation (IP Class) IP 20
Conformity declared acc. to following directives RED, RoHS, WEEE
Protection class Radio: Class III Construction Repeater: Class II Construction
Supply voltage Radio: 5 V DC Repeater: 230 V AC 50/60 Hz
App Module
Purpose of control Wi-Fi transmitting and receiving device, incl. Bluetooth
Ambient temperature range, continious use 0 °C to + 40 °C
Frequency 2,4 GHz
Encapsulation (IP Class) IP 20
Conformity declared acc. to following directives RED, RoHS, WEEE
Protection class Radio: Class III
Supply voltage 5 V DC
12 | © Danfoss | FEC | 2019.02
