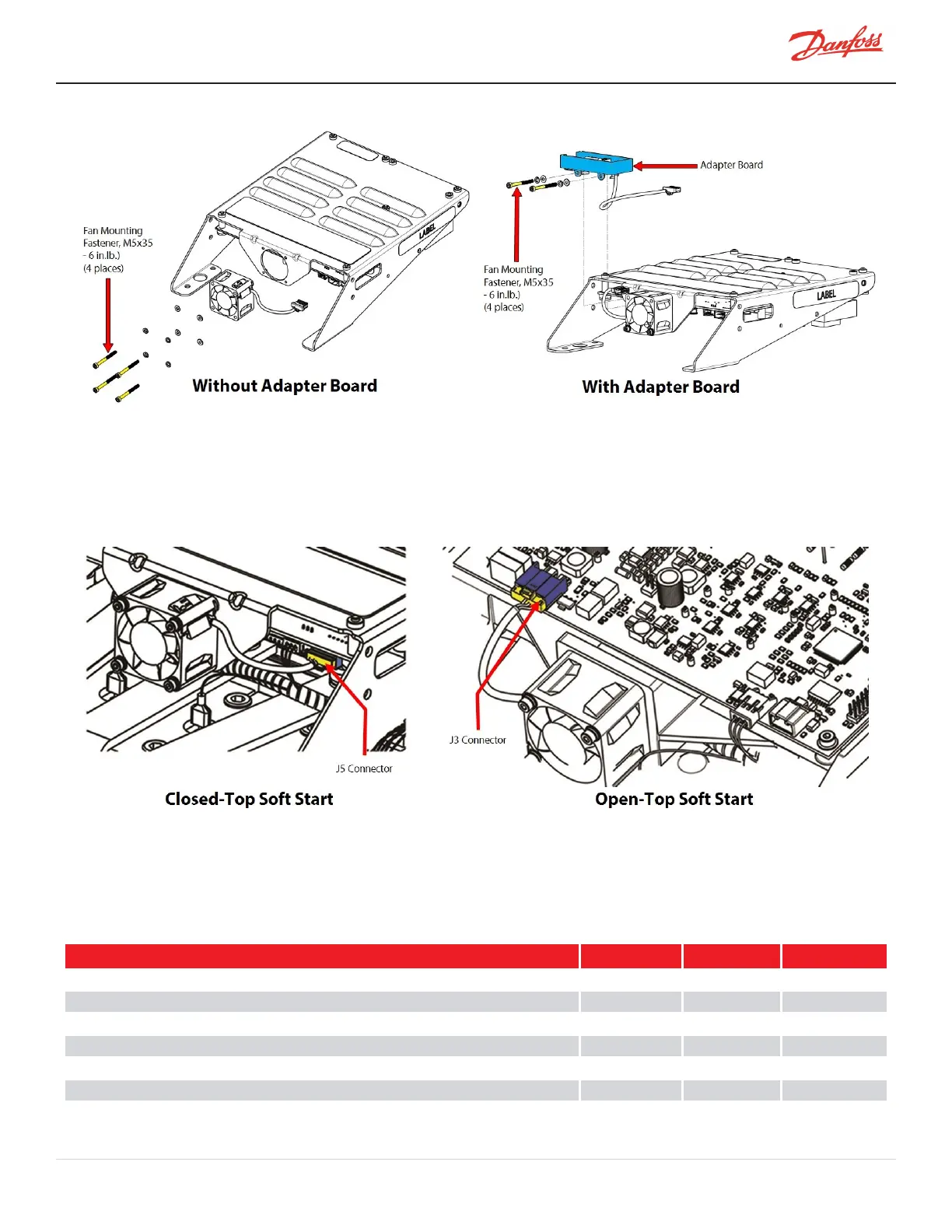

Figure 4-113 Soft Start Fan Installation

3. PlugtheconnectorofthenewfanintotheSoftStartBoard.RefertoFigure4-114SoftStartFan

Connector.

l

J5ontheClosed-TopSoftStart

l

J3ontheOpen-TopSoftStart

Figure 4-114 Soft Start Fan Connector

4. Installthetopcovers.RefertoSection4.1CompressorCoversonpage52.

5. Returnthecompressortonormaloperation.

4.14.10.1 Soft Start Torque Specifications

Table 4-25 Soft Start Torque Specifications

Description Nm Ft.Lb. In.Lb.

SoftStartfastener,M5x15orM5x20 5 - 44

SoftStartFanfastener,M5x35 - - 6

UpperNut,5/16"-18UNC 7 - 62

JamNut,5/16"-18UNC 7 - 62

LowerNut,5/16"-18UNC 20 15 177

CoverFastener,M5x15 1.5 - 13



M-SV-001-EN Rev. H-1/23/2023 Page 125 of 294
