4.18 Silicone-Controlled Rectifier

TheACinputvoltageisconnectedtotheSCRsbytheMainsInputbusbars.TheSCRsareusedtoconverttheAC

voltageintoDCvoltage.SCRsmaintainthehighvoltageDCbusnecessarytoprovidepowertotheInvertertorun

thecompressormotor.

UsingboththeACinputvoltageandtheDCvoltageoutputfromtheSCRs,theSoftStartBoardgeneratesthegate

signalandoutputspulsesof0-12VDCtotheSCRstocontrolthein-rushcurrentwhenpowerisinitiallyappliedto

thecompressor.ThisisusedwhiletheDCcapacitorsarechargingup.

TheDCbusvoltageoutputfromtheSCRsisapproximately1.35timesthatoftheACinputvoltage(460-900VDC).

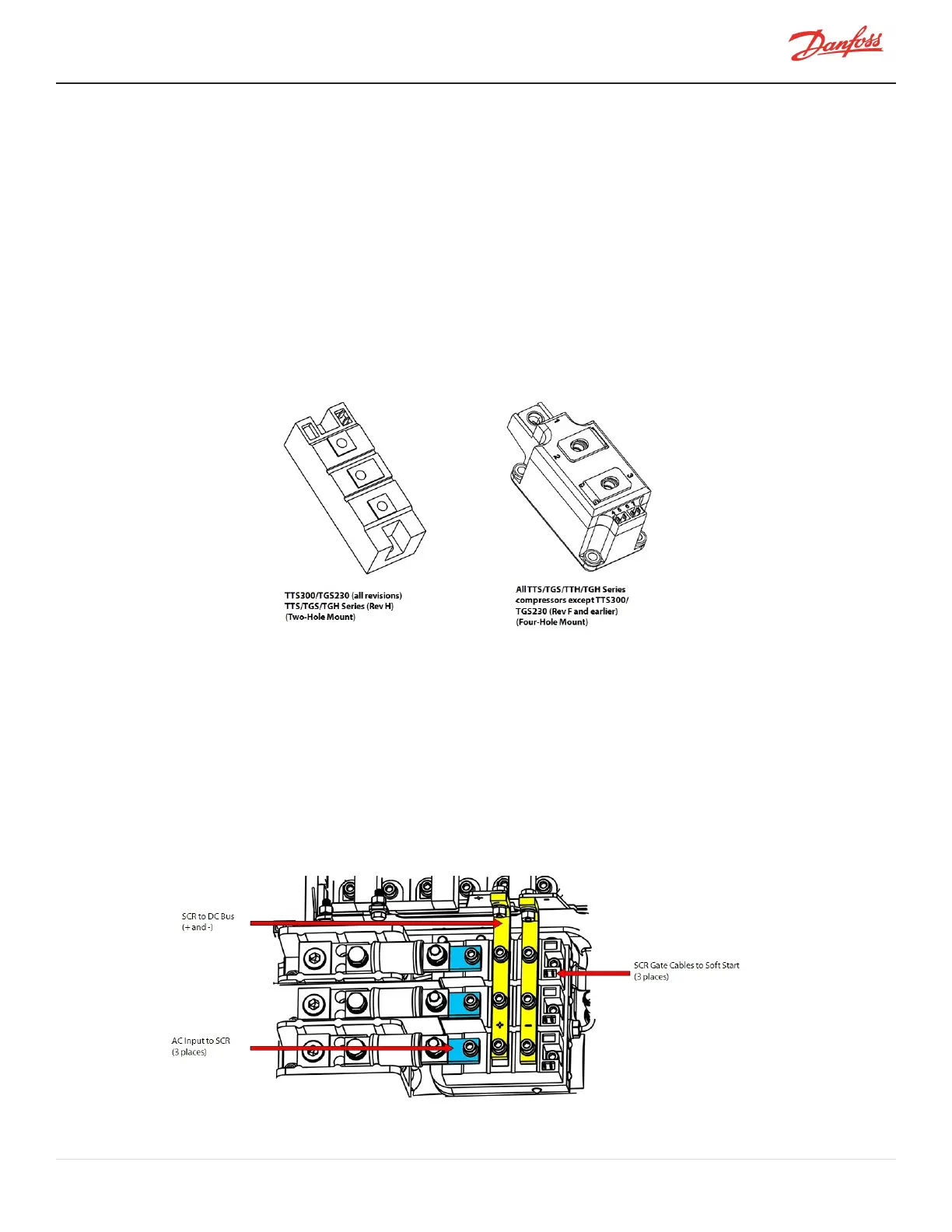

Therearetwo(2)differentstylesusedforthecompressors.RefertoFigure4-139SCRStylesforthevisualdifferences.



Figure 4-139 SCR Styles

4.18.1 SCR Connections

RefertoFigure4-140SCRConnections-TTS300/TGS230andFigure4-141SCRConnections-TTS/TGS/TTH/TGHRev.

FandEarlier(ExceptTTS300/TGS230)onpage142tolocatethefollowingconnectionstotheSCRs:

l

ACinputtoSCR

l

SCRGatecablestoSoftStart

l

SCRtoDCbus



Figure 4-140 SCR Connections - TTS300/TGS230


