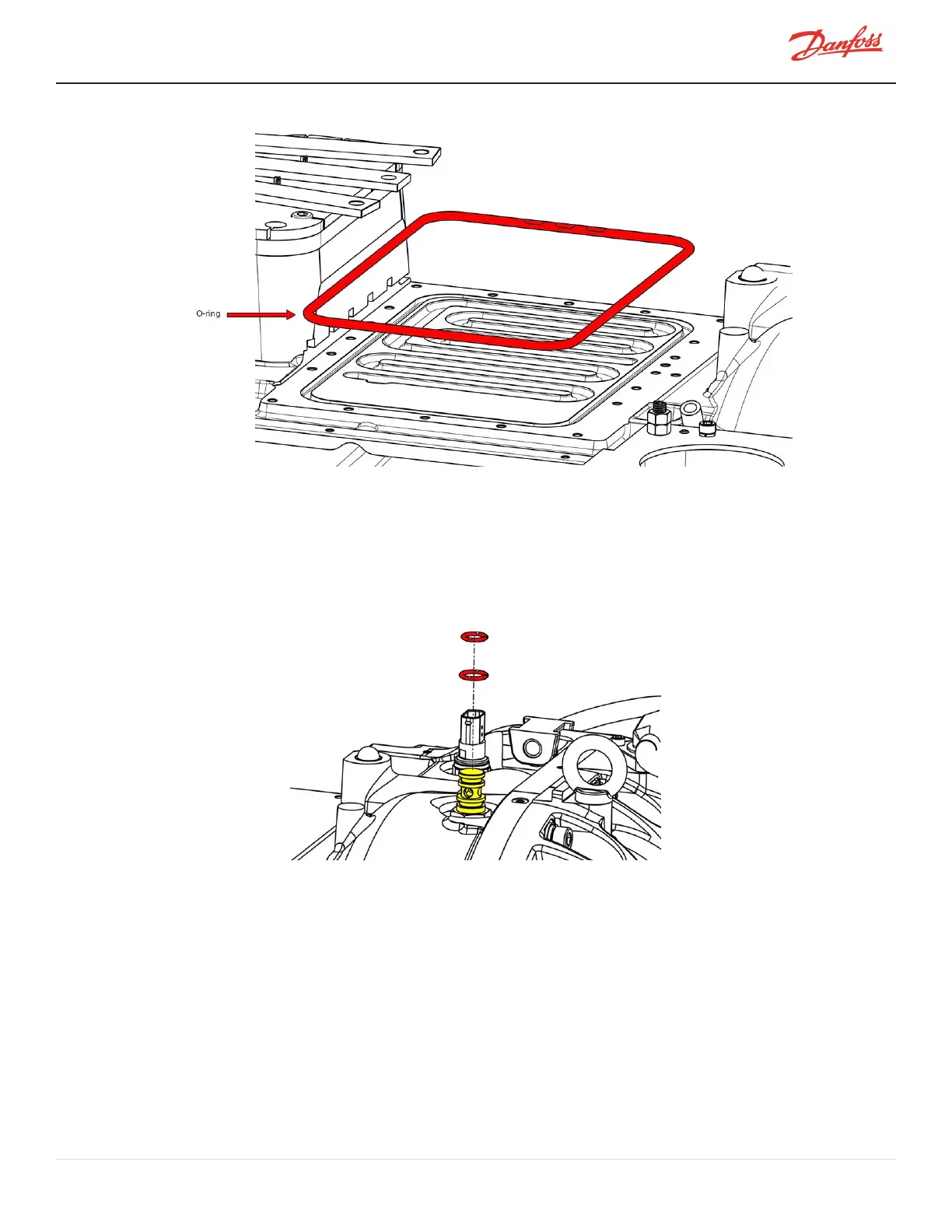

Figure 4-205 Inverter O-ring Removal - TTS/TGS/TTH/TGH (Except TTS300/TGS230)

25. Carefullyremovethetwo(2)O-ringsfromtheSCRManifoldReturnBrassFitting.Usecautiontonot
damagethesurfaceofthefitting.RefertoFigure4-206SCRManifoldReturnBrassFittingRemoval-
TTS/TGS/TTH/TGH(ExceptTTS300/TGS230)onpage185.
Figure 4-206 SCR Manifold Return Brass Fitting Removal - TTS/TGS/TTH/TGH (Except TTS300/TGS230)


4.22.6.3 Compressor Specific Inverter Installation Steps - TTS300/TGS230
1. CleanO-ringgrooveinthemaincompressorhousing.
2. ApplyO-LubetotheInverterO-ringandplacetheO-ringinthecompressorhousinggroove.
3. ApplyO-LubetotheO-ringsandinstallthemintotheSCRcoolingmanifold.RefertoFigure4-207SCR
CoolingManifoldO-ringInstallation-TTS300/TGS230.

