4.5 Compressor Controller Cable Harness
TheCompressorControllerCableHarnesspassessignalsfromthesensorsonthecompressortotheBackplane.The
followingstepsprovidedetailonhowtoreplacetheCompressorControllerCableHarness.Priortoremoval,note
thelocationoftheharnessroutingasthiswillminimizetheinstallationtimeofthenewharness.
4.5.1 Compressor Controller Cable Connections


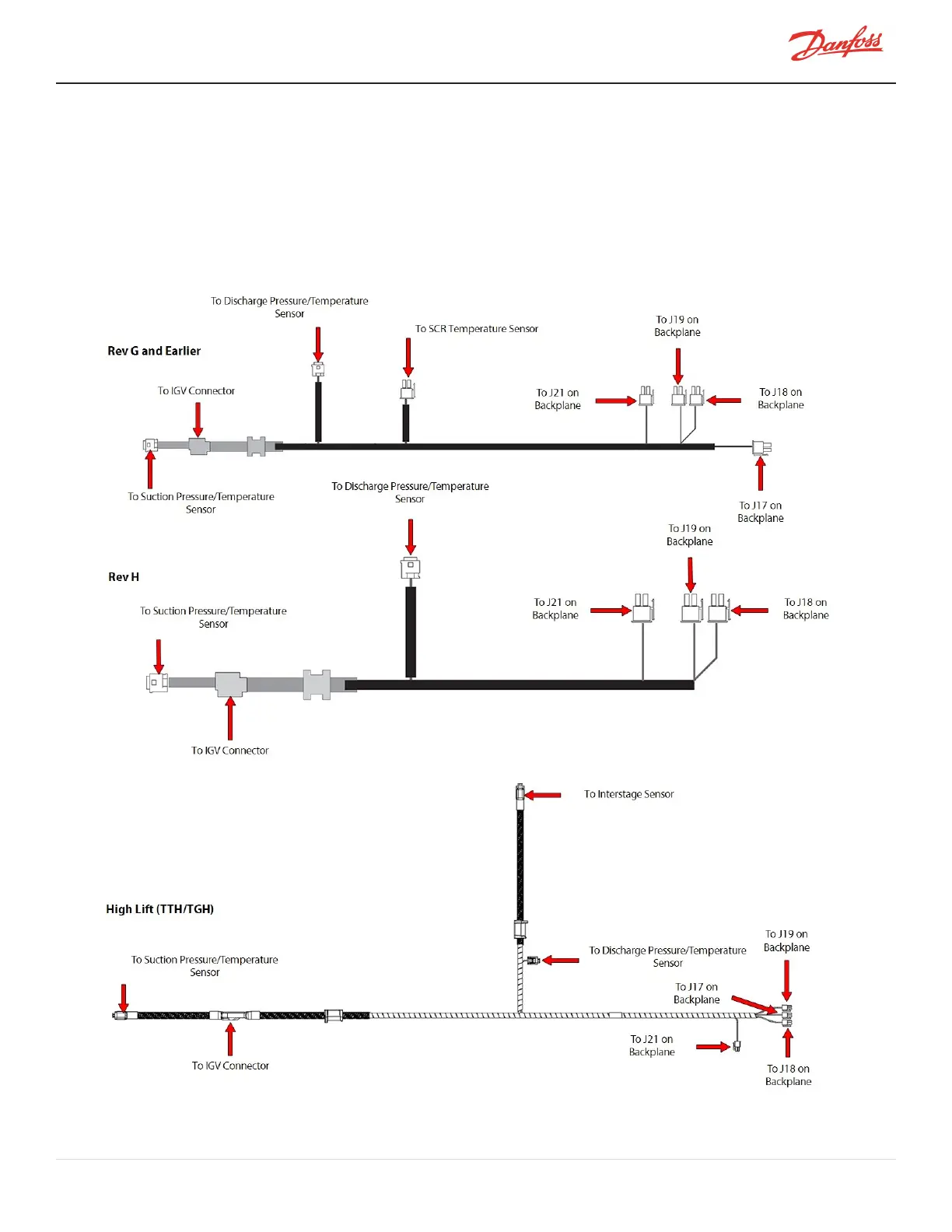

Figure 4-21 Compressor Controller Cable Harness Variants
M-SV-001-EN Rev. H-1/23/2023 Page 67 of 294
