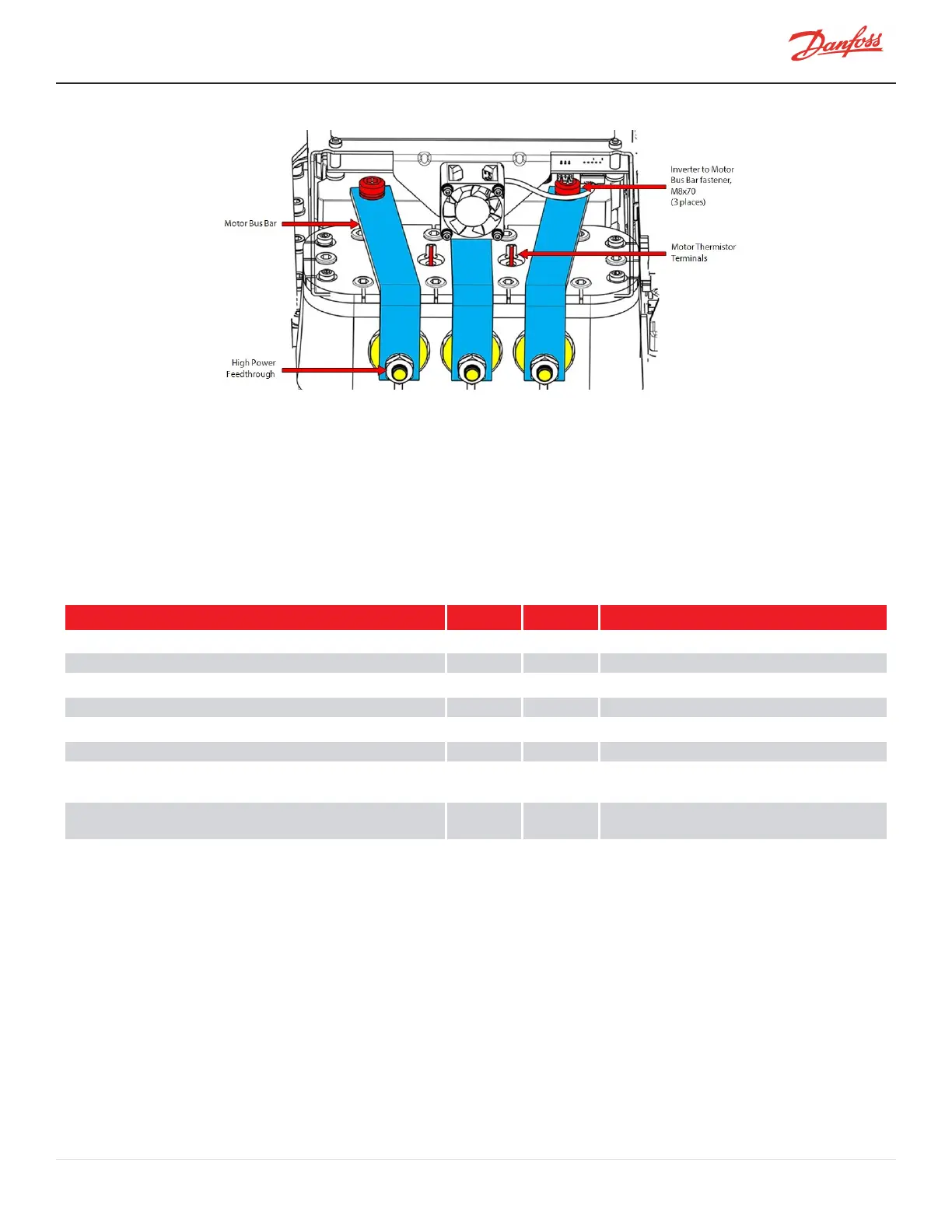

Figure 4-227 Connection to Stator
12. InstalltheMotorBusBars.RefertoSection4.23.5MotorComponentsRemovalandInstallationonpage
196.
13. InstalltheSoftStart.RefertoSection4.14.3SoftStartRemovalandInstallationonpage117.
14. Installthetopcovers.RefertoSection4.1CompressorCoversonpage52.
15. Returnthecompressortonormaloperation.
4.23.5.9 Motor Assembly Torque Specifications

Table 4-37 Motor Assembly Torque Specifications
Description Nm Ft.Lb. In.Lb.
SoftStartMountingfastener,M5X15 5 - 44
CoverPlatefastener,M8x25 18 13 159
High-PowerFeedthrough(bothstyles) 22 16 195
InvertertoMotorBusBarfastener,M8x70 14 10 124
MotorBusBartoFeedthroughFastener(PPSFeedthrough) 14 10 124
MotorBusBartoFeedthroughNut(Stainless-SteelFeedthrough) 15.5 11.5 137
High-PowerFeedthroughScrewtoRingTerminal(PPS
Feedthrough)
14 10 124
High-PowerFeedthroughNuttoRingTerminal(Stainless-Steel
Feedthrough)
15.5 11.5 137
CoverFastener 1.5 - 13

M-SV-001-EN Rev. H-1/23/2023 Page 203 of 294
