Danfoss TTS350

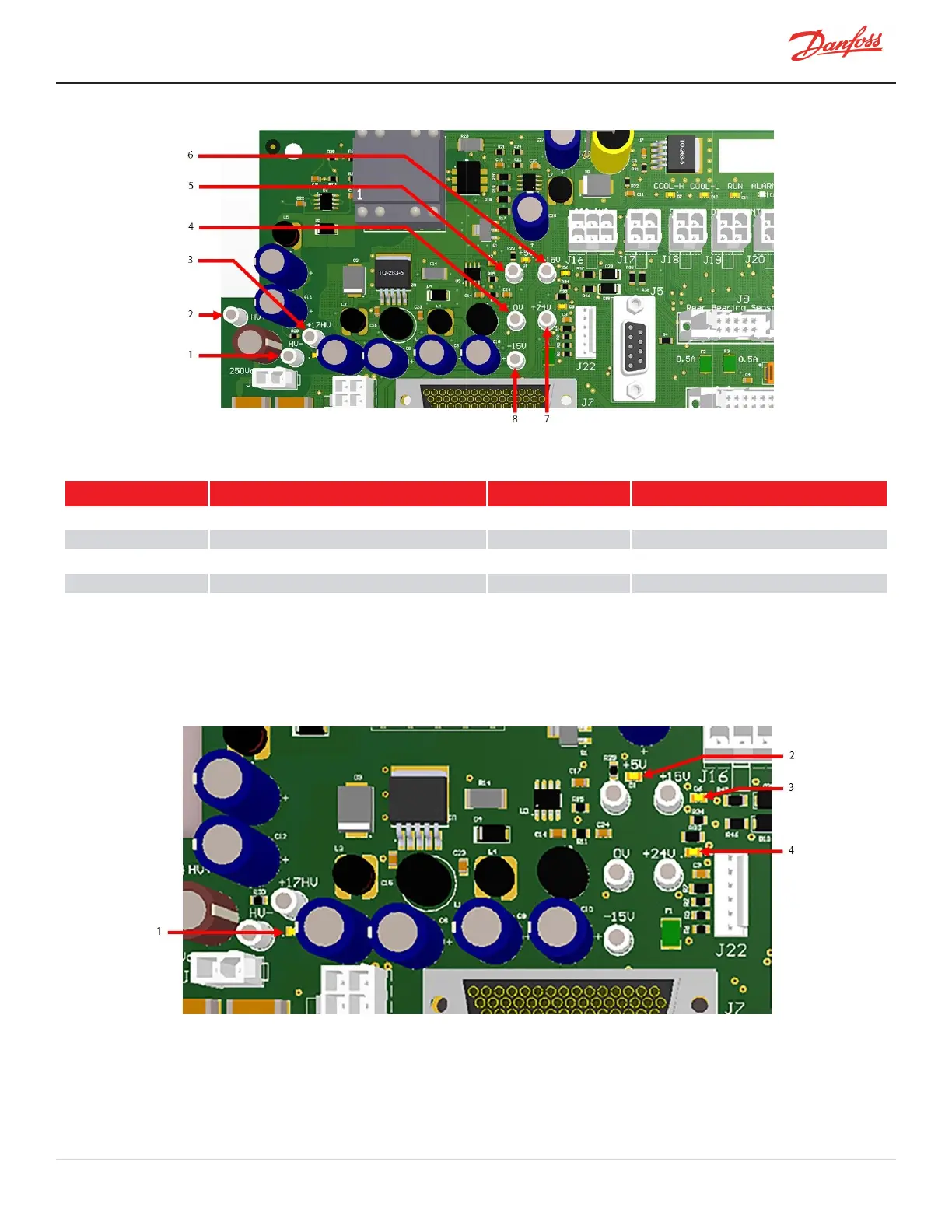

Figure 4-239 Backplane Test Points
Table 4-40 Backplane Test Points
No. Component No. Component
1 HV-TestPoint 5 +5VTestPoint
2 HV+TestPoint 6 +15VTestPoint
3 +17HVTestPoint 7 +24VTestPoint
4 0VTestPoint 8 -15VTestPoint

4.25.2.1 LED Locations
TheBackplaneLEDsareindicatedinFigure4-240BackplaneLEDLocations-LeftSideandFigure4-241Backplane
LEDLocations-RightSideonpage214.
Figure 4-240 Backplane LED Locations - Left Side

M-SV-001-EN Rev. H-1/23/2023 Page 213 of 294
