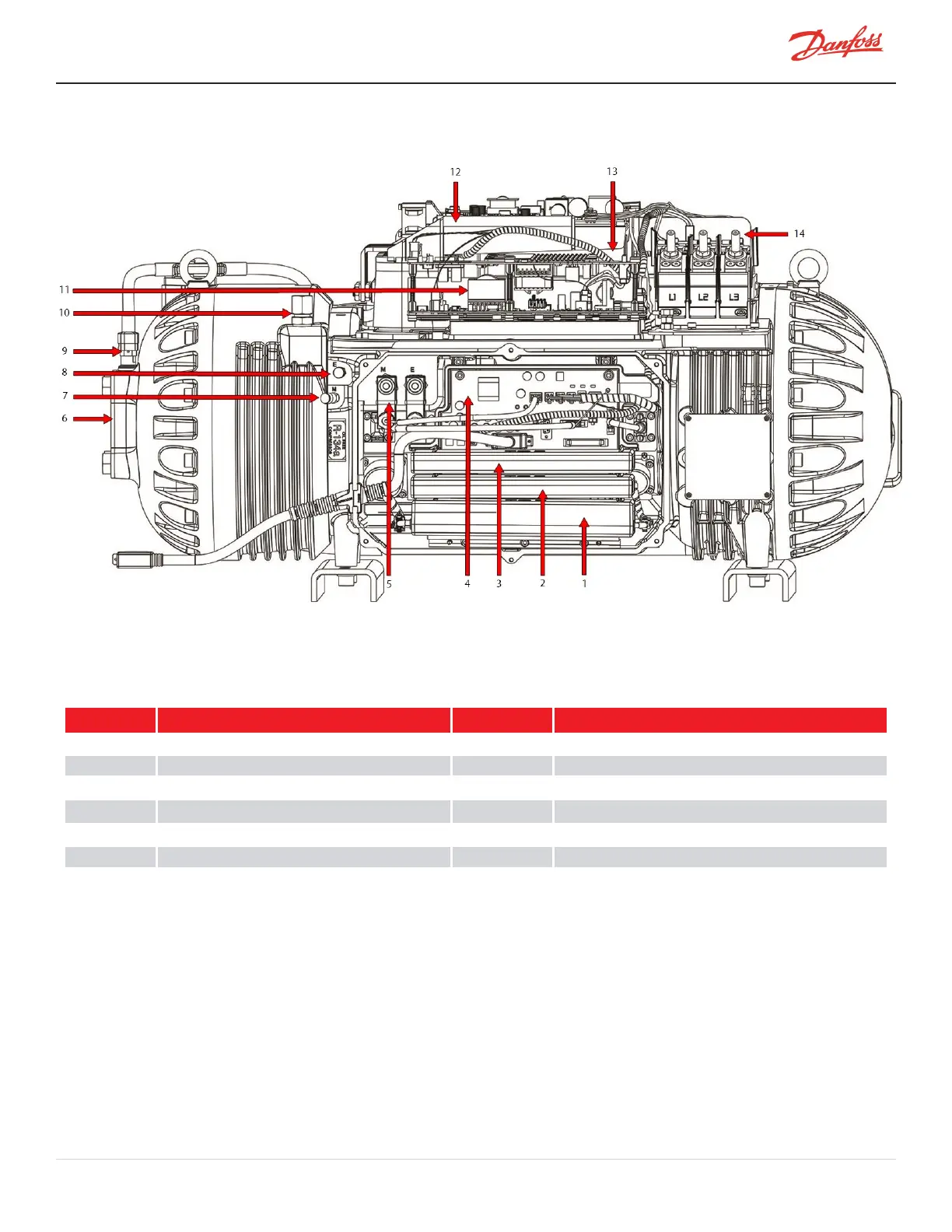

Figure 4-3 Compressor Component Identification (TTH/TGH Only)



Table 4-3 Compressor Components Service Side (TTH/TGH Only)

No. Component No. Component

1 PWMAmplifier 8 CompressorCoolingAccessPort

2 BMCC 9 SuctionPressure/TemperatureSensor

3 SerialDriver 10 CoolingInletAdapter

Backplane

11 DC-DCConverter

5 Motor-CoolingSolenoids 12 SoftStart

6 IGVSuctionPort 13 Inverter

7 CompressorCoolingAccessPort 14 ACMainsBusBars





M-SV-001-EN Rev. H-1/23/2023 Page 49 of 294
