Danfoss TTS350

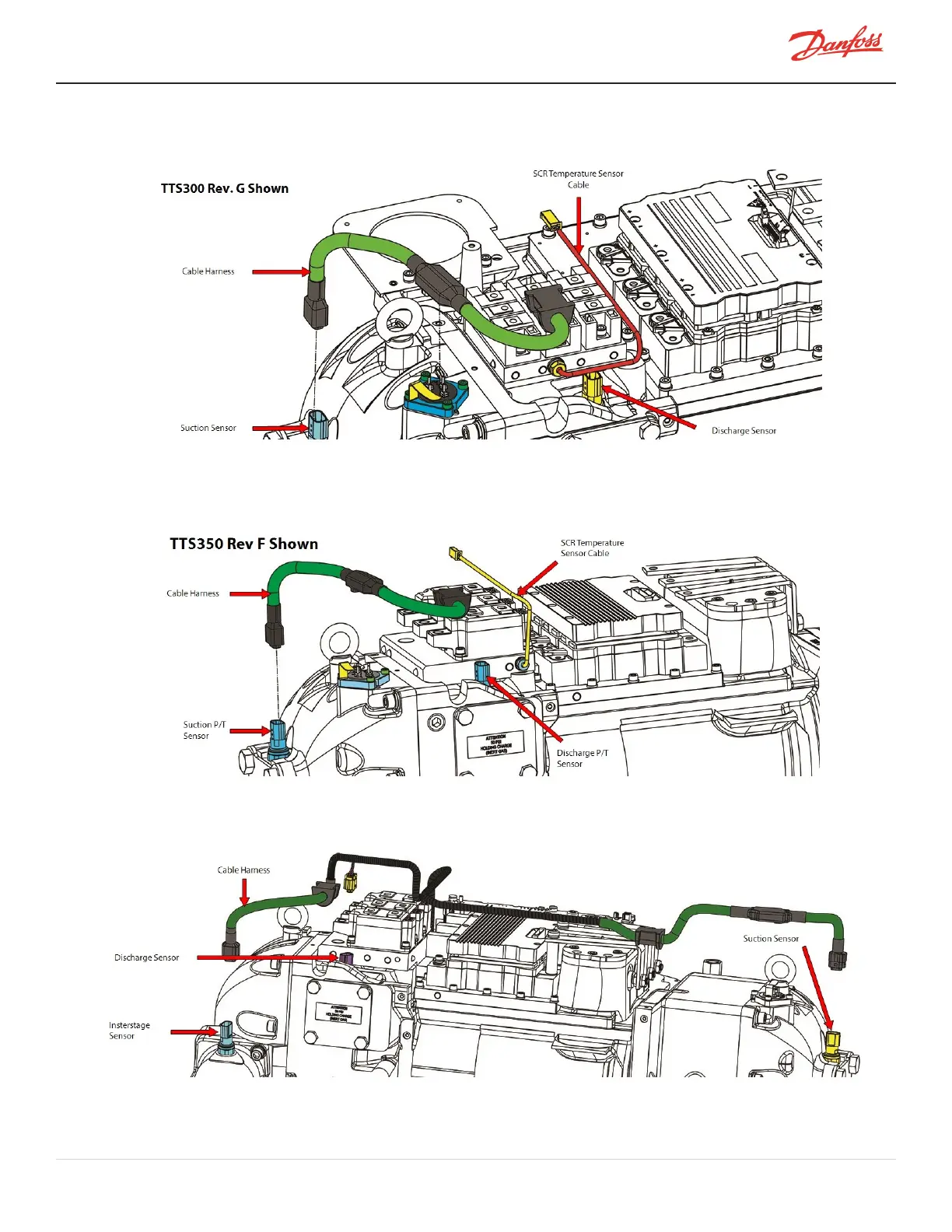

Figure 4-23 Pressure/Temperature and SCR Temperature Sensor Locations - TTS300/TGS230


Figure 4-24 Pressure/Temp and SCR Temp Sensor Locations - TTS/TGS (Except TTS300/TGS230)

Figure 4-25 Pressure/Temperature Sensor Locations - TTH375/TGH285

M-SV-001-EN Rev. H-1/23/2023 Page 69 of 294
