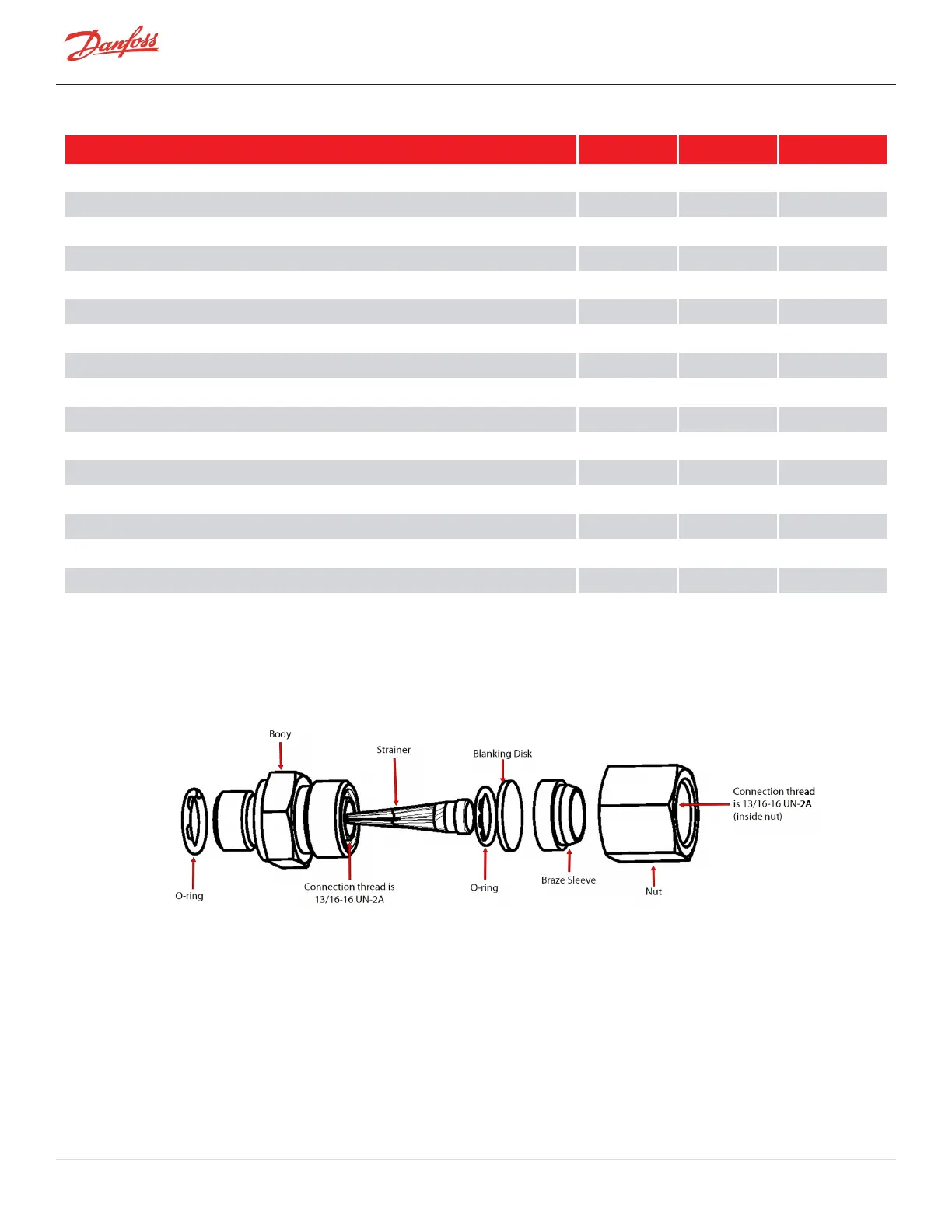

Table 16-4 Torque Specifications
Description Nm Ft.Lb. In.Lb
IGVand End Bell Fasteners 25 18 221
Pressure/Temp Sensor 10 7 89
IGV Power Feedthrough 5 4 44
Bearing Power and Sensor Feedthroughs 5 4 44
Cavity Sensor E-Housing and Later 13 10 115
SCR Mounting Fasteners 7 5 62
A/C Bus Bars 6 4 53
DCCapacitors and Bleed Resistors 2 1 18
Inverter Mounting Fasteners 6 4 53
Schaeder Valves 13 10 115
Motor Cooling Body (Body Nut), E-Housing and Later* 25 18 221
Motor Cooling Compression Nut, E-Housing and Later* 11 8 97
Cover Plate 13 10 115
Hermetic Feedthrough 22 16 195
Motor Cooling Brass Orifice 7 5 62
Motor Cooling Plunger 4 3 35
TT300 Mains Termination 31 23 274
*Check figure below for details
Figure 16-23 Motor Cooling Fitting
Page 108 of 136 - M-AP-001-EN Rev. S 9/8/2021
