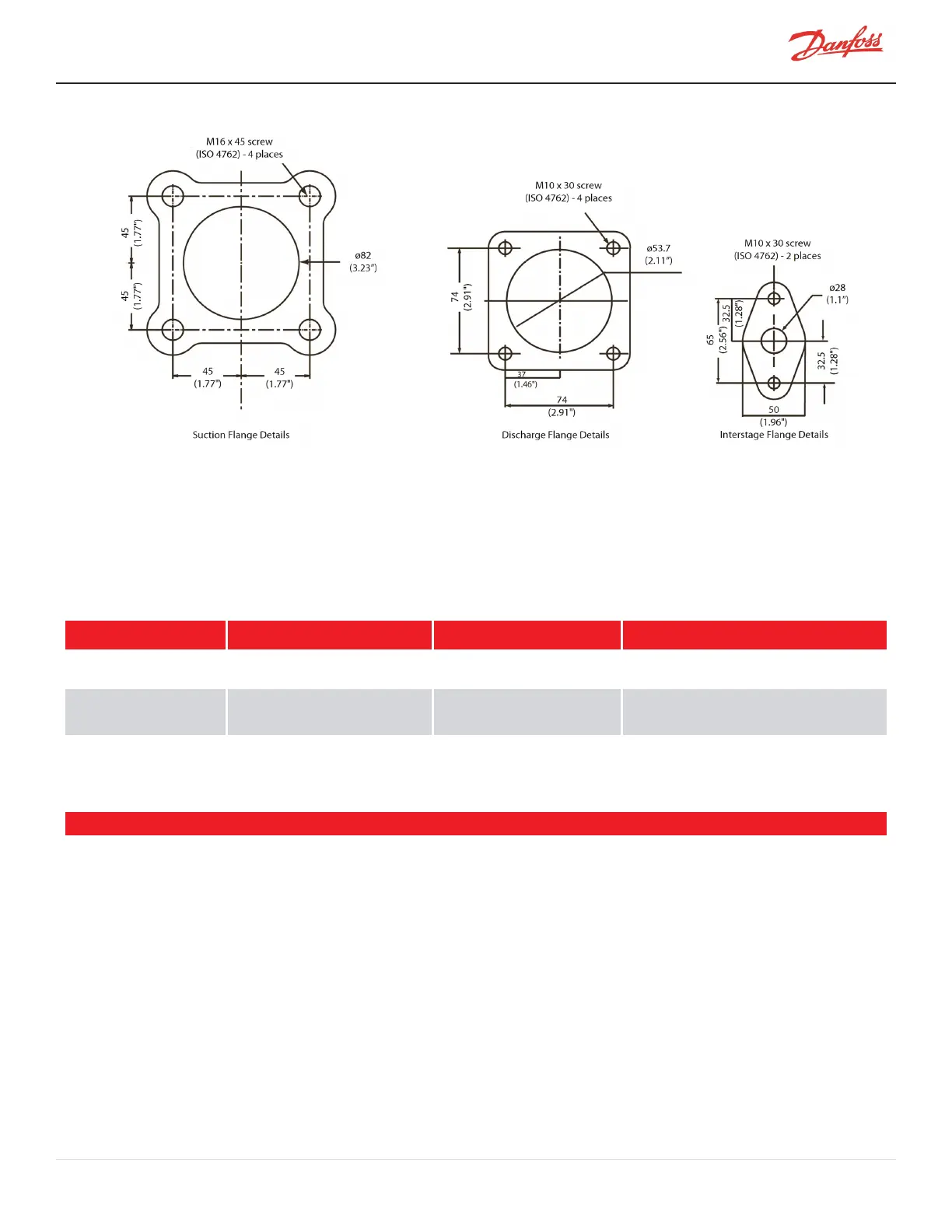

Figure 16-22 TTS700, TGS490, and TGS520 Flange Footprint Details
Table 16-3 Screw Hole Specifications
Port Fastener Thread Spec Thread Depth (mm) Recommended Torque (Nm)
Suction M16 34.5 75
Discharge M10 20 32
Economizer M10 20 32
• • • CAUTION • • •
Refer to the manufacturer fastener specifications and torque as required, but do not exceed the torque values listed in Table 16-3 Screw
Hole Specifications." If this value is exceeded, damage to compressor housing threads may occur.
M-AP-001-EN Rev. S-9/8/2021 Page 107 of 136
