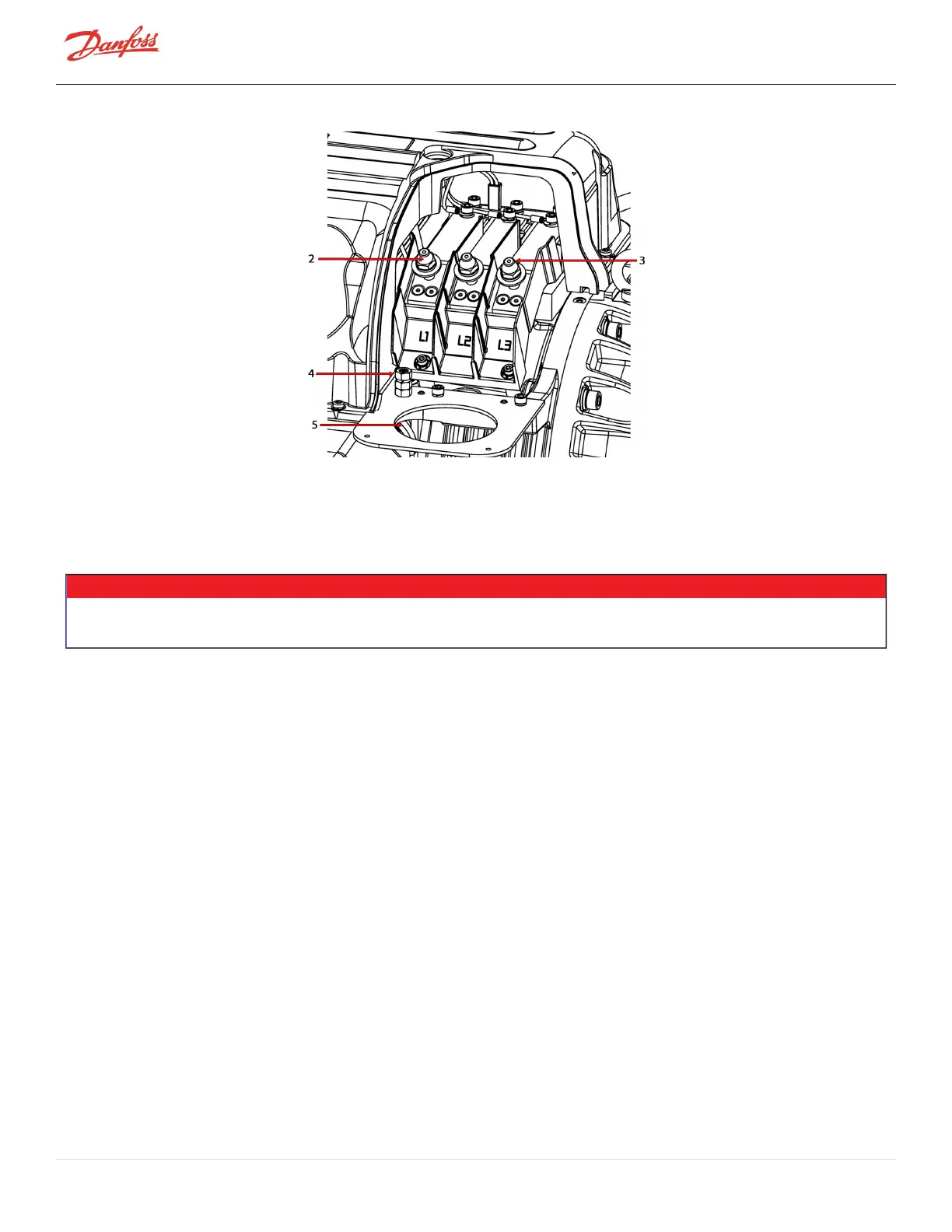

Figure 20-12 All TTS/TGS/TTH/TGH Models, Revision H (Except TTS300/TGS230)
9. The three 3/8”-16 nuts on all other compressors (excluding TTS300/TGS230 compressors) will need to
be torqued to 21 Nm (15 ft-lbs).
NOTE
The bore size of the Terminal Block Adapter (TTS300 and TGS230 only) is 18 mm, therefore the maximum wire diameter must not exceed
that size.
10. Tighten the gland nut to secure the cable to the mains input bracket.
11. Seal any gaps between the cabling and the mains input bracket to minimize any dust ingress into the
compressor.
12. Replace the Mains Input Cover and secure it with the fasteners.
Page 124 of 136 - M-AP-001-EN Rev. S 9/8/2021
