Figure 20-10 Ground Post Nuts
8. The three compression lugs on the TTS300/TGS230 compressors need to be torqued to 20 Nm (15 ft-
lbs).

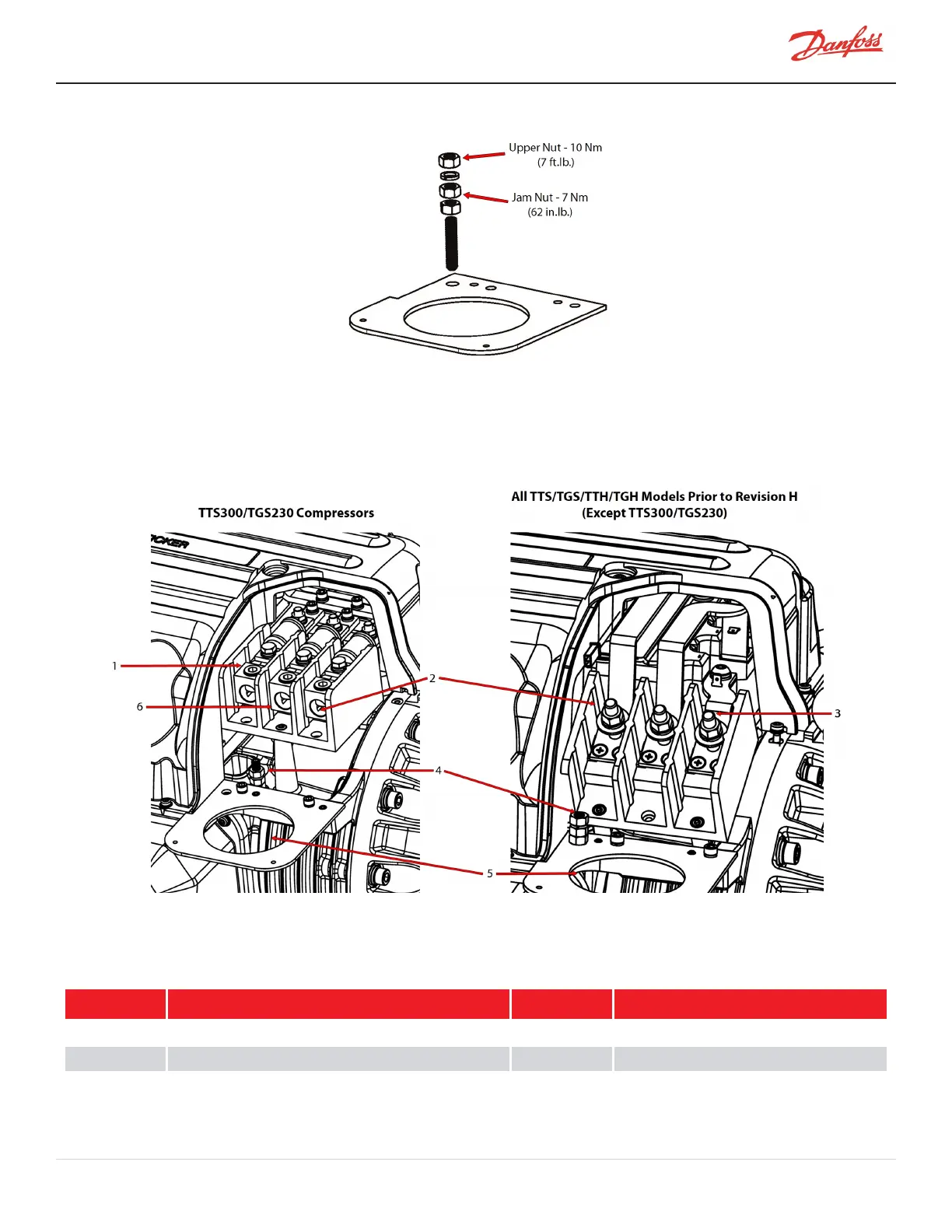

Figure 20-11 Compressor AC Input Terminals
Refer to Table 20-2 Compressor ACInput Terminals for the descriptions of the items shown in Figure 20-11
Compressor AC Input Terminals and Figure All TTS/TGS/TTH/TGH Models, Revision H (Except TTS300/TGS230).
Table 20-2 Compressor ACInput Terminals
No. Description No. Description
1 Mains Input Pressure Screw 4 Upper Jam Nut
2 ACInput Connection 5 Seal Bracket Opening
3 Mains Stud - 3/8-16 - 1.5" long 6 Terminal Block Adapter
M-AP-001-EN Rev. S-9/8/2021 Page 123 of 136
