Danfoss Turbocor TTS Series Applications And Installation Manual

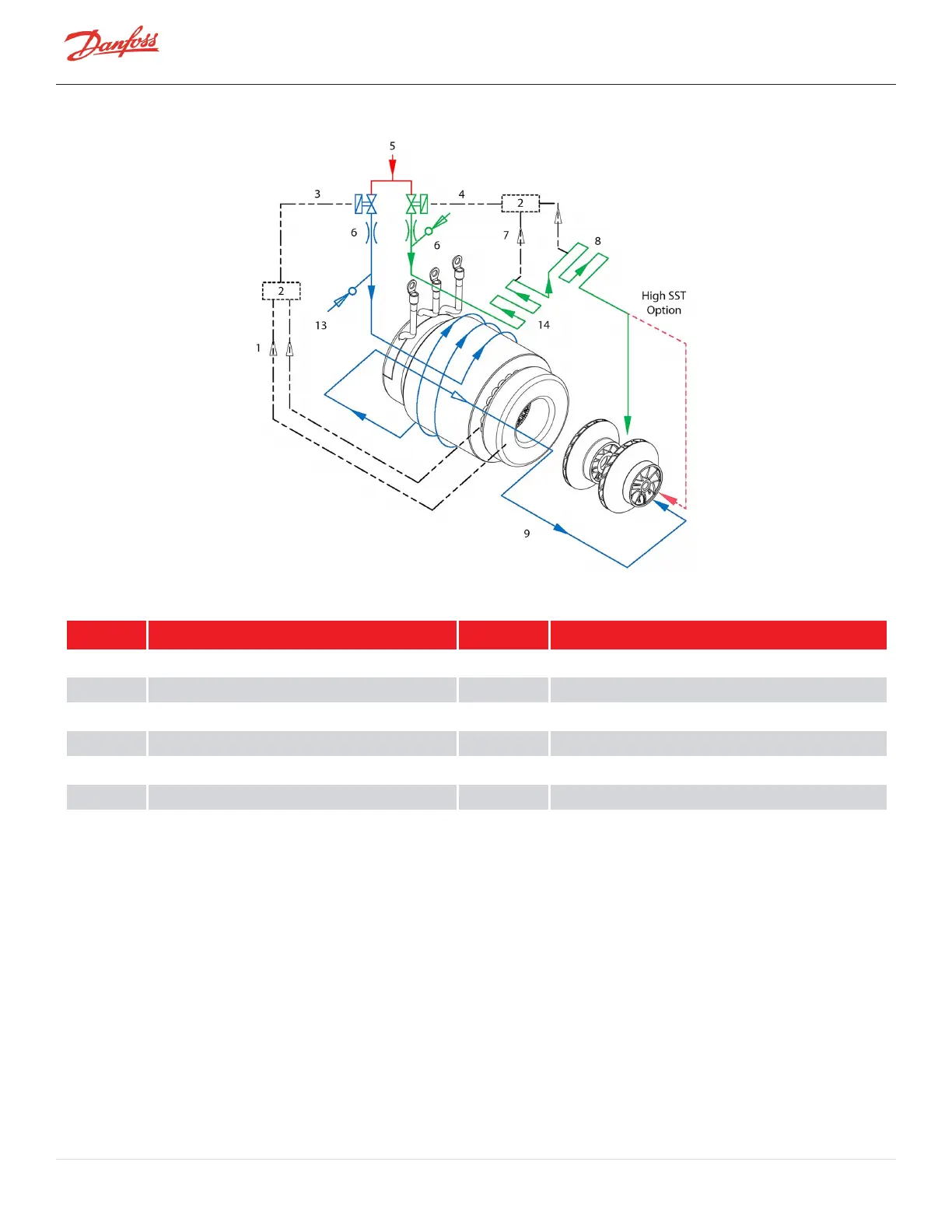

Figure 3-4 Compressor Cooling Circuit (TTS300 Split-Cooling, TGS310, TTS350, TGS390, TGS490, TTS400, TTS700, and TGS520)
Table 3-4 Compressor Cooling Circuit (TTS300 Split-Cooling, TGS310, TTS350, TGS390, TGS490, TTS400, TTS700, and TGS520)
No. Description No. Description
1 From Motor Winding Temp Sensor 7 From Inverter Temp Sensor
2 BMCC 8 SCR
3 Solenoid M 9 Motor/Rotor Cooling Gas and Leakage
4 Solenoid E 10 From Motor Cavity Temp Sensor
5 Liquid Refrigerant Inlet 11 Inverter
6 Orifice
Page 28 of 136 - M-AP-001-EN Rev. S 9/8/2021
