VFD500 high performance vector control frequency inverter user manual Chapter 5 function code table
P01.10
Action when set
frequency lower than
lower limit frequency
0：Run at low limit frequency
1：Stop after delaying P01.11
2：Run at zero speed
The inverter will coast to stop when the set
frequency is lower than the lower-limit one.if
the set frequency is above the lower limit one
again and it lasts for the time set byP01.11, the
inverter will come back to the running state
automatically.
0
★
P01.11
Delay time when set
frequency lower than
lower limit frequency
0.000s
★
P01.12
Jump frequency start
up protection
Unit/ten/hundred’digit：three jump frequency
1/2/3
0：Disable
1：Enable (avoid risk speed)
000
☆
P01.13
Jump frequency 1 lower
limit
0.00Hz～(P01.14)
0.00Hz
☆
P01.14
Jump frequency upper
limit
P01.13- (P01.06)Maximum frequency
0.00Hz
☆
P01.15
Jump frequency 2 lower
limit
0.00Hz～(P01.16)
0.00Hz
☆
P01.16
Jump frequency 2
upper limit
P01.15～maximum frequency(P01.06)
0.00Hz
☆
P01.17
Jump frequency 3 lower
limit
0.00Hz～(P01.18)
0.00Hz
☆
P01.18
Jump frequency 3
upper limit
P01.17～maximum frequency(P01.06)
0.00Hz
☆

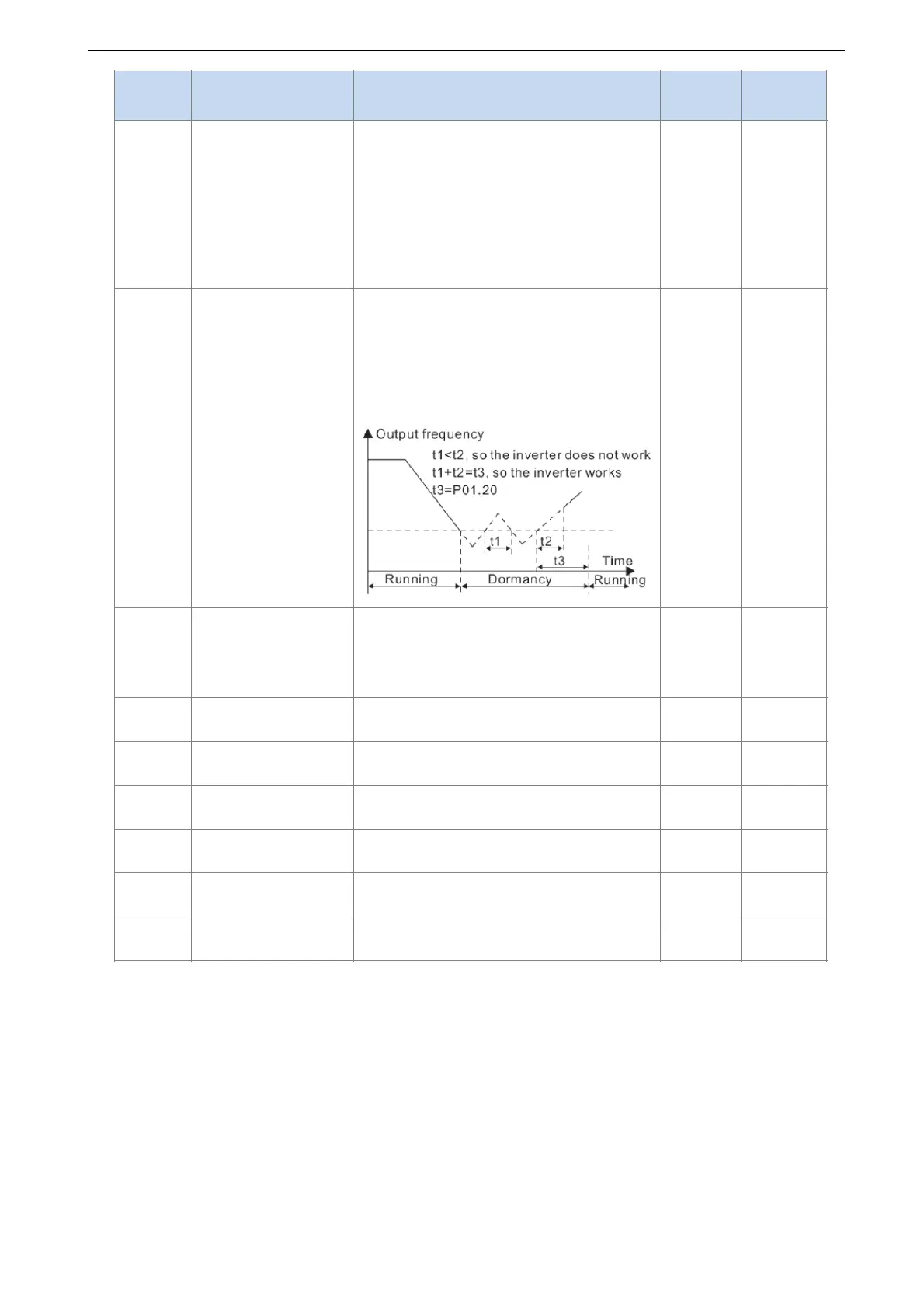

Function
code
Parameter name
Description
Default
Property
0.000s～30.000s
This function code determines the hibernation
delay time. When the running frequency of the
inverter is lower than the lower limit one, the
inverter will stop to stand by.
When the set frequency is above the lower limit
one again and it lasts for the time set by
P01.11, the inverter will run automatically.
!
