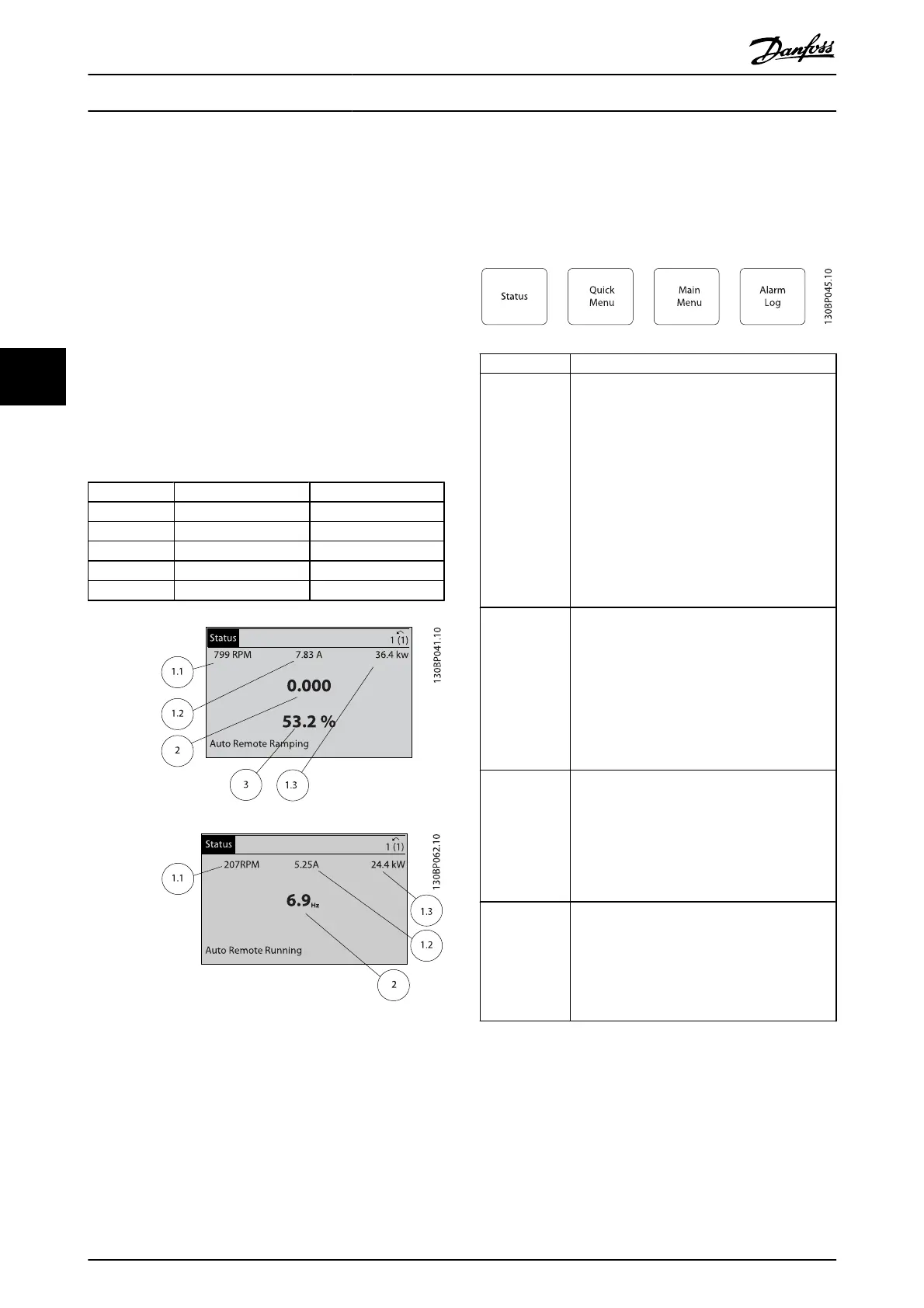

4.1.2 Setting LCP Display Values
The display area is activated when the frequency converter
receives power from mains voltage, a DC bus terminal, or an
external 24V supply.
The information displayed on the LCP can be customized for
user application.
•
Each display readout has a parameter associated
with it.
•
Options are selected in main menu 0-2*
•
The frequency converter status at the bottom line
of the display is generated automatically and is not
selectable. See 7 Status Messages for definitions and
details.
Display Parameter number Default setting
1.1 0-20 Speed [RPM]
1.2 0-21 Motor Current
1.3 0-22 Power [kW]
20-23Frequency
3 0-24 Reference [%]
4.1.3 Display Menu Keys
Menu keys are used for menu access for parameter set-up,
toggling through status display modes during normal
operation, and viewing fault log data.
Key Function
Status Press to show operational information.
•
In Auto mode, press and hold to toggle
between status read-out displays
•
Press repeatedly to scroll through each status
display
•
Press and hold [Status] plus [
▲
] or [
▼
] to
adjust the display brightness
•
The symbol in the upper right corner of the
display shows the direction of motor rotation
and which set-up is active. This is not
programmable.
Quick Menu Allows access to programming parameters for
initial set up instructions and many detailed
application instructions.
•
Press to access Q2 Quick Setup for sequenced
instructions to program the basic frequency
controller set up
•
Follow the sequence of parameters as
presented for the function set up
Main Menu Allows access to all programming parameters.
•
Press twice to access top-level index
•
Press once to return to the last location
accessed
•
Press and hold to enter a parameter number
for direct access to that parameter
Alarm Log Displays a list of current warnings, the last 10
alarms, and the maintenance log.
•
For details about the frequency converter
before it entered the alarm mode, select the
alarm number using the navigation keys and
press [OK].
User Interface
VLT
®
AutomationDrive Operating
Instructions
28 MG.33.AJ.02 - VLT
®
is a registered Danfoss trademark
4
4

Danfoss VLT AutomationDrive Specifications

General

Supply Voltage	3 x 200-240 V ±10% 3 x 380-500 V ±10% 3 x 525-600 V ±10%
Enclosure	IP20
Output Power Range	0.25 kW - 1.5 MW
Communication Protocols	Modbus RTU
Protection Features	Overcurrent, Overvoltage, Undervoltage, Short circuit, Ground fault, Motor overload
Ambient Temperature Range	-10°C to +50°C (14°F to 122°F)
