Danfoss VLT AutomationDrive User Manual

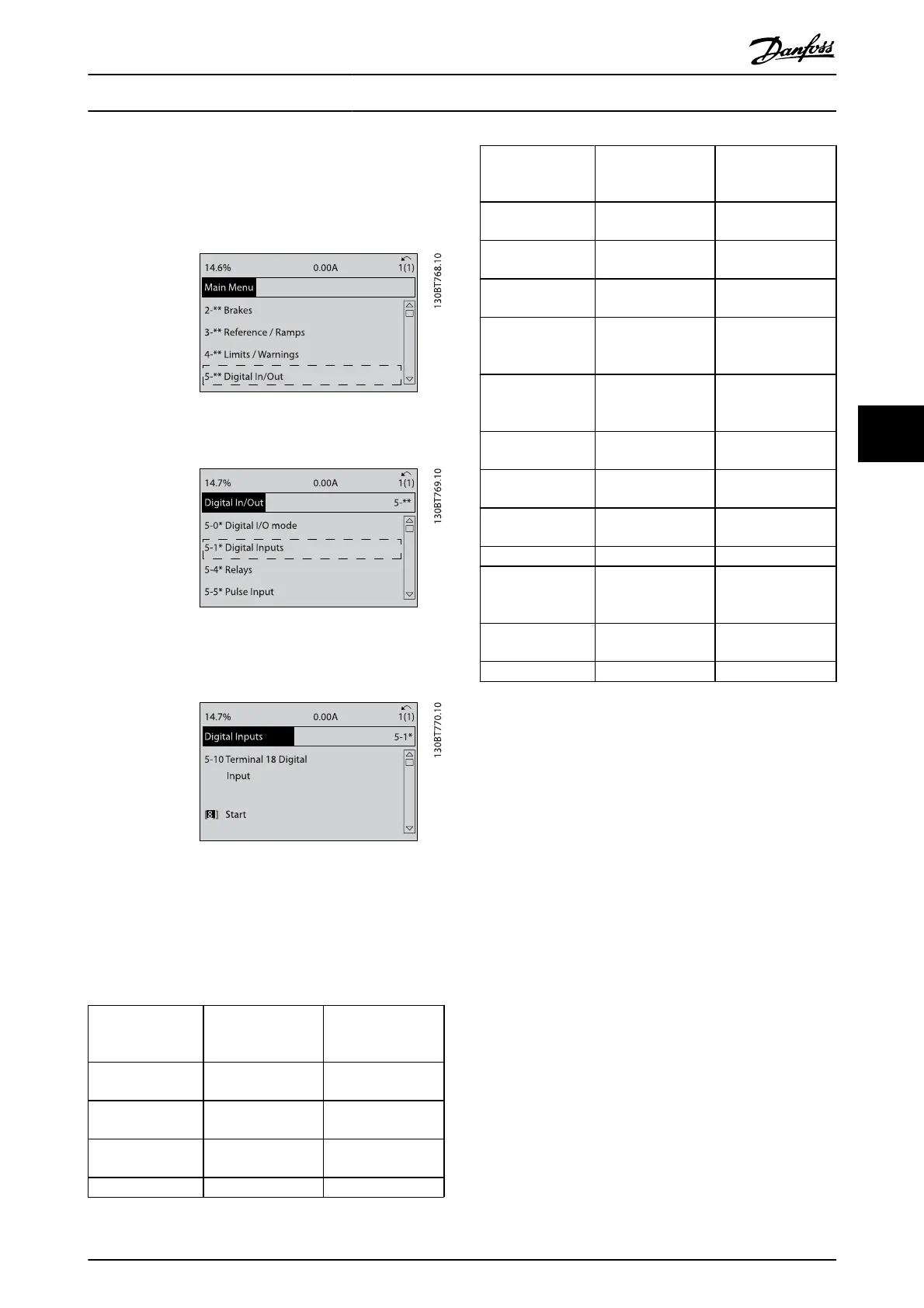

The following example shows accessing Terminal 18 to see
the default setting.
1. Press [Main Menu] twice, scroll to parameter group
5-** Digital In/Out and press [OK].
2. Scroll to parameter group 5-1* Digital Inputs and
press [OK].
3.
Scroll to 5-10 Terminal 18 Digital Input. Press [OK] to
access function choices. The default setting Start is
shown.
5.4 International/North American Default
Parameter Settings
Setting 0-03 Regional Settings to [0]International or [1] North
America changes the default settings for some parameters.
Table 5.1 lists those parameters that are effected.
Parameter International
default parameter
value
North American
default parameter
value
0-03 Regional
Settings
International North America
1-20 Motor Power
[kW]
See Note 1 See Note 1
1-21 Motor Power
[HP]
See Note 2 See Note 2
1-22 Motor Voltage 230V/400V/575V 208V/460V/575V
Parameter International
default parameter
value
North American
default parameter
value
1-23 Motor
Frequency
50Hz 60Hz
3-03 Maximum
Reference
50Hz 60Hz
3-04 Reference
Function
Sum External/Preset
4-13 Motor Speed
High Limit [RPM]
See Note 3 and 5
1500RPM 1800RPM
4-14 Motor Speed
High Limit [Hz]
See Note 4
50Hz 60Hz
4-19 Max Output
Frequency
132Hz 120Hz
4-53 Warning Speed
High
1500RPM 1800RPM
5-12 Terminal 27
Digital Input
Coast inverse External interlock
5-40 Function Relay No operation No alarm
6-15 Terminal 53
High Ref./Feedb.
Value
50 60
6-50 Terminal 42
Output
No operation Speed 4-20mA
14-20 Reset Mode Manual reset Infinite auto reset
Table 5.1 International/North American Default Parameter Settings
Note 1: 1-20 Motor Power [kW] is only visible when
0-03 Regional Settings is set to [0] International.
Note 2: 1-21 Motor Power [HP], is only visible when
0-03 Regional Settings is set to [1] North America.
Note 3: This parameter is only visible when 0-02 Motor Speed
Unit is set to [0] RPM.
Note 4: This parameter is only visible when 0-02 Motor Speed
Unit is set to [1] Hz.
Note 5: The default value depends on the number of motor
poles. For a 4 poled motor the international default value is
1500RPM and for a 2 poled motor 3000RPM. The
corresponding values for North America is 1800 and
3600RPM, respectively.
Changes made to default settings are stored and available
for viewing in the quick menu along with any programming
entered into parameters.
1. Press [Quick Menu].
2. Scroll to Q5 Changes Made and press [OK].
About Frequency Converter P...
VLT
®
AutomationDrive Operating
Instructions
MG.33.AJ.02 - VLT
®
is a registered Danfoss trademark 33
5
5

Danfoss VLT AutomationDrive Specifications

General

Supply Voltage	3 x 200-240 V ±10% 3 x 380-500 V ±10% 3 x 525-600 V ±10%
Enclosure	IP20
Output Power Range	0.25 kW - 1.5 MW
Communication Protocols	Modbus RTU
Protection Features	Overcurrent, Overvoltage, Undervoltage, Short circuit, Ground fault, Motor overload
Ambient Temperature Range	-10°C to +50°C (14°F to 122°F)
