Danfoss VLT FC 100 Design Guide

748
(29.5)
579
(22.8)
176FA276.12
≤105,0°

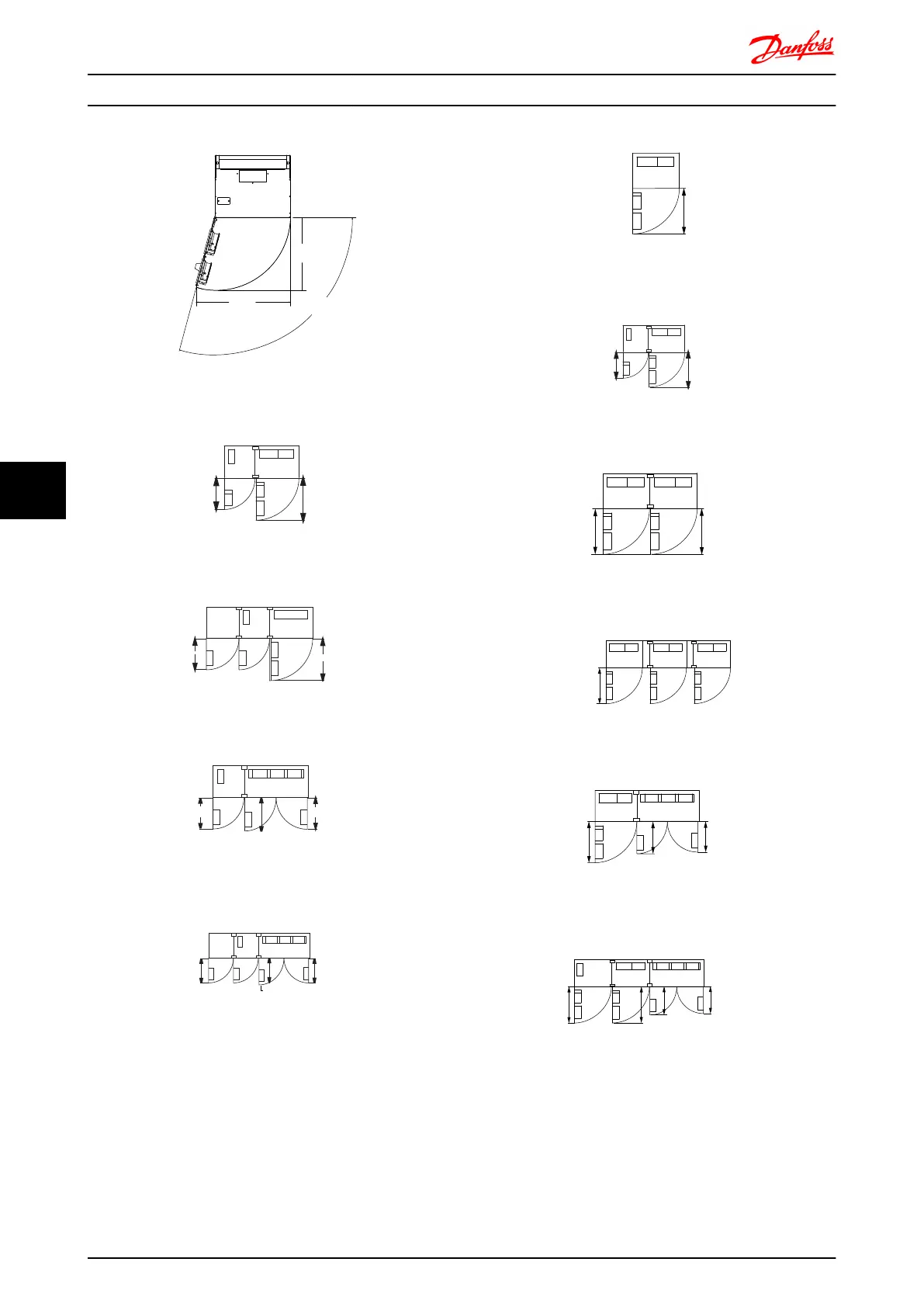

Illustration 7.6 Space in front of IP21/IP54 enclosure type, frame
size E1.
130BB003.13
578
(22.8)
776
(30.6)
Illustration 7.7 Space in front of IP21/IP54 enclosure type, frame
size F1
2X578
[22.8]
776
[30.6]
130BB004.13
Illustration 7.8 Space in front of IP21/IP54 enclosure type, frame
size F3
130BB005.13
624
[24.6]
579
[22.8]
578
[22.8]
Illustration 7.9 Space in front of IP21/IP54 enclosure type, frame
size F2
624
(24.6)
2x579
(22.8)
578
(22.8)
130BB006.10
Illustration 7.10 Space in front of IP21/IP54 enclosure type, frame
size F4
776
(30.6)
130BB531.10
Illustration 7.11 Space in front of IP21/IP54 enclosure type, frame
size F8
130BB003.13
578
(22.8)
776
(30.6)
Illustration 7.12 Space in front of IP21/IP54 enclosure type, frame
size F9
776
(30.6)
776
(30.6)
130BB574.10
Illustration 7.13 Space in front of IP21/IP54 enclosure type, frame
size F10
776
(30.6)
(2x)
130BB575.10
Illustration 7.14 Space in front of IP21/IP54 enclosure type, frame
size F11
624
(24.6)
579
(22.8)
130BB576.10
776
(30.6)
Illustration 7.15 Space in front of IP21/IP54 enclosure type, frame
size F12
624
(24.6)
579
(22.8)
776
(30.6)
776
(30.6)
130BB577.10
Illustration 7.16 Space in front of IP21/IP54 enclosure type, frame
size F13
Mechanical Installation - ... FC 300 Design Guide
134 MG.33.BD.02 - VLT
®
is a registered Danfoss trademark
77
