10 Options and Accessories
Danfoss offers a wide range of options and accessories for
VLT AutomationDrive.
10.1.1 Mounting of Option Modules in
Slot A
Slot A position is dedicated to Fieldbus options. For further
information, see separate operating instructions.
10.1.2 Mounting of Option Modules in
Slot B
The power to the frequency converter must be discon-
nected.
It is strongly recommended to make sure the parameter
data is saved (i.e. by MCT 10 software) before option
modules are inserted/removed from the drive.
•
Remove the LCP (Local Control Panel), the
terminal cover, and the LCP frame from the
frequency converter.
•
Fit the MCB10x option card into slot B.
•
Connect the control cables and relieve the cable
by the enclosed cable strips.
* Remove the knock out in the extended LCP
frame, so that the option will fit under the
extended LCP frame.
•
Fit the extended LCP frame and terminal cover.
•
Fit the LCP or blind cover in the extended LCP
frame.
•
Connect power to the frequency converter.
•
Set up the input/output functions in the
corresponding parameters, as mentioned in
4.5 General Specifications.
LCP
Frame
A
B
D
130BA707.10
XXXN1100
3x380-480V 50/60Hz 14.9A
OUT: 3x0-Uin 0-1000Hz 16.0A 11.1 kVA
CHASIS/IP20 Tamb Max 45C/113F
MADE IN DENMARK
CAUTION:
SEE MANUAL / RCD and high leakage current
VOIR MANUAL / Fransk tekst
WARNING:
Stored charge / “Fransk tekst” (4 min.)
LISTED 76x1 134261
INDUSTRIAL CONTROL EQUIPMENT
SEE MANUAL FOR PREFUSE TUPE IN UL
APPLICATIONS

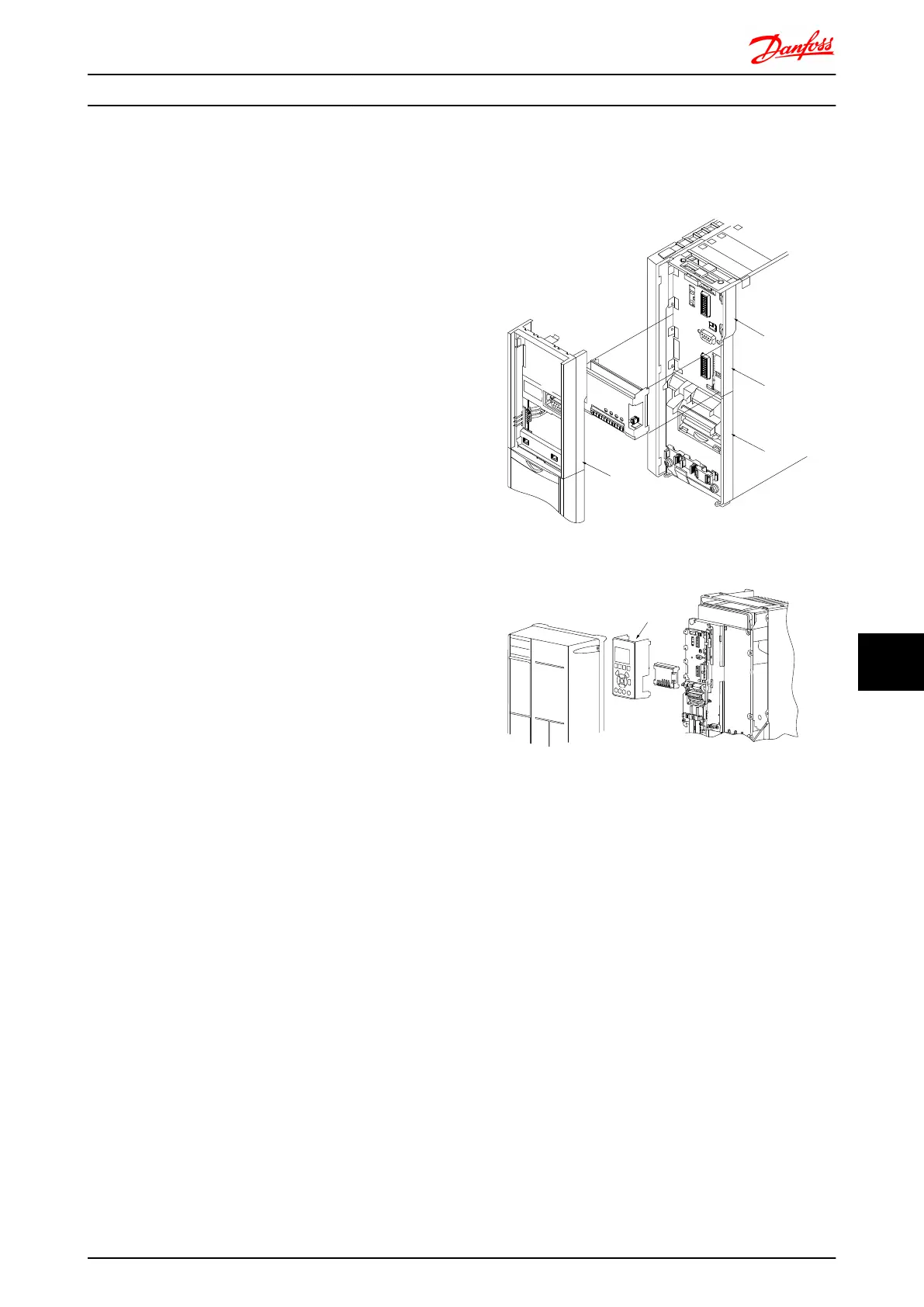

Illustration 10.1 Frame sizes A2, A3 and B3
LCP
Cradle
DC-
DC+
130BA708.10
13
12
18
19
27
28
32
38
2
42
39
53
50
5
61
6
Remove jumper to activate Safe Stop
9Ø
9Ø
Illustration 10.2 Frame sizes A5, B1, B2, B4, C1, C2, C3 and C4
Options and Accessories FC 300 Design Guide
MG.33.BD.02 - VLT
®
is a registered Danfoss trademark 235
10
10
