10.12 Mounting Bracket for Frame Size A5, B1, B2, C1 and C2
Mounting Bracket for Frame Size A5, B1,B2, C1 and C2
Step 1 Step 2

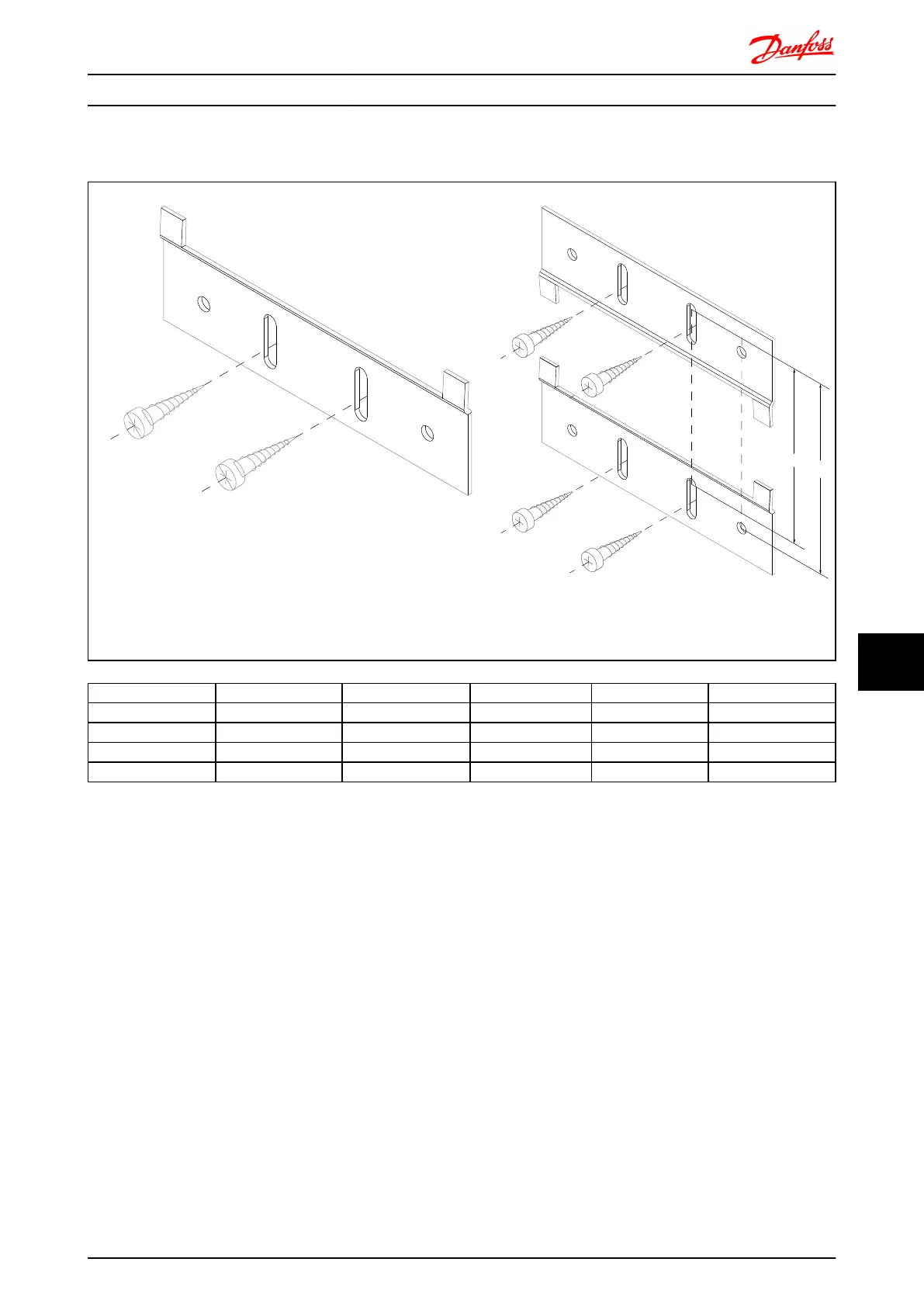

Position the lower bracket and mount it with screws. Do not tighten the
screws completely since this will make it difficult to mount the frequency
converter.
Measure distance A or B, and position the upper bracket, but
do not tighten it. See dimensions below
Frame size A5 B1 B2 B3 B4
IP 55/66 21/55/66 21/55/66 21/55/66 21/55/66
A [mm] 480 535 705 730 820
B [mm] 495 550 720 745 835
Ordering number 130B1080 130B1081 130B1082 130B1083 130B1084
Options and Accessories FC 300 Design Guide
MG.33.BD.02 - VLT
®
is a registered Danfoss trademark 251
