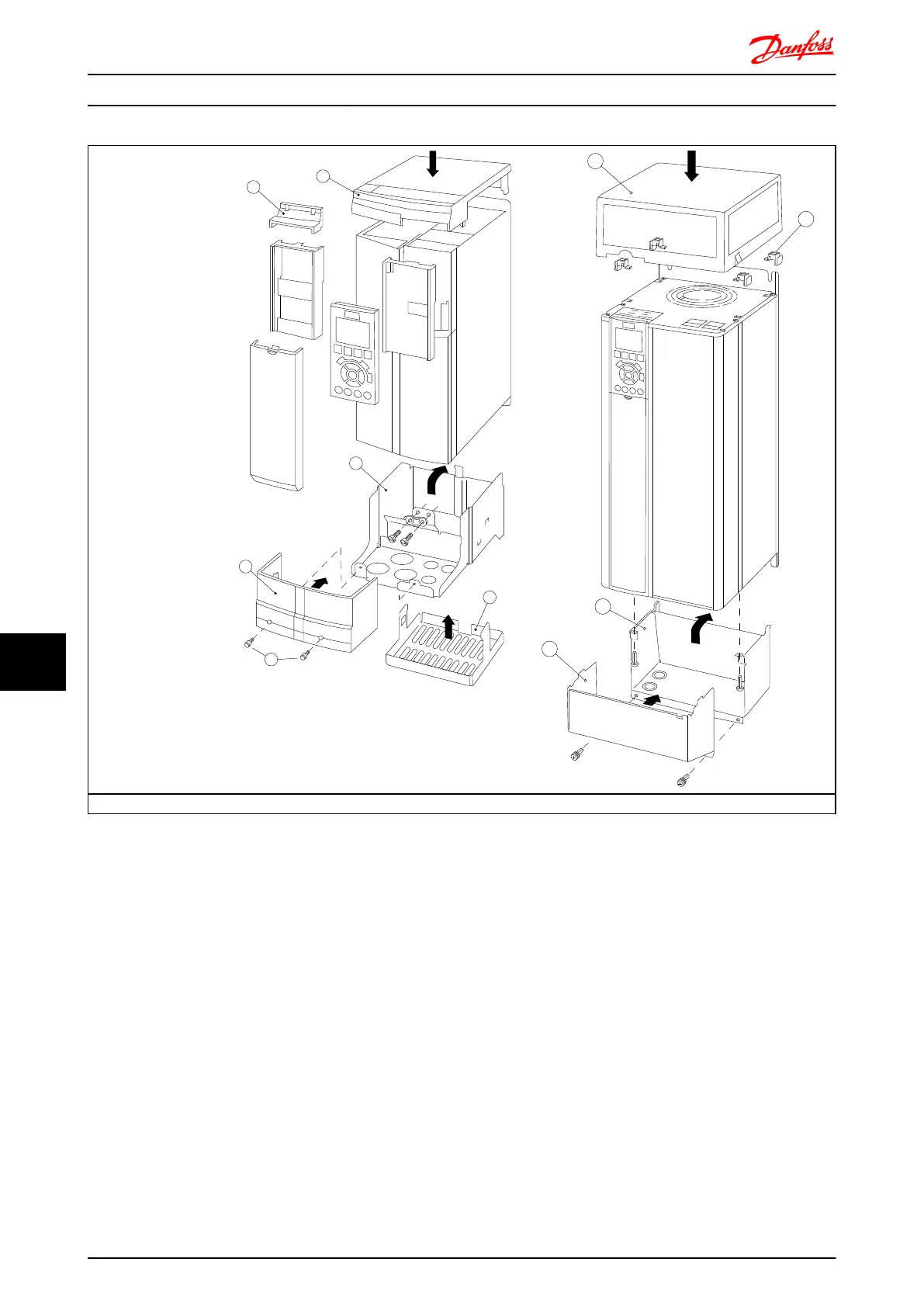

A Top cover
B Brim
C Base part
D Base cover
E Screw(s)
F - Fan cover
G - Top clip
When option module A
and/or option module B
is/are used, the brim (B)
must be fitted to the top
cover (A).
E
F
D
C
B
A
VL
Automation Drive
130BT620.12
130BT621.12
D
C
VLT
®
AutomationDrive
A
G
B3 Enclosure B4 - C3 - C4 Enclosure
NOTE
Side-by-side installation is not possible when using the IP 21/ IP 4X/ TYPE 1 Enclosure Kit
Options and Accessories FC 300 Design Guide
250 MG.33.BD.02 - VLT
®
