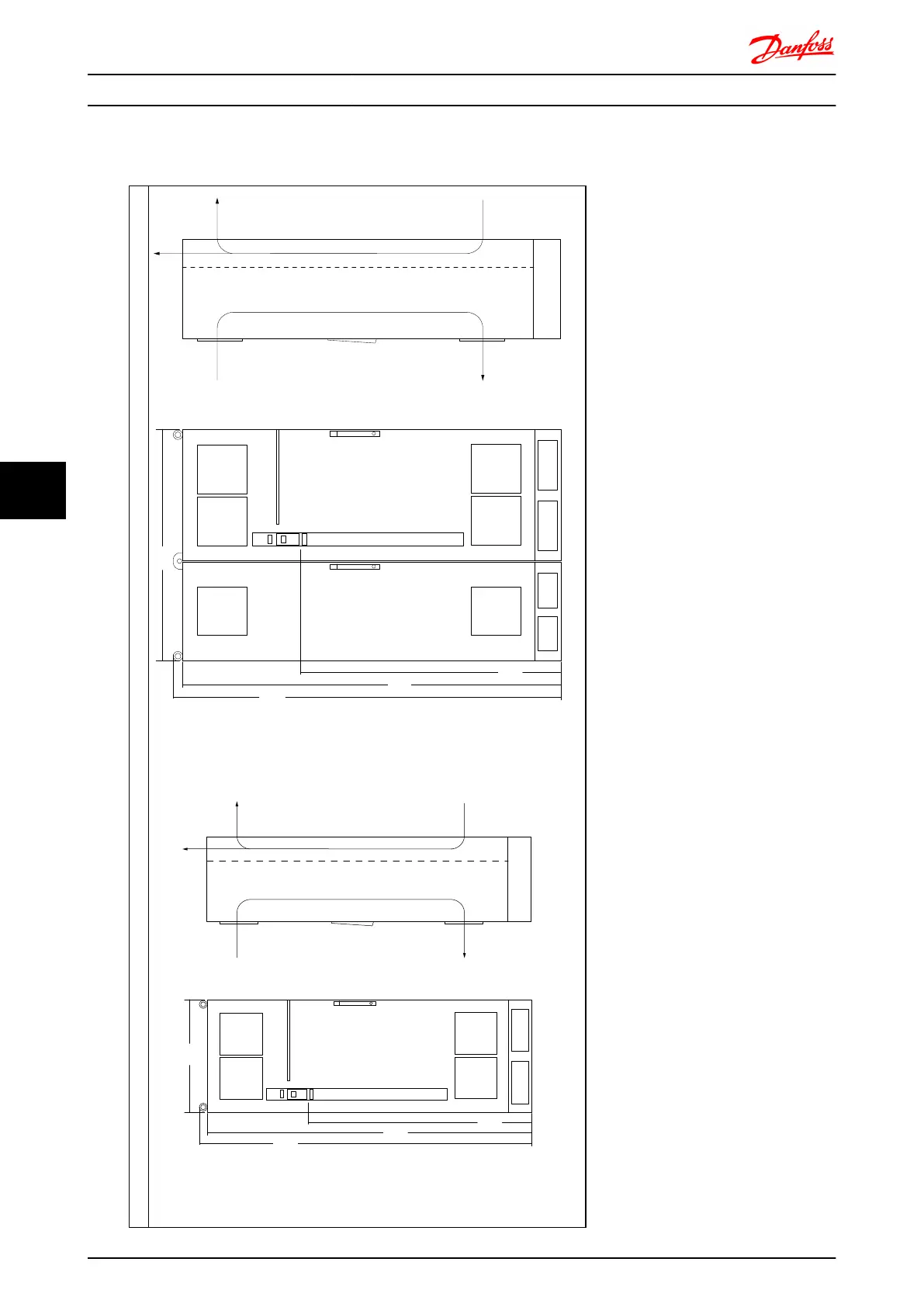

7.1.6 Mechanical Dimensions, 12-Pulse Units
F8 IP21/54 - NEMA 1/12 F9 IP21/54 - NEMA 1/12
130BB754.10
800
607
IP/21 NEMA 1
IP/54
NEMA 12
1400 m3/Hr 824 CFM
618
CFM
1050
m3/Hr
1160 CFM 1970 m3/Hr
2280
2205
1497
130BB568.10
1400
607
IP/21 NEMA 1
IP/54
NEMA 12
2100 m3/Hr 1236 CFM
927
CFM
1575
m3/Hr
1160 CFM 1970 m3/Hr
2280
2205
1497
All dimensions in mm
