Danfoss VLT FC 100 Design Guide

10.3 Encoder Option MCB 102
The encoder module can be used as feedback source for
closed loop Flux control (1-02 Flux Motor Feedback Source)
as well as closed loop speed control (7-00 Speed PID
Feedback Source). Configure encoder option in parameter
group 17-xx
Used for
•
VVC
plus
closed loop
•
Flux Vector Speed control
•
Flux Vector Torque control
•
Permanent magnet motor
Supported encoder types:
Incremental encoder: 5 V TTL type, RS422, max. frequency:
410kHz
Incremental encoder: 1Vpp, sine-cosine
Hiperface® Encoder: Absolute and Sine-Cosine (Stegmann/
SICK)
EnDat encoder: Absolute and Sine-Cosine (Heidenhain)
Supports version 2.1
SSI encoder: Absolute
Encoder monitor:
The 4 encoder channels (A, B, Z, and D) are monitored,
open and short circuit can be detected. There is a green
LED for each channel which lights up when the channel is
OK.
NOTE
The LEDs are only visible when removing the LCP. Reaction
in case of an encoder error can be selected in
17-61 Feedback Signal Monitoring: None, Warning or Trip.
When the encoder option kit is ordered separately the kit
includes:
•
Encoder Option MCB 102
•
Enlarged LCP fixture and enlarged terminal cover
The encoder option does not support FC 302 frequency
converters manufactured before week 50/2004.
Min. software version: 2.03 (15-43 Software Version)
Connector
Designation
X31
Incremental
Encoder (please
refer to Graphic
A)
SinCos Encoder
Hiperface® (please
refer to Graphic B)
EnDat Encoder SSI Encoder Description
1 NC 24V* 24V Output (21-25V, I
max
:125mA)
2 NC 8 Vcc 8V Output (7-12V, I
max
: 200mA)
3 5 VCC 5 Vcc 5V* 5V Output (5V ± 5%, I
max
: 200mA)
4 GND GND GND GND
5 A input +COS +COS A input
6 A inv input REFCOS REFCOS A inv input
7 B input +SIN +SIN B input
8 B inv input REFSIN REFSIN B inv input
9 Z input +Data RS-485 Clock out Clock out Z input OR +Data RS-485
10 Z inv input -Data RS-485 Clock out inv. Clock out inv. Z input OR -Data RS-485
11 NC NC Data in Data in Future use
12 NC NC Data in inv. Data in inv. Future use
Max. 5V on X31.5-12
* Supply for encoder: see data on encoder

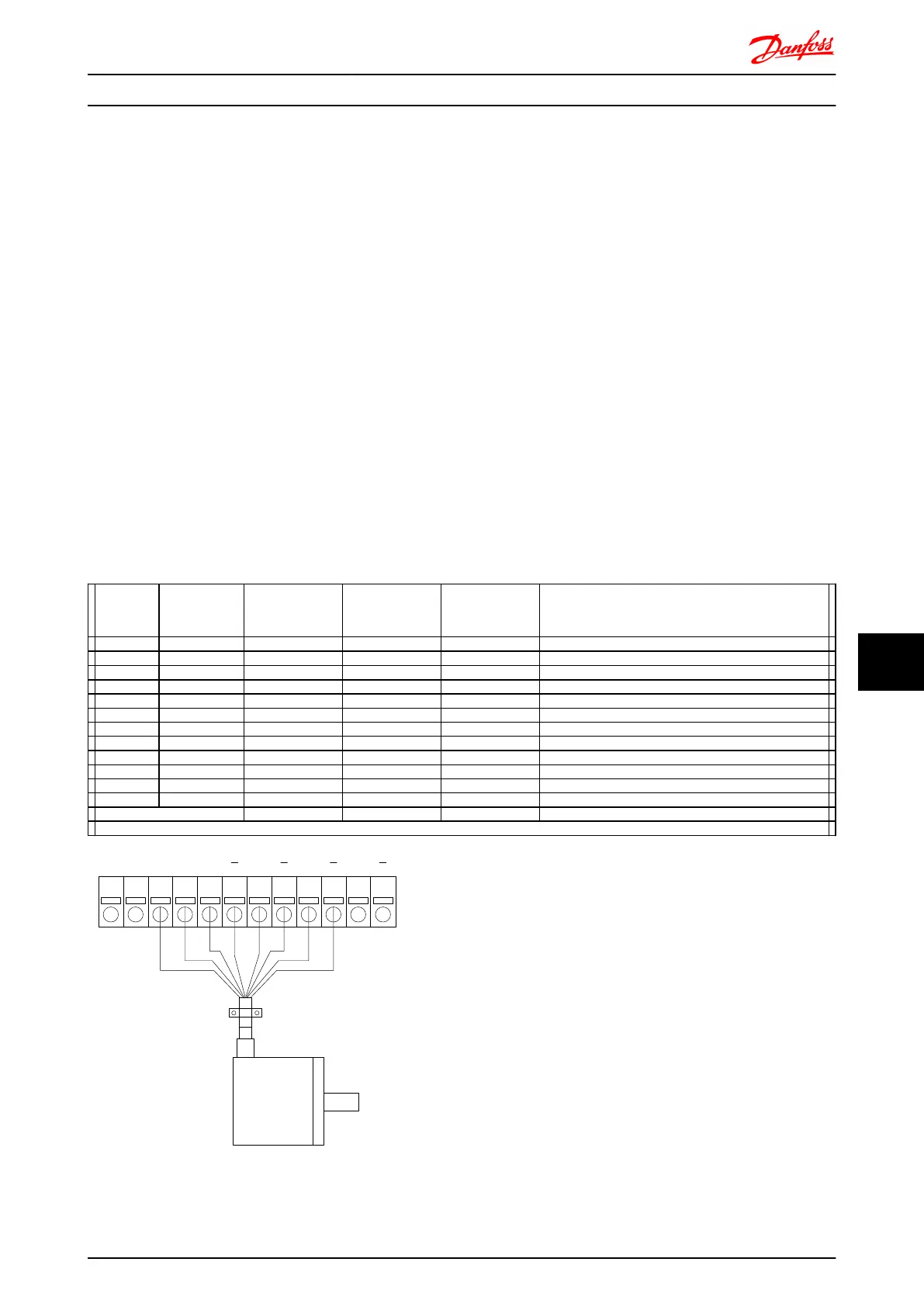

5V incremental encoder
1
2 3 12
130BA163.10
754 6 8 9 10 11
24V
8V 5V GND A A B B Z Z D D
Max. cable length 150 m.
Options and Accessories FC 300 Design Guide
MG.33.BD.02 - VLT
®
is a registered Danfoss trademark 239
10
10
