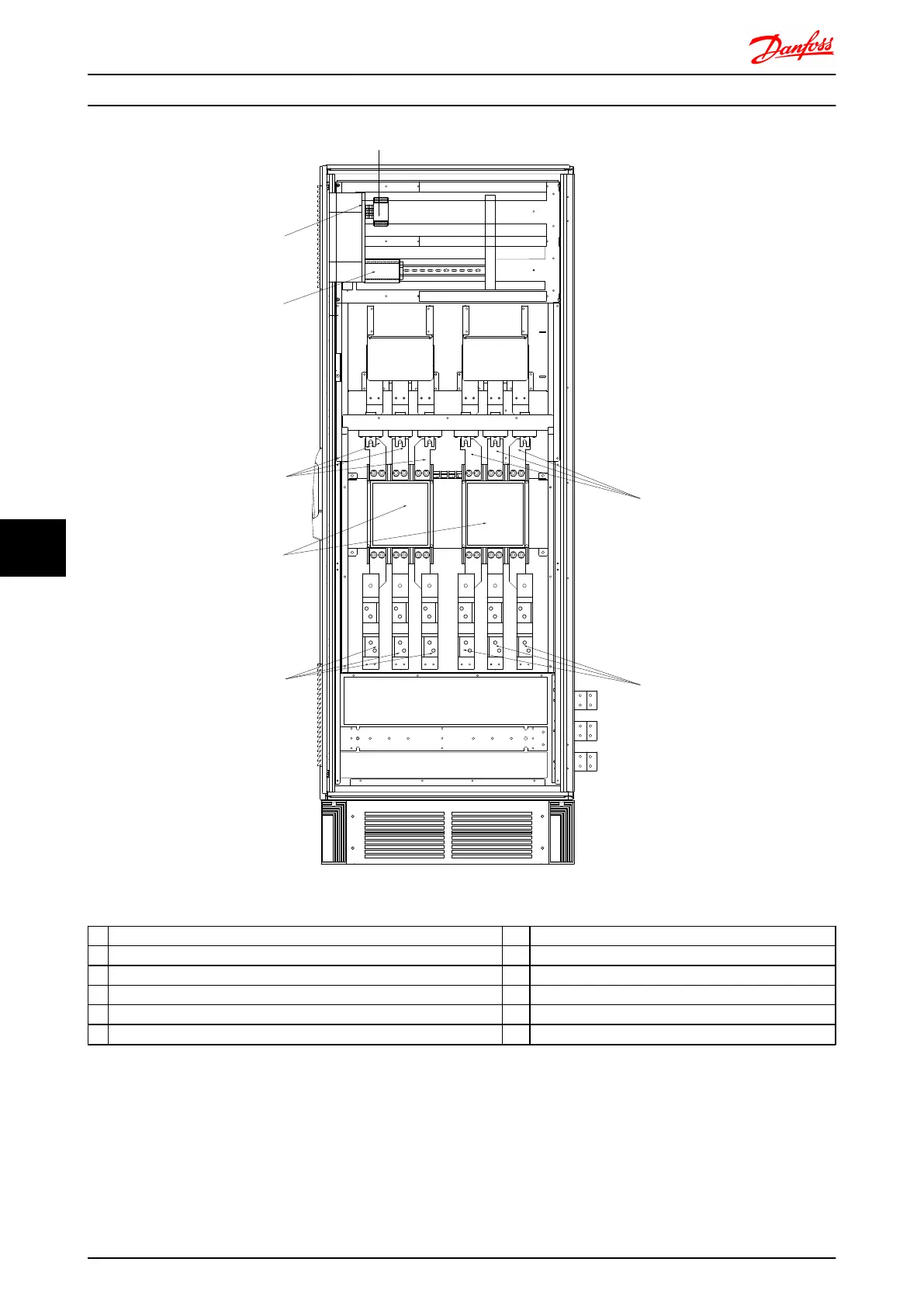

Illustration 8.49 Options Cabinet, frame size F11 and F13
1)
Pilz Relay Terminal 4) Safety Relay Coil Fuse with Pilz Relay
2) RCD or IRM Terminal See fuse tables for part numbers
3) Mains/6 phase 5) Line Fuses, (6 pieces)
R1 S1 T1 R2 S2 T2 See fuse tables for part numbers
91-1 92-1 93-1 91-2 92-2 93-2 6) 2 x 3-phase manual disconnect
L1-1 L2-1 L3-1 L1-2 L2-2 L3-2
Electrical Installation FC 300 Design Guide
