Danfoss VLT FC 100 Design Guide

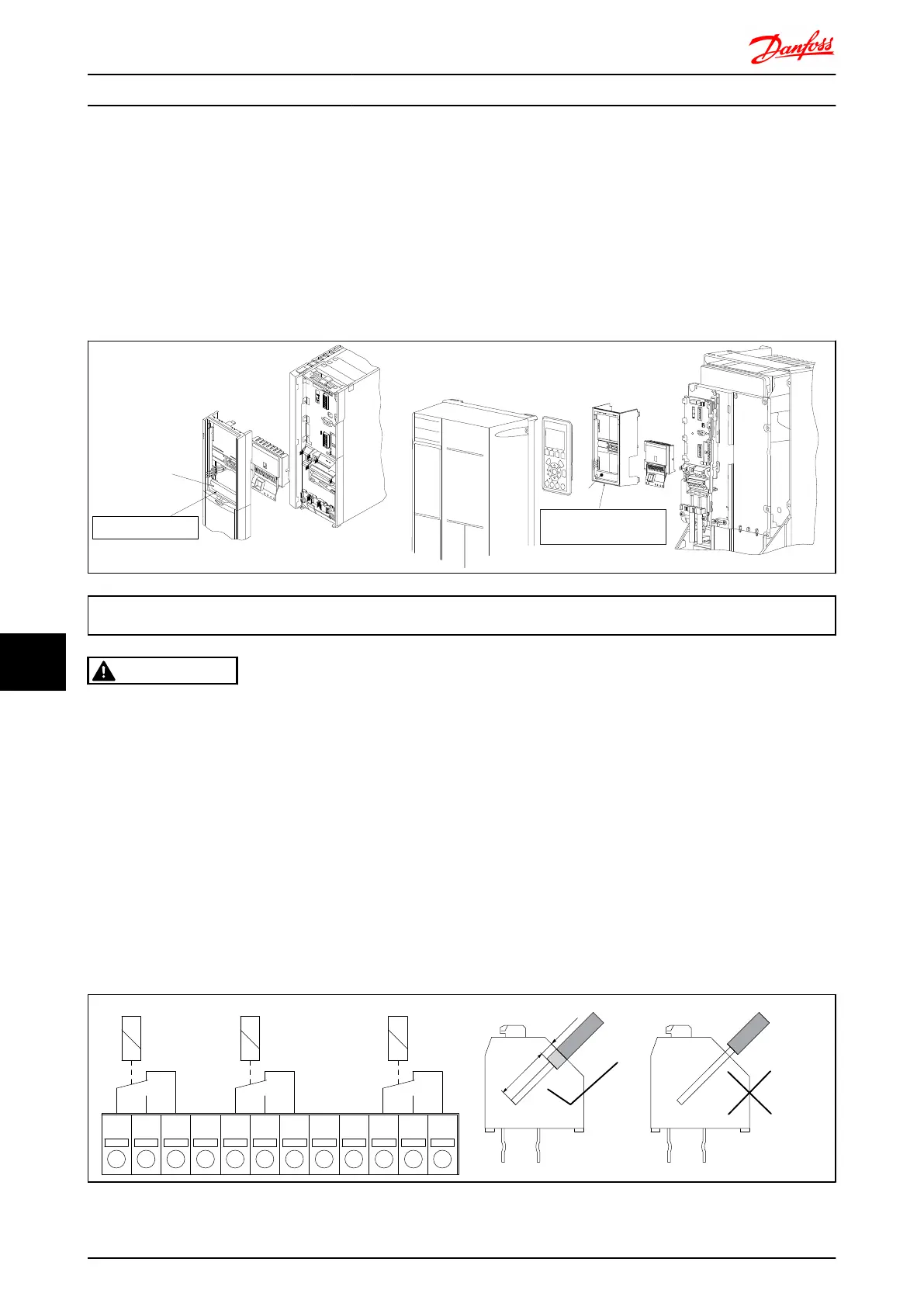

When the relay option kit is ordered separately the kit includes:
•
Relay Module MCB 105
•
Enlarged LCP fixture and enlarged terminal cover
•
Label for covering access to switches S201, S202 and S801
•
Cable strips for fastening cables to relay module
The relay option does not support FC 302 frequency
converters manufactured before week 50/2004.
Min. software version: 2.03 (15-43 Software Version).
130BA709.10
1
LABEL
DISMOUNT RELAY CARD TO ACCESS RS485
TERMINATION (S801) OR CURRENT/VOLTAGE
SWITCHES (S201, S202)
Remove jumper to activate Safe Stop
12
13
18
19
27
29
33
32
20
39
42
50
53
54
61 68
CAUTION:
SEE MANUAL / RCD and high leakage current
VOIR MANUAL / Fransk tekst
WARNING:
Stored charge / “Fransk tekst” (4 min.)
LISTED 76x1 134261
INDUSTRIAL CONTROL EQUIPMENT
SEE MANUAL FOR PREFUSE TUPE IN UL
APPLICATIONS
T/C : CIAXXXPT5B20BR1DBF00A00
P/N : XXXN1100 S/N: 012815G432
IN: 3x380-480V 50/60Hz 14.9A
OUT: 3x0-Uin 0-1000Hz 16.0A 11.1 kVA
CHASIS/IP20 Tamb Max 45C/113F
MADE IN DENMARK
9Ø
9Ø
Ø6
130BA710.10
1
DISMOUNT RELAY CARD TO ACCESS RS485
TERMINATION (S801) OR CURRENT/VOLTAGE
SWITCHES (S201, S202)
LABEL
Remove jumper to activate Safe Stop
13
12
18
19
27
32
38
2
28
42
39
53
50
5
61
6
9Ø
9Ø
DC-
DC+
A2-A3-B3 A5-B1-B2-B4-C1-C2-C3-C4
1)
IMPORTANT ! The label MUST be placed on the LCP frame as shown (UL approved).
WARNING
Warning Dual supply
How to add the MCB 105 option:
•
The power to the frequency converter must be
disconnected.
•
The power to the live part connections on relay
terminals must be disconnected.
•
Remove the LCP, the terminal cover and the LCP
fixture from the frequency converter.
•
Fit the MCB 105 option in slot B.
•
Connect the control cables and fasten the cables
with the enclosed cable strips.
•
Make sure the length of the stripped wire is
correct (see the following drawing).
•
Do not mix live parts (high voltage) with control
signals (PELV).
•
Fit the enlarged LCP fixture and enlarged
terminal cover.
•
Replace the LCP.
•
Connect power to the frequency converter.
•
Select the relay functions in 5-40 Function Relay
[6-8], 5-41 On Delay, Relay [6-8] and 5-42 Off
Delay, Relay [6-8].
NOTE
Array [6] is relay 7, array [7] is relay 8, and array [8] is relay
9
Relay 7
NC NCNC
Relay 9Relay 8
1 2 3 12
130BA162.10
754 6 8 9 10 11
130BA177.10
8-9mm
2mm
Options and Accessories FC 300 Design Guide
242 MG.33.BD.02 - VLT
®
is a registered Danfoss trademark
10
10
