Danfoss VLT FC 103 Instruction Manual

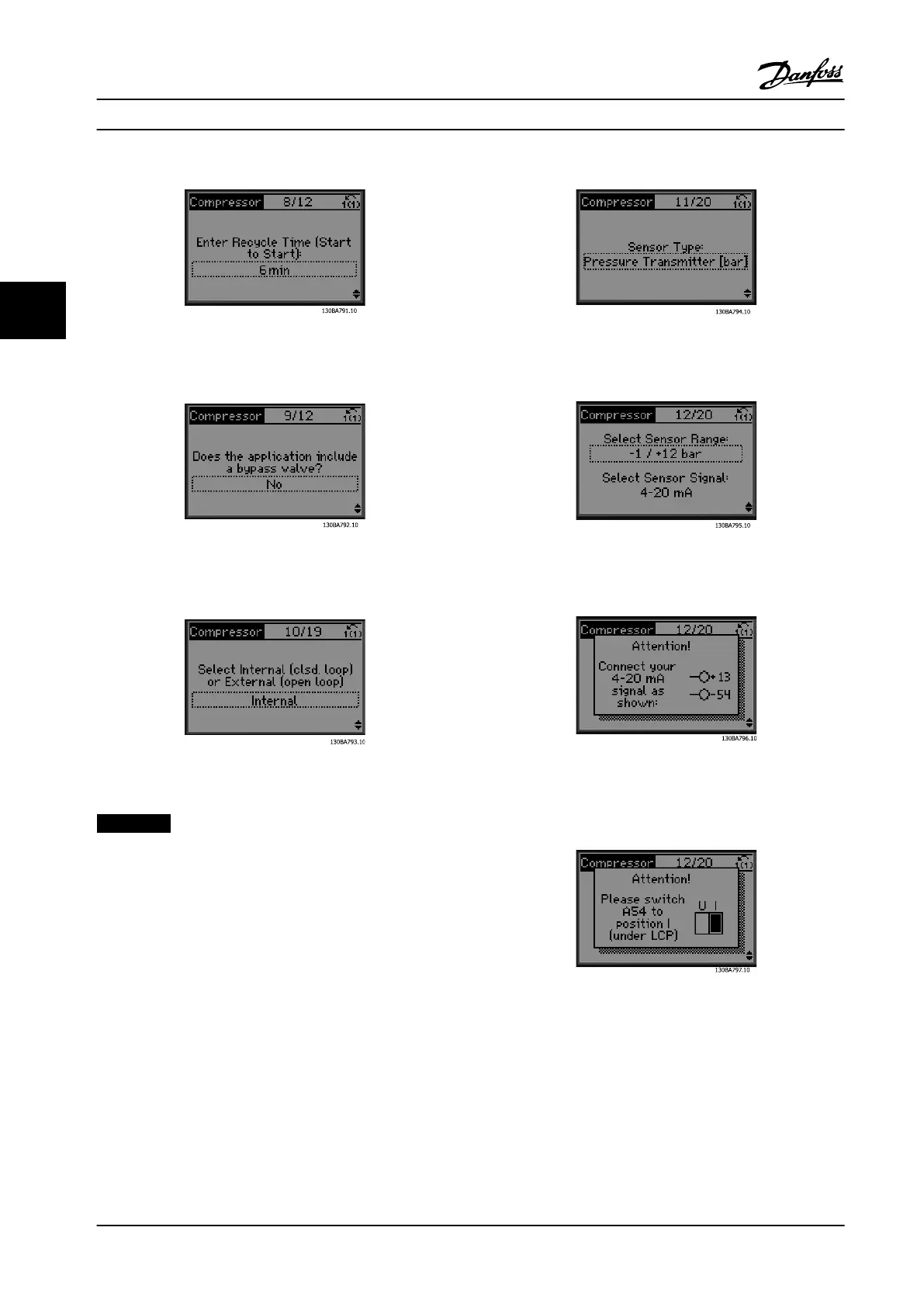

Figure 3.8 Min. Time between Two Starts
Figure 3.9 Choose with/without Bypass Valve
Figure 3.10 Select Open-loop or Closed-loop
NOTICE!
Internal/Closed-loop: The FC 103 will control the
application directly using the internal PID control within
the adjustable frequency drive and needs an input from
an external input such as a temperature or other sensor
which is wired directly into the adjustable frequency
drive and controls from the sensor signal.
External/Open-loop: The FC 103 takes its control signal
from another controller (such as a pack controller) which
gives the adjustable frequency drive, e.g., 0–10 V, 4–20
mA or FC 103 Lon. The adjustable frequency drive will
change its speed depending upon this reference signal.
Figure 3.11 Select Sensor Type
Figure 3.12 Settings for Sensor
Figure 3.13 Info: 4–20 mA Feedback Chosen -
Connect Accordingly
Figure 3.14 Info: Set Switch Accordingly
Start-up and Functional Tes... Instruction Manual
34 Danfoss A/S © Rev. 2014-02-10 All rights reserved. MG16E222
33
