Tally Dascom 5130P
58

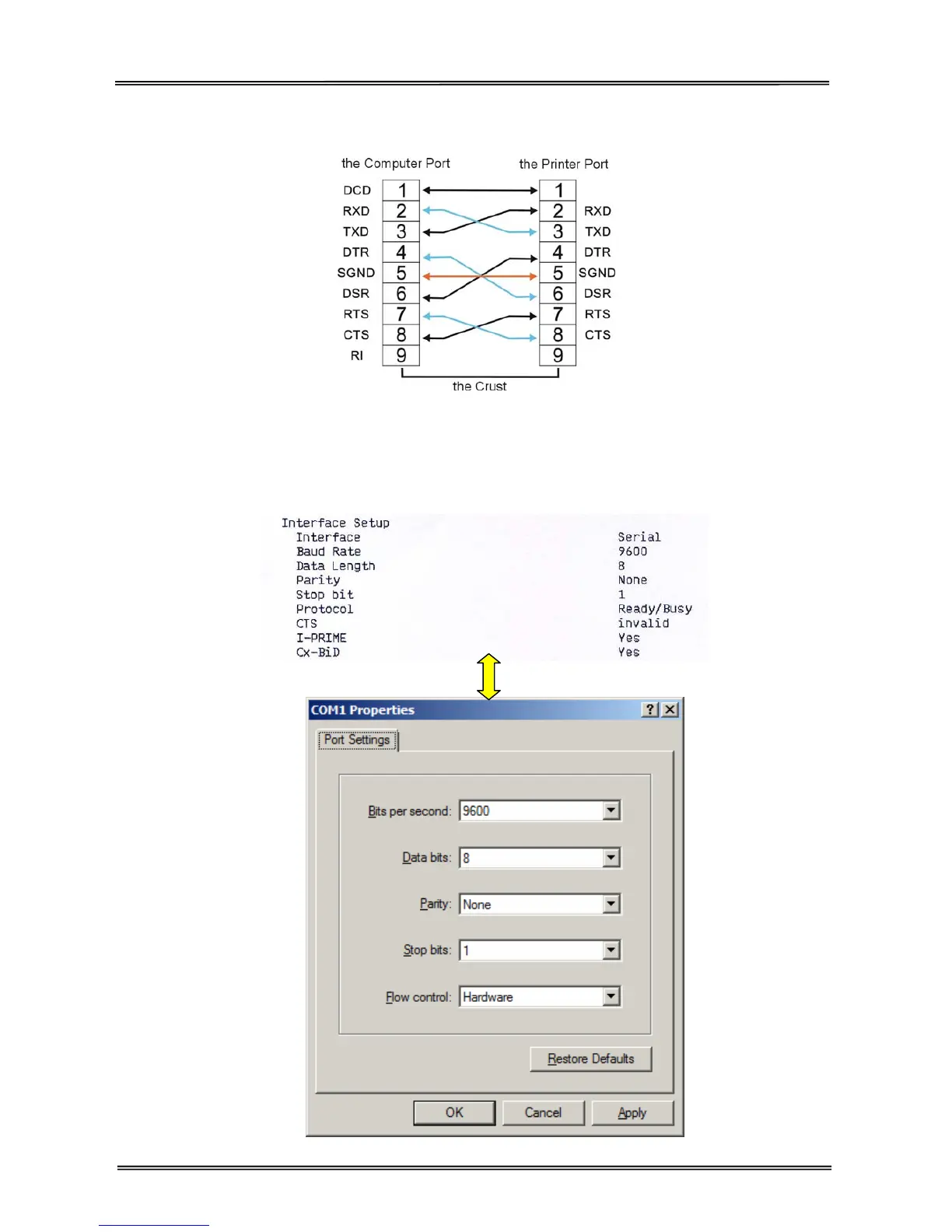

Serial interface wiring diagram
Note:
1. The serial cable length should not exceed 15 meters.
2. Make sure the “Interface Setup” selects serial interface and the settings are the same as PC
communication port settings. Shown as below:
