Chapter 2. DM4001 Chassis
2.1. Overview
The DM4001 chassis is compatible with all interface boards of the DM4000 series, allowing a Stand
Alone versions of all Interface Boards.
Its Backplane interface allow Non-blocking Wire Speed data of all Interface Boards connected.
Each interface Board has temperature sensors allowing DM4001 chassis electronic fan control to manage
fan speed increasing equipment reliability and minimizing fan noise.

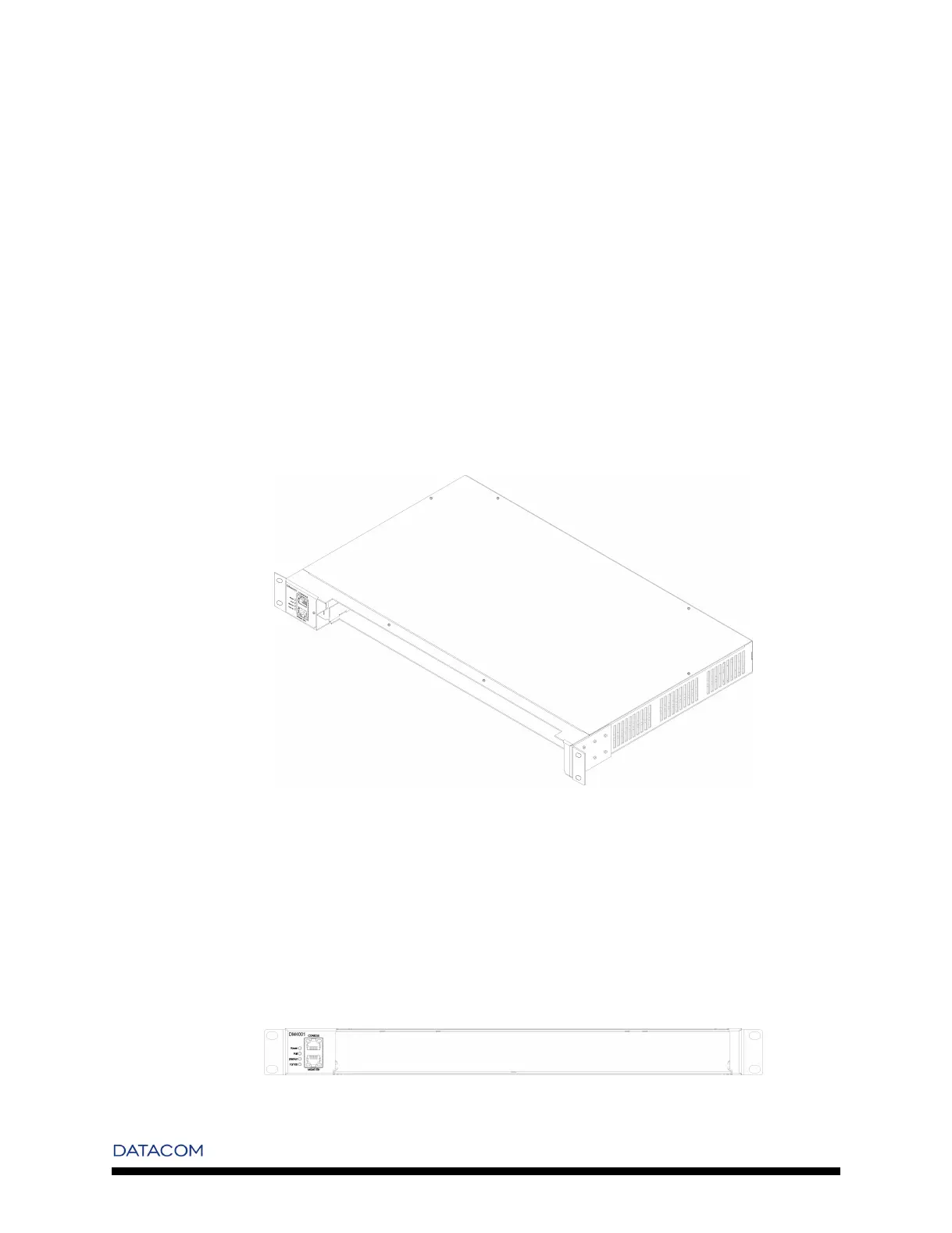

Figure 2-1. DM4001 Chassis
2.2. Front Panel Description
The Front Panel of the DM4001 chassis has a RS232 console port and Ethernet outband management
interface and Status Leds.
Figure 2-2. DM4001 Chassis - Front Panel
